AE95-BEPEU (1987)
Toyota Sprinter
Production
Oct 1987
-
May 1989
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )4AF

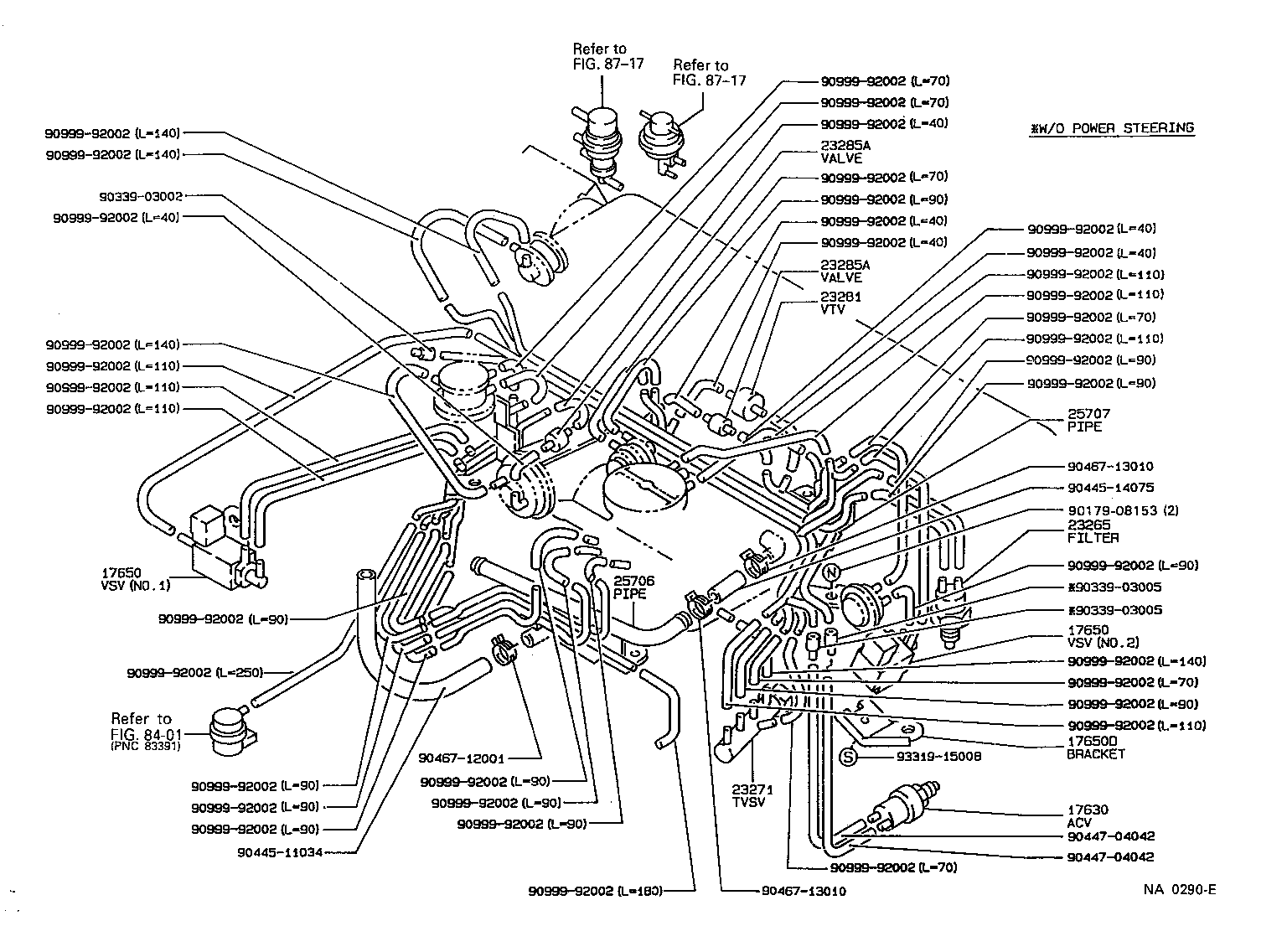

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
4AF,5AF..AE91,95..G,L,LX,MX,SE |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12026 |
4AF,5AF..AE91,95 NO.1 |
1 | ||
| 90910-12055 |
4AF,5AF..AE91,95 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12026 |
4AF,5AF..AE91,95 NO.1 |
1 | ||
| 90910-12055 |
4AF,5AF..AE91,95 NO.2 |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-15010 |
4AF,5AF..AE91,95 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4AF..AE95 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02082 |
4AF,5AF..AE91,95 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01095 |
4AF..AE95..4FC ｱﾘ(ｴｱｺﾝ) |
2 | ||
| 90925-01101 |
4AF..AE95 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AF,5AF..AE91,95 |
2 | ||
| 90917-10049 |
4AF..AE95 NO.1 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AF,5AF..AE91,95 |
2 | ||
| 90917-10049 |
4AF..AE95 NO.1 |
2 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16340 |
4AF..AE95 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16120 |
4AF..AE95 |
1 | ||
| 25707-16121 |
4AF..AE95 |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90339-03005 | ||||
| 90445-11034 | ||||
| 90445-14075 | ||||
| 90447-04042 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 90999-92002 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8717 | ||||
