AE95-BEPEU (1987)

Toyota Sprinter

Production Oct 1987 - May 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )4AF#

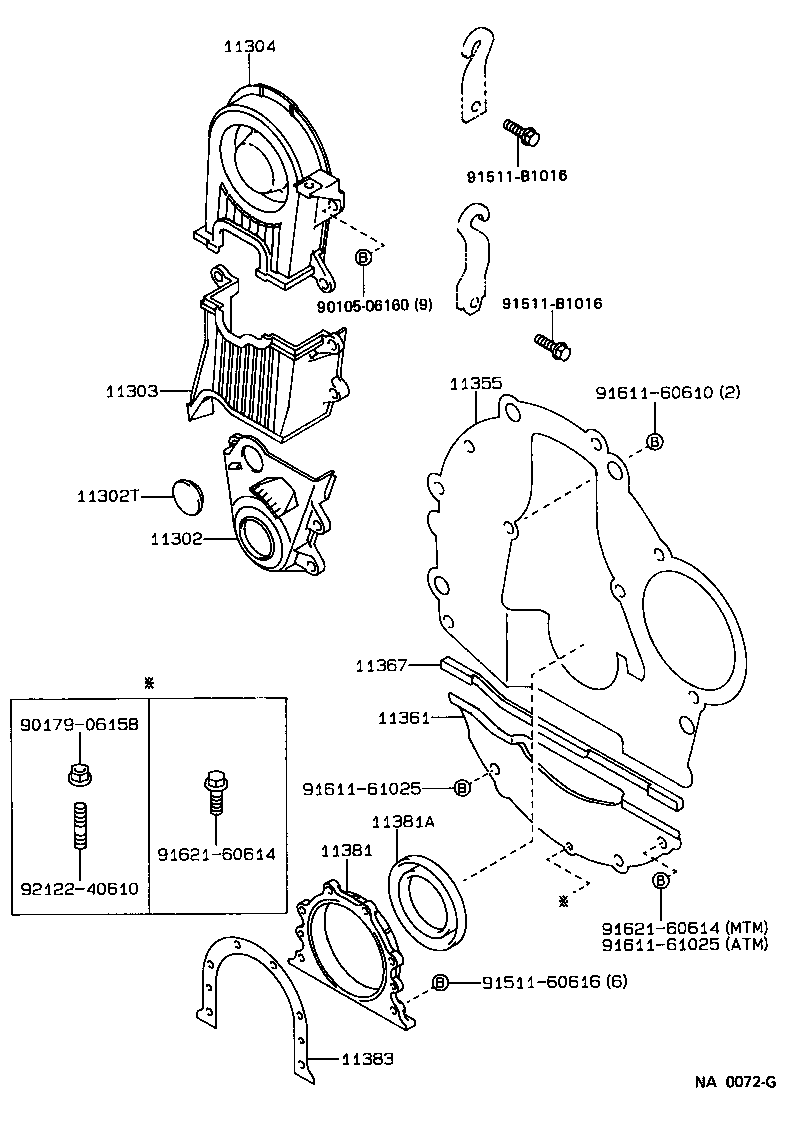

Click highlighted areas on diagram

diagram 11302 11302T 11303 11304 11355 11361 11367 11381 11381A 11383 9010506160 9017906158 9151160616 91511B1016 91511B1016 9161160610 9161161025 9161161025 9162160614 9162160614 9212240610
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-15040

4AF,5AF#..AE91,95

 1
11302T - PLUG, HOLE
90950-01391

4AF#,5AF#..AE91,95

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-15040

4AF#,5AF#..AE91,95

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-15020

4AF#,5AF#..AE91,95

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-16040

4AGE,4AF#..AE92,95

 1
11367 - GASKET, FLYWHEEL HOUSING UNDER
11367-15030

4AGE,4AF#..AE92,95

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AGE,4AF#,5AF#..AE9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4AGE,4AF#,5AF#..AE9#

 1
90311-70004

4AGE,4AF,5AF..AE9#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15010

4AGE,4AF#,5AF#..AE9#

 1
Common parts
90105-06160
90179-06158
91511-60616
91511-B1016
91611-60610
91611-61025
91621-60614
92122-40610
