AE95-BEMDU (1987)
Toyota Sprinter
Production
Oct 1987
-
May 1989
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

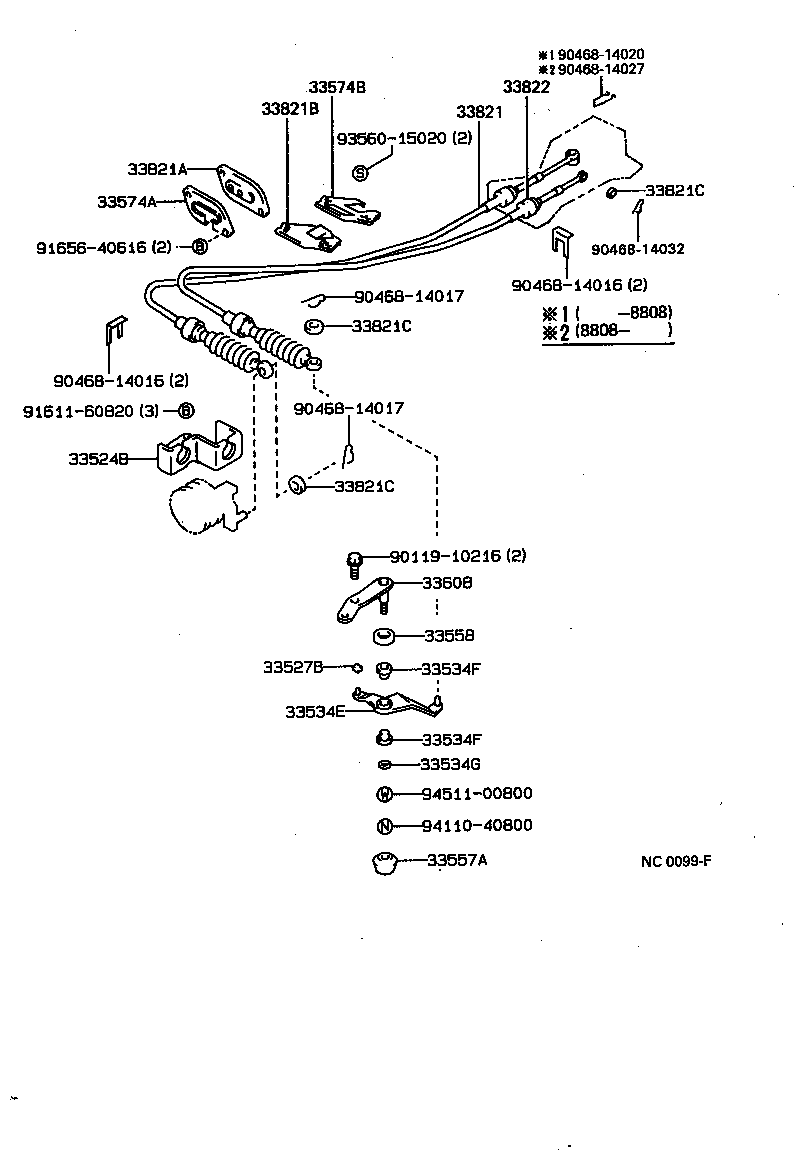

ILLUST NO. 2 OF 2(8710- )AE95,CE95..5F
Click highlighted areas on diagram
E55F5,E57F5,E59F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
AE95,CE9#..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-12030 |
AE9#,EE90..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE9#,CE9#,EE9#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE9#,CE9#,EE9#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-12010 |
AE9#,EE90..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12080 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE95..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-12020 |
AE9#,EE90..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12281 |
AE95..5F |
1 | ||
| 33821-12282 |
AE95..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE95..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AE9#,CE9#,EE9#..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
AE9#,CE9#,EE9#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AE9#,CE9#,EE9#..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
AE9#,CE9#,EE9#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
AE9#,CE9#,EE9#..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
AE9#,CE9#,EE9#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12131 |
AE95..5F |
1 | ||
| 33822-12130 |
AE95..5F |
1 | ||
| Common parts | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
