AE92-BLPVF (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE92

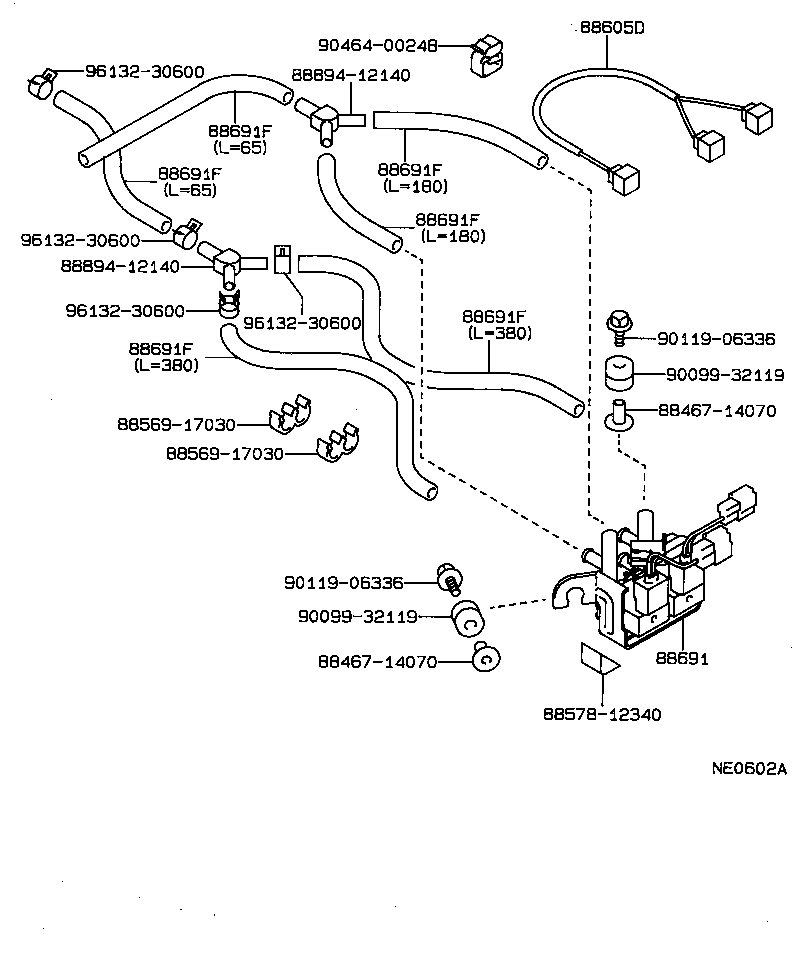

Click highlighted areas on diagram

AIR CONDITIONER IDLE UP

diagram 8846714070 8846714070 8856917030 8856917030 8857812340 88605D 88691 88691F 88691F 88691F 88691F 88691F 88691F 8889412140 8889412140 9009932119 9009932119 9011906336 9011906336 9046400248 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
88605D - WIRE, AIR CONDITIONER
88605-1A700

AE92

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12450

AE92

 1
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
88689-12140

AE92

長さ=380

 2
88689-20120

AE92

 2
88689-12130

AE92

長さ=180

 2
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
88689-12140

AE92

長さ=380

 2
88689-20120

AE92

 2
88689-12130

AE92

長さ=180

 2
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
88689-12140

AE92

長さ=380

 2
88689-20120

AE92

 2
88689-12130

AE92

長さ=180

 2
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
88689-12140

AE92

長さ=380

 2
88689-20120

AE92

 2
88689-12130

AE92

長さ=180

 2
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
88689-12140

AE92

長さ=380

 2
88689-20120

AE92

 2
88689-12130

AE92

長さ=180

 2
88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4
88689-12140

AE92

長さ=380

 2
88689-20120

AE92

 2
88689-12130

AE92

長さ=180

 2
Common parts
88467-14070
88569-17030
88578-12340
88894-12140
90099-32119
90119-06336
90464-00248
96132-30600
