AE92-BLPVF (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8705- )AE92

Click highlighted areas on diagram

diagram 6777116010 71011S 71012S 71071S 71072S 71073S 71074S 71158A 71158A 71158A 71158A 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71567 71567 71630S 71640S 71705 71706 71910A 71910A 71931 71931 71931 71931 71991 71991 71991 71991 72457C 72750D 72791 9046718071 9046718071 9046718071 9046718071 9052001002 9052001002 9165540620 9354014014 9354014014 9354014014 9354014014 9354014014 9354014014 9354014014 9354014014
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-12280

AE91,92,CE90,96,EE9#

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-12280

AE91,92,CE90,96,EE9#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-1H14003

AE92

SADOW GRAY,TRIM1#

 1
71071-1H14103

AE92

SHADOW GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-1H21003

AE92

SADOW GRAY,TRIM1#

 1
71071-1H21103

AE92

SHADOW GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-1H20003

AE92

SHADOW GRAY,TRIM1#

 1
71073-1H20103

AE92

SHADOW GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-1E16003

AE92

SHADOW GRAY,TRIM1#

 1
71074-1E16103

AE92

SHADOW GRAY,TRIM1#

 1
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92

 4
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92

 4
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92

 4
71158A - FRAME, FRONT SEAT BACK, UPPER OUTER
71158-12090

AE92

 4
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-1H48003

AE92

***,SADOW GRAY,TRIM1#

 1
71410-1H48103

AE92

***,SHADOW GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-1H49003

AE92

***,SADOW GRAY,TRIM1#

 1
71410-1H49103

AE92

***,SHADOW GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-1H51003

AE92

***,SHADOW GRAY,TRIM1#

 1
71430-1H51103

AE92

***,SHADOW GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-1H45003

AE92

***,SHADOW GRAY,TRIM1#

 1
71440-1H45103

AE92

***,SHADOW GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-12580

AE91,92..G,GT,XI,XS

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-12580

AE91,92..G,GT,XI,XS

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-12550

AE92

 1
71551-12540

AE92

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-12540

AE92

 1
71551-12550

AE92

 1
71567 - PAD, FRONT SEAT BACK SAFETY
71567-12010

AE92

 2
71567 - PAD, FRONT SEAT BACK SAFETY
71567-12010

AE92

 2
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-12490

AE92

 1
71630-12480

AE92..5D

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-12480

AE92

 1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-1205003

AE92

SHADOW GRAY,TRIM1#

 1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71705-1205003

AE92

SHADOW GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-1284013

AE92

SHADOW GRAY,TRIM1#

 2
71910-1287101

AE92

BLACK,TRIM1#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-1284013

AE92

SHADOW GRAY,TRIM1#

 2
71910-1287101

AE92

BLACK,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92

ﾛｯｸ無,SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92

ﾛｯｸ付,SHADOW GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92

ﾛｯｸ無,SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92

ﾛｯｸ付,SHADOW GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92

ﾛｯｸ無,SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92

ﾛｯｸ付,SHADOW GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1203003

AE92

ﾛｯｸ無,SHADOW GRAY,TRIM1#

 2
71930-1206003

AE92

ﾛｯｸ付,SHADOW GRAY,TRIM1#

 2
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92

SHADOW GRAY,TRIM1#

 4
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92

SHADOW GRAY,TRIM1#

 4
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92

SHADOW GRAY,TRIM1#

 4
71991 - COVER, HEADREST SUPPORT BASE
71991-1201003

AE92

SHADOW GRAY,TRIM1#

 4
72457C - KNOB, SIDE SUPPORT ADJUSTER
72457-1403023

AE92

GRAY,TRIM1#

 1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-12070

AE92

 1
72791 - LEVER, LUMBAR SUPPORT
72791-2202023

AE92

GRAY,TRIM1#

 1
Common parts
67771-16010
90467-18071
90520-01002
91655-40620
93540-14014

ILLUST NO. 2 OF 2(8705- )AE92

Click highlighted areas on diagram

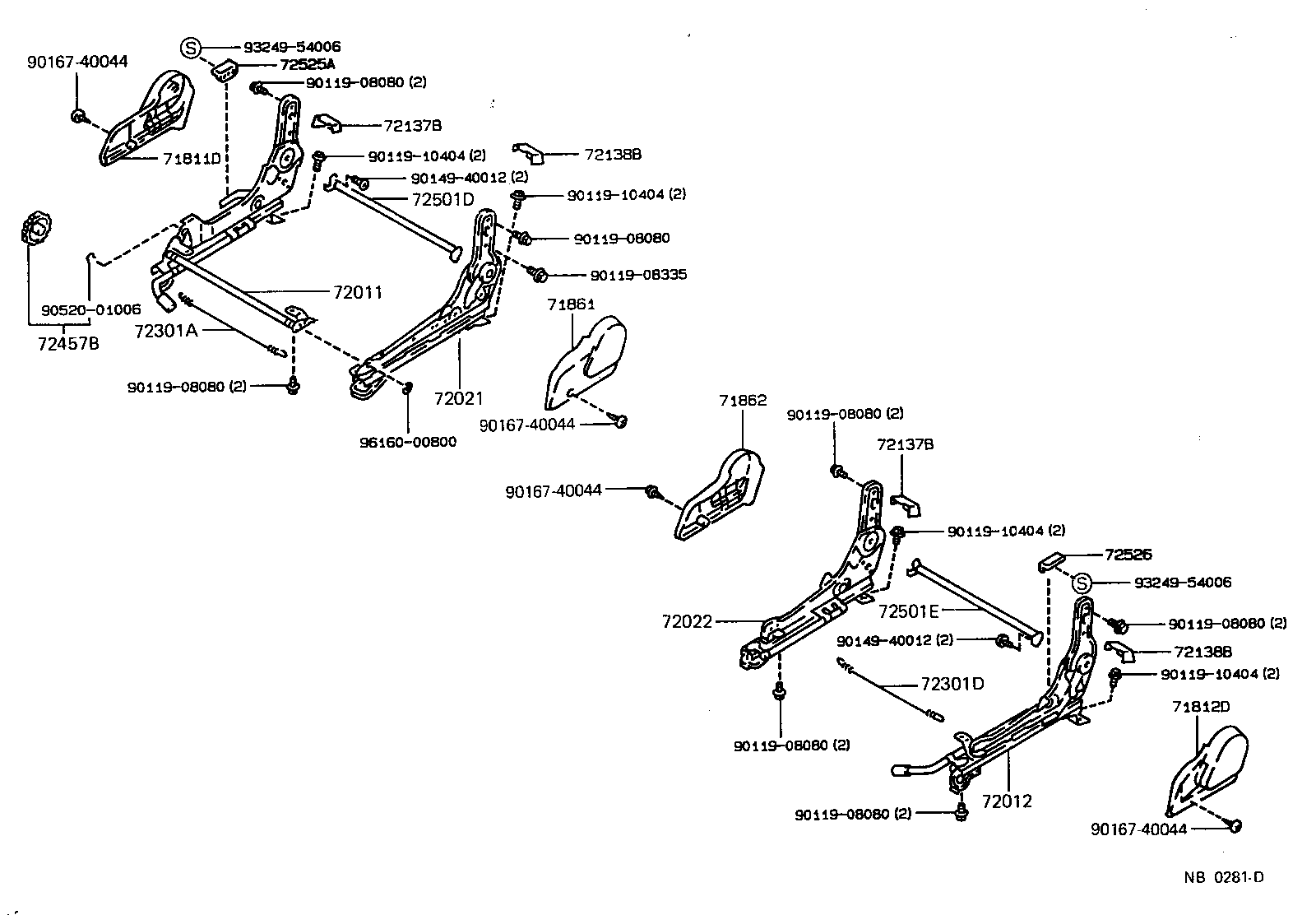

diagram 71811D 71812D 71861 71862 72011 72012 72021 72022 72137B 72137B 72138B 72138B 72301A 72301D 72457B 72501D 72501E 72525A 72526 9011908080 9011908080 9011908080 9011908080 9011908080 9011908080 9011908080 9011908335 9011910404 9011910404 9011910404 9011910404 9014940012 9014940012 9016740044 9016740044 9016740044 9016740044 9052001006 9324954006 9324954006 9616000800
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-1217003

AE92

SHADOW GRAY,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-1214003

AE92

SHADOW GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-1212003

AE92

SHADOW GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-1211003

AE92

SHADOW GRAY,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-12110

AE92

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-12100

AE92

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-12130

AE92

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-12120

AE92

 1
72137B - COVER, SEAT TRACK, RH
72137-1202003

AE91,92,CE90,96,EE9#

SHADOW GRAY,TRIM1#

 2
72137B - COVER, SEAT TRACK, RH
72137-1202003

AE91,92,CE90,96,EE9#

SHADOW GRAY,TRIM1#

 2
72138B - COVER, SEAT TRACK, LH
72138-1203003

AE91,92,CE90,96,EE9#

SHADOW GRAY,TRIM1#

 2
72138B - COVER, SEAT TRACK, LH
72138-1203003

AE91,92,CE90,96,EE9#

SHADOW GRAY,TRIM1#

 2
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-12040

AE91,92,CE90..GT,SE,XI

 1
72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH
72301-12040

AE92

 1
72457B - KNOB, VERTICAL SEAT ADJUSTER, RH
72457-1203003

AE91,92,CE90..GT,SE,XI

SHADOW GRAY,TRIM1#

 1
72457-1203003

AE92

SHADOW GRAY,TRIM1#

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-12050

AE92

 1
72501-12050

AE92

 1
72501-12090

AE92

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-12050

AE92

 1
72501-12050

AE92

 1
72501-12090

AE92

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-1209003

AE9#,CE9#,EE9#

GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-1203003

AE9#,CE9#,EE9#

GRAY,TRIM1#

 1
Common parts
90119-08080
90119-08335
90119-10404
90149-40012
90167-40044
90520-01006
93249-54006
96160-00800
