AE92-BLPVF (1987)
Toyota Sprinter
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1207003 |
AE9#,CE90,EE90..G,GT,MX,SE,XI SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2002003 |
AE95;AE91,92,CE9#,EE9#..DX,GT,LX,STD,XL SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 55539-2003003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-2002003 |
AE95,CE95;AE91,92,CE90,96,EE9#..CTD,DX,GT,XL SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2002003 |
AE95..4D;AE91,92,CE90,EE90..DX,GT SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2003003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1207003 |
AE9#,CE90,EE90..G,GT,MX,SE,XI SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2002003 |
AE95;AE91,92,CE9#,EE9#..DX,GT,LX,STD,XL SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 55539-2003003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-2002003 |
AE95,CE95;AE91,92,CE90,96,EE9#..CTD,DX,GT,XL SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2002003 |
AE95..4D;AE91,92,CE90,EE90..DX,GT SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2003003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1207003 |
AE9#,CE90,EE90..G,GT,MX,SE,XI SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 55539-2002003 |
AE95;AE91,92,CE9#,EE9#..DX,GT,LX,STD,XL SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ B |
1 | ||
| 55539-2003003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-2002003 |
AE95,CE95;AE91,92,CE90,96,EE9#..CTD,DX,GT,XL SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2002003 |
AE95..4D;AE91,92,CE90,EE90..DX,GT SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2003003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS GRAY,TRIM1#,ﾀｲﾌﾟ C |
1 | ||
| 55539-1207003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS SHADOW GRAY,TRIM1#,ﾀｲﾌﾟ A |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1240013 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1215003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI SHADOW GRAY,TRIM1# |
1 | ||
| 58901-1215003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 58901-12150B1 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1215003 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI SHADOW GRAY,TRIM1# |
1 | ||
| 58901-1215003 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 58901-12150B1 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1207003 |
AE91..XI;AE91..(G,L,MX,SE)..CBR;AE92,95,CE90,EE90..AV2,GT,MX,SE SHADOW GRAY,TRIM1# |
1 | ||
| 58905-1207003 |
AE91..XS;AE9#,CE90,95,EE90..(AV2,G,GT,L,LX,MX,SE)..(CBR,DSL,EFI) SHADOW GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1207003 |
AE91..XI;AE91..(G,L,MX,SE)..CBR;AE92,95,CE90,EE90..AV2,GT,MX,SE SHADOW GRAY,TRIM1# |
1 | ||
| 58905-1207003 |
AE91..XS;AE9#,CE90,95,EE90..(AV2,G,GT,L,LX,MX,SE)..(CBR,DSL,EFI) SHADOW GRAY,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
AE9#,CE90,95,EE90..AV2,G,GT,L,LX,MX,SE,XS |
2 | ||
| 58959-16010 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-20020 |
AE9#,CE90,95,EE90..AV2,G,GT,L,LX,MX,SE,XS |
1 | ||
| 58964-30060 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58964-20020 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58964-30030 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-20020 |
AE9#,CE90,95,EE90..AV2,G,GT,L,LX,MX,SE,XS |
1 | ||
| 58964-30060 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58964-20020 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58964-30030 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
AE91..XI;AE91..(G,L,MX,SE)..CBR;AE92,95,CE90,EE90..AV2,GT,MX,SE |
1 | ||
| 58965-12010 |
AE91..XS;AE9#,CE90,95,EE90..(AV2,G,GT,L,LX,MX,SE)..(CBR,DSL,EFI) |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58976-22020 |
AE9#,CE90,95,EE90..AV2,G,GT,L,LX,MX,SE,XS |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
AE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI |
1 | ||
| 58976-22020 |
AE9#,CE90,95,EE90..AV2,G,GT,L,LX,MX,SE,XS |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12060 |
AE91,92,CE90,96,EE9# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12050 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI |
1 | ||
| 58996-12050 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12050 |
AE91,92,CE90,EE90..G,GT,L,MX,SE,XI |
1 | ||
| 58996-12050 |
AE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90167-50020 | ||||
| 90254-03002 | ||||
| 91661-40612 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||

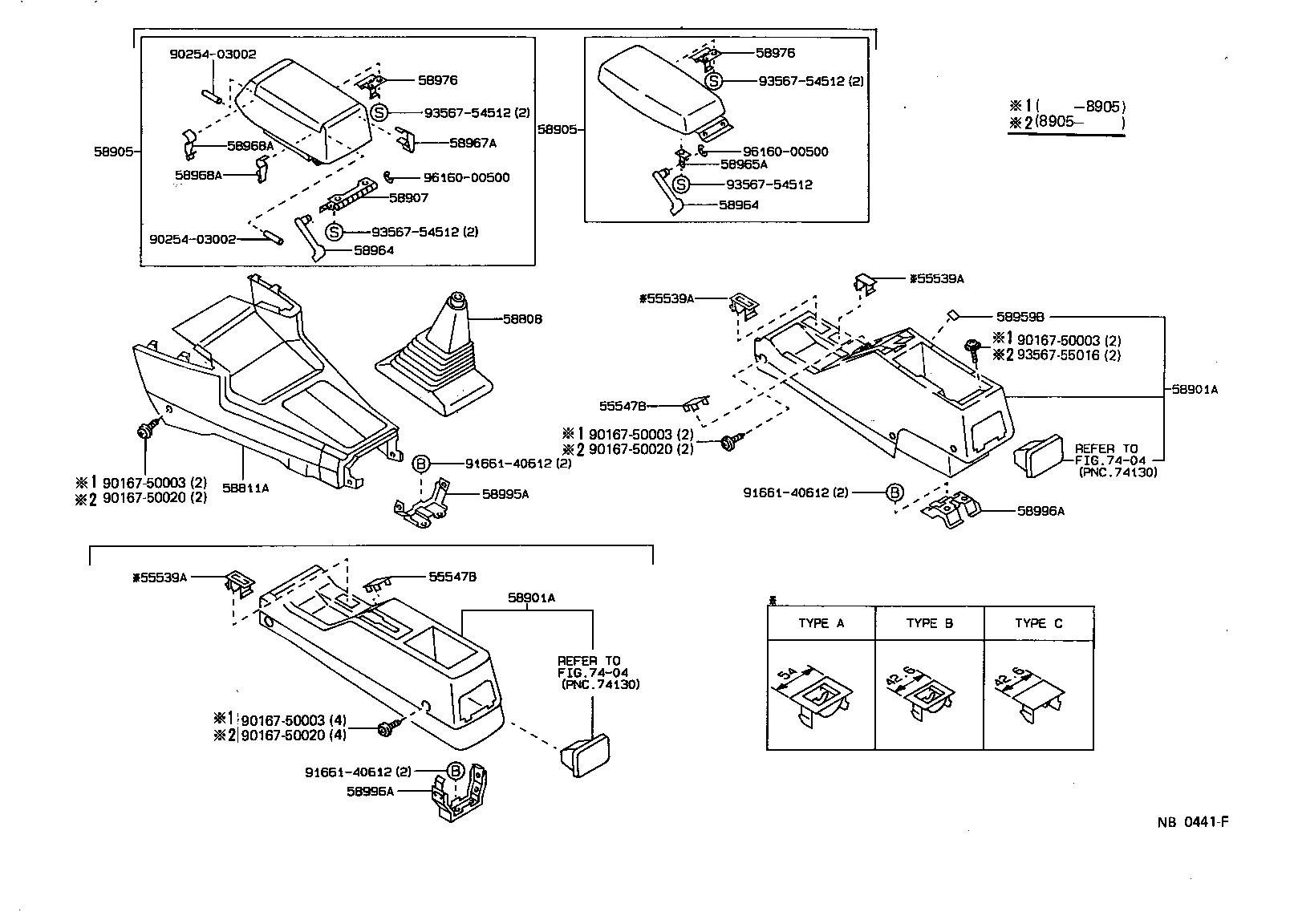

| Linked diagrams | ||||
| 7404 | ||||
