AE92-BLMVF (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

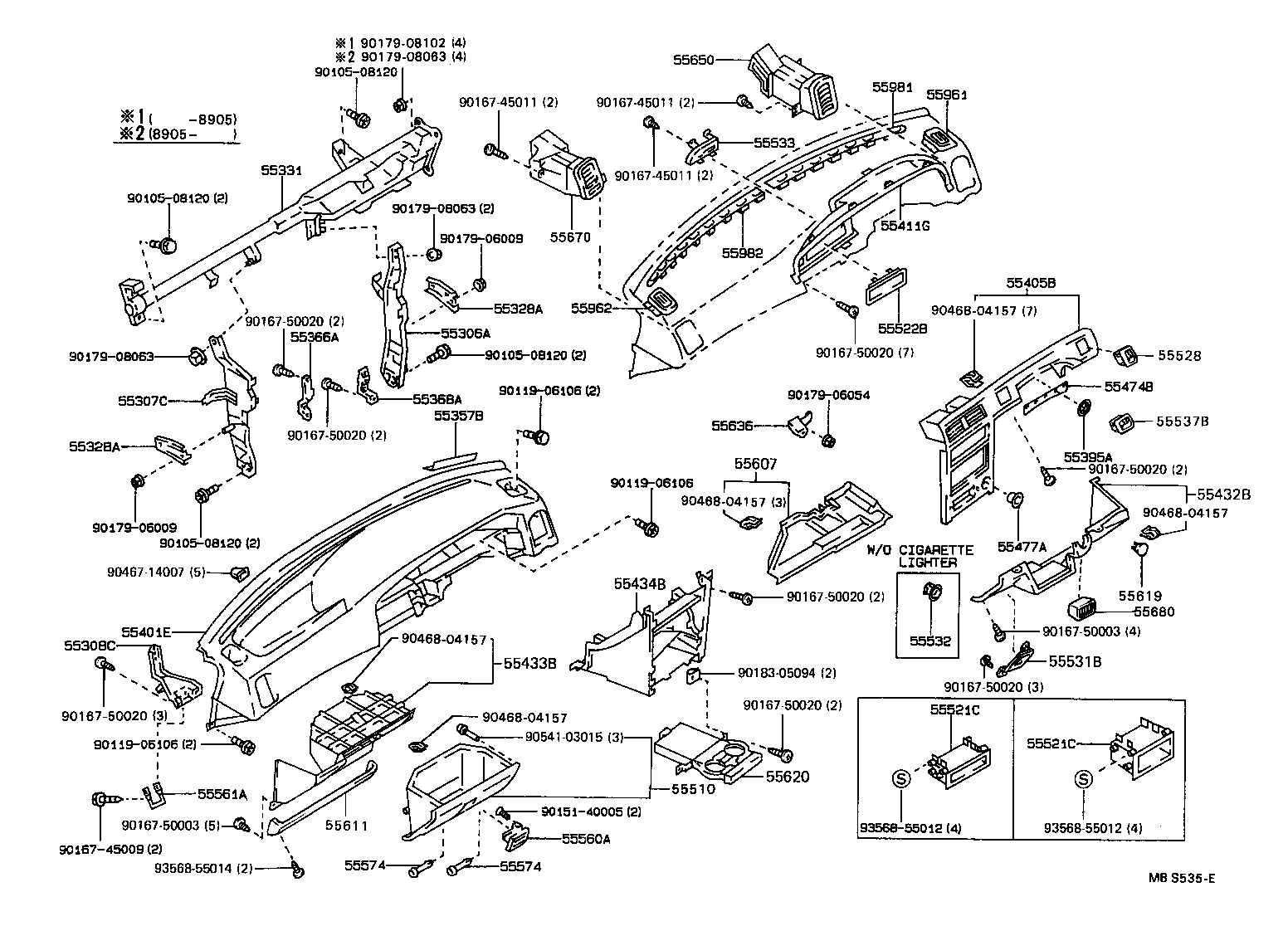

Click highlighted areas on diagram

diagram 55306A 55307C 55308C 55328A 55328A 55331 55357B 55366A 55368A 55395A 55401E 55405B 55411G 55432B 55433B 55434B 55474B 55477A 55510 55521C 55521C 55522B 55528 55531B 55532 55533 55537B 55560A 55561A 55574 55574 55607 55611 55619 55620 55636 55650 55670 55680 55961 55962 55981 55982 9010508120 9010508120 9010508120 9010508120 9011906106 9011906106 9011906106 9015140005 9016745009 9016745011 9016745011 9016745011 9016750003 9016750003 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9016750020 9017906009 9017906009 9017906054 9017908063 9017908063 9017908063 9017908102 9018305094 9046714007 9046804157 9046804157 9046804157 9046804157 9046804157 9054103015 9356855012 9356855012 9356855014
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-12060

AE91,92,CE90,96,EE9#

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-12110

AE91,92,CE90,96,EE9#

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-12150

AE9#,CE9#,EE9#

 1
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-12040

AE9#,CE9#,EE9#

 2
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-12040

AE9#,CE9#,EE9#

 2
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-12160

AE9#,CE9#,EE9#

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-22010

AE9#,CE9#,EE9#

 2
55368A - BRACKET, RADIO MOUNTING, NO.2
55368-12010

AE9#,CE9#,EE9#

 1
55395A - RETAINER, INSTRUMENT PANEL CLAMP
55395-12010

AE9#,CE90..AV2,GT,SE,XS

 5
55395-12010

AE95,CE90..AV2,SE;AE91,92,EE90..GT,LX,SE

 5
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-1223003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-1244001

AE92,95..AV2,GT

BLACK,TRIM1#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-12850

AE91..SE..EFIS;AE91,92..GT,XI,XS

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-1226013

AE92

SHADOW GRAY,TRIM1#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-1204003

AE9#,CE9#,EE9#..AV1,AV2,CTD,DX,G,GT,L,LX,MX,RVS,STD,XI,XL,XS

SHADOW GRAY,TRIM1#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-1204003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL
55474-12120

AE9#,CE90..AV2,GT,SE,XS

 1
55474-12120

AE95,CE90..AV2,SE;AE91,92,EE90..GT,LX,SE

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-12080

AE9#,CE9#,EE9#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1225003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-16030

AE92,95;AE91..EFIS

 1
55521-16030

AE91..EFIS;AE92,95..4D,5D

 1
55521-16030

AE95;AE91,92..EFI

1/2 DIN,W(1DIN SIZE COVER)

 1
55521C - COVER, STEREO OPENING
55521-16030

AE92,95;AE91..EFIS

 1
55521-16030

AE91..EFIS;AE92,95..4D,5D

 1
55521-16030

AE95;AE91,92..EFI

1/2 DIN,W(1DIN SIZE COVER)

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-1604003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-12050

AE9#,CE9#,EE9#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AE9#,CE9#,EE9#

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

AE9#,CE9#,EE9#

 2
55619 - COVER, SWITCH HOLE
55619-1401033

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-1201001

AE92

BLACK,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1214003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-1211003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-1403013

AE9#,CE90,EE90..4D,5D

SHADOW GRAY,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-1214003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-1212003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-1203003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
55982 - GARNISH, DEFROSTER NOZZLE, NO.2
55982-1203003

AE9#,CE9#,EE9#

SHADOW GRAY,TRIM1#

 1
Common parts
90105-08120
90119-06106
90151-40005
90167-45009
90167-45011
90167-50003
90167-50020
90179-06009
90179-06054
90179-08063
90179-08102
90183-05094
90467-14007
90468-04157
90541-03015
93568-55012
93568-55014
