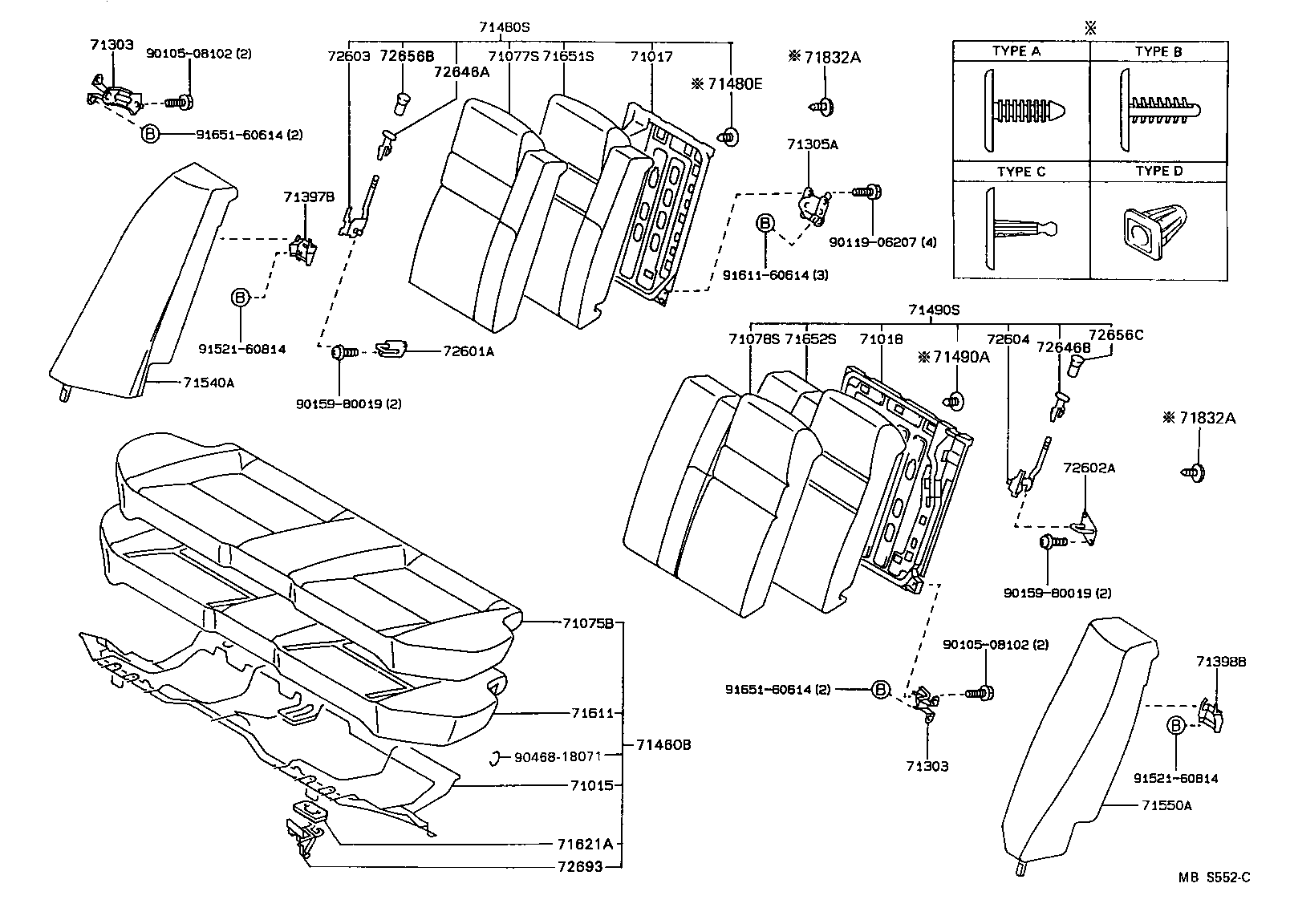

AE92-BEPVF (1987)
Toyota Sprinter
(8705- )AE92
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12260 |
AE91,92,CE90,EE90..4D |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12260 |
AE92..4D |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12050 |
AE92..4D |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A88003 |
AE92..4D SADOW GRAY,TRIM1# |
1 | ||
| 71065-1A88103 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1H55003 |
AE92..4D SADOW GRAY,TRIM1# |
1 | ||
| 71077-1H55103 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1A55003 |
AE92..4D SADOW GRAY,TRIM1# |
1 | ||
| 71078-1A55103 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12060 |
AE91..L;AE92..4D |
2 | ||
| 71303-12060 |
AE91..L;AE92..4D |
2 | ||
| 71303-12060 |
AE91..L;AE92..4D |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12060 |
AE91..L;AE92..4D |
2 | ||
| 71303-12060 |
AE91..L;AE92..4D |
2 | ||
| 71303-12060 |
AE91..L;AE92..4D |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12060 |
AE91..L;AE92..4D |
1 | ||
| 71305-12060 |
AE91..L;AE92..4D |
1 | ||
| 71305-12060 |
AE92..4D |
1 | ||
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71397-12020 |
AE91,92..G,GT,XS |
1 | ||
| 71397-12020 |
AE91,92..G,GT,XI |
1 | ||
| 71397-12020 |
AE91,92..G,GT,XS |
1 | ||
| 71398B - HOLDER, REAR SEAT BACK, LH | ||||
| 71398-12020 |
AE91,92..G,GT,XS |
1 | ||
| 71398-12020 |
AE91,92..G,GT,XI |
1 | ||
| 71398-12020 |
AE91,92..G,GT,XS |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E02003 |
AE92..4D ***,SADOW GRAY,TRIM1# |
1 | ||
| 71460-1E02103 |
AE92..4D ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-0704913 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0704903 |
AE91,92..G,GT,XS GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-07049B0 |
AE92..4D LIGHT GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0603733 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1H65003 |
AE92..4D ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H65103 |
AE92..4D ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1A39003 |
AE92..4D ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-1A39103 |
AE92..4D ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-1205003 |
AE92..4D SHADOW GREY,TRIM1# |
1 | ||
| 71540-1205103 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-1205103 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 71550-1205003 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12530 |
AE91,92,CE90..4D..(GT,SE) |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-12270 |
AE91,92,CE90,EE90..4D |
2 | ||
| 71621-12270 |
AE91,92,CE90,EE90 |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12570 |
AE92..4D |
1 | ||
| 71651-12580 |
AE92..4D |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12400 |
AE92..4D |
1 | ||
| 71652-12410 |
AE92..4D |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0707913 |
AE92..4D GARY,TRIM1#,ﾀｲﾌﾟ C |
4 | ||
| 90467-10023 |
AE92..4D ﾀｲﾌﾟ D |
4 | ||
| 90467-0603733 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0704913 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-07049B0 |
AE92..4D LIGHT GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0704903 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0704903 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-07049B0 |
AE92..4D LIGHT GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0603733 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0707913 |
AE92..4D GARY,TRIM1#,ﾀｲﾌﾟ C |
4 | ||
| 90467-10023 |
AE92..4D ﾀｲﾌﾟ D |
4 | ||
| 90467-0603733 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 90467-0704913 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-07049B0 |
AE92..4D LIGHT GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0704903 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0704903 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-07049B0 |
AE92..4D LIGHT GRAY,TRIM1#,ﾀｲﾌﾟ B |
4 | ||
| 90467-0603733 |
AE92..4D GRAY,TRIM1#,ﾀｲﾌﾟ A |
4 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-12090 |
AE92..4D |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-12040 |
AE92..4D |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12130 |
AE92..4D |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12120 |
AE92..4D |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1204003 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1204003 |
AE92..4D SHADOW GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001023 |
AE92..4D;AE91,95..AV1,AV2,L,RVS GRAY,TRIM1# |
1 | ||
| 72656-2001023 |
AE91..L..EFI;AE92,95..(4D,WG)..(AV1,AV2,GT,RVS) GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001023 |
AE92..4D;AE91,95..AV1,AV2,L,RVS GRAY,TRIM1# |
1 | ||
| 72656-2001023 |
AE91..L..EFI;AE92,95..(4D,WG)..(AV1,AV2,GT,RVS) GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12020 |
AE92..4D;AE91,CE90,EE90..DX,G,LX,MX,SE,XI |
2 | ||
| 72693-12050 |
AE91,92,CE90,EE90 |
2 | ||
| 72693-12020 |
AE92..4D;AE91,CE90,EE90 |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90159-80019 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
