AE92-BEPVF (1987)
Toyota Sprinter

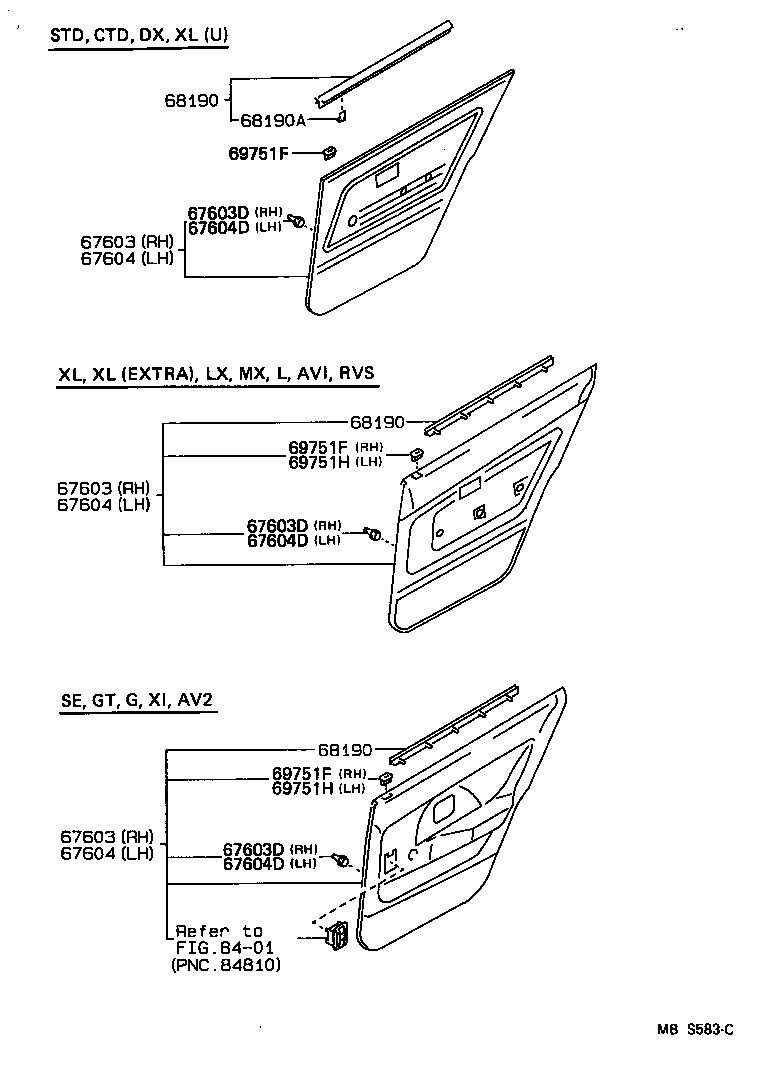

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A11003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A12003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A83003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A84003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A11003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A12003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A83003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A84003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A11003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A12003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A83003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A84003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90..G,GT,SE,XI |
7 | ||
| 67771-12050 |
AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91,92..EFI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI) ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..SE..EFIS;AE91,92..G,GT,XS |
6 | ||
| 67771-12050 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-89104 |
AE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI) WHITE |
1 | ||
| 67771-89104 |
AE91..SE..EFI;AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI) ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91,92..EFI WHITE |
1 | ||
| 67771-12050 |
AE91..SE..EFI;AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI) WHITE |
1 | ||
| 67771-12030 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
7 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90..G,GT,SE,XI |
7 | ||
| 67771-12050 |
AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91,92..EFI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI) ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..SE..EFIS;AE91,92..G,GT,XS |
6 | ||
| 67771-12050 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-89104 |
AE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI) WHITE |
1 | ||
| 67771-89104 |
AE91..SE..EFI;AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI) ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91,92..EFI WHITE |
1 | ||
| 67771-12050 |
AE91..SE..EFI;AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI) WHITE |
1 | ||
| 67771-12030 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
7 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90..G,GT,SE,XI |
7 | ||
| 67771-12050 |
AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91,92..EFI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI) ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..SE..EFIS;AE91,92..G,GT,XS |
6 | ||
| 67771-12050 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-89104 |
AE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI) WHITE |
1 | ||
| 67771-89104 |
AE91..SE..EFI;AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..XS;AE9#,CE90..(GT,SE)..(DSL,EFI) ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91,92..EFI WHITE |
1 | ||
| 67771-12050 |
AE91..SE..EFI;AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI) WHITE |
1 | ||
| 67771-12030 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A10003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A09003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A84003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A83003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A10003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A09003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A84003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A83003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A10003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A09003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A84003 |
AE92 ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾃﾞﾝｼﾞ ﾛﾂｸ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A83003 |
AE92 SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90..G,GT,SE,XI |
7 | ||
| 67771-12040 |
AE91,92..EFI GREEN |
7 | ||
| 67771-89104 |
AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-12040 |
AE91,92..G,GT,XI GREEN |
7 | ||
| 67771-12050 |
AE91,92..EFI ﾚｯﾄﾞ |
6 | ||
| 67771-12040 |
AE91..SE..EFI;AE91,92..G,GT,XI GREEN |
7 | ||
| 67771-89104 |
AE91,92..EFI WHITE |
1 | ||
| 67771-89104 |
AE91..SE..EFI;AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..SE..EFI;AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE9#,CE90..AV2,G,GT,SE,XS WHITE |
1 | ||
| 67771-12050 |
AE9#,CE90..G,GT,SE,XS ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-89104 |
AE9#,CE90..G,GT,SE,XS WHITE |
1 | ||
| 67771-12030 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
7 | ||
| 67771-12050 |
AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90..G,GT,SE,XI |
7 | ||
| 67771-12040 |
AE91,92..EFI GREEN |
7 | ||
| 67771-89104 |
AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-12040 |
AE91,92..G,GT,XI GREEN |
7 | ||
| 67771-12050 |
AE91,92..EFI ﾚｯﾄﾞ |
6 | ||
| 67771-12040 |
AE91..SE..EFI;AE91,92..G,GT,XI GREEN |
7 | ||
| 67771-89104 |
AE91,92..EFI WHITE |
1 | ||
| 67771-89104 |
AE91..SE..EFI;AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..SE..EFI;AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE9#,CE90..AV2,G,GT,SE,XS WHITE |
1 | ||
| 67771-12050 |
AE9#,CE90..G,GT,SE,XS ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-89104 |
AE9#,CE90..G,GT,SE,XS WHITE |
1 | ||
| 67771-12030 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
7 | ||
| 67771-12050 |
AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90..G,GT,SE,XI |
7 | ||
| 67771-12040 |
AE91,92..EFI GREEN |
7 | ||
| 67771-89104 |
AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-12040 |
AE91,92..G,GT,XI GREEN |
7 | ||
| 67771-12050 |
AE91,92..EFI ﾚｯﾄﾞ |
6 | ||
| 67771-12040 |
AE91..SE..EFI;AE91,92..G,GT,XI GREEN |
7 | ||
| 67771-89104 |
AE91,92..EFI WHITE |
1 | ||
| 67771-89104 |
AE91..SE..EFI;AE91,92..G,GT,XI WHITE |
1 | ||
| 67771-12050 |
AE91..SE..EFI;AE91,92..G,GT,XI ﾚｯﾄﾞ |
6 | ||
| 67771-89104 |
AE9#,CE90..AV2,G,GT,SE,XS WHITE |
1 | ||
| 67771-12050 |
AE9#,CE90..G,GT,SE,XS ﾚｯﾄﾞ |
6 | ||
| 67771-12050 |
AE91..XI;AE91..(G,SE)..CBR;AE92,95,CE90..GT,SE |
7 | ||
| 67771-89104 |
AE9#,CE90..G,GT,SE,XS WHITE |
1 | ||
| 67771-12030 |
AE9#,CE90,95..AV2,G,GT,SE,XS |
7 | ||
| 67771-12050 |
AE9#,CE90..AV2,G,GT,SE,XS ﾚｯﾄﾞ |
6 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12150 |
AE9#,CE90,95..G,GT,SE,XI,XS |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12150 |
AE9#,CE90,95..G,GT,SE,XI,XS |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12150 |
AE9#,CE90,95..G,GT,SE,XI,XS |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90..G,GT,SE,XI,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040B1 |
AE9#,CE90,95..G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90..G,GT,SE,XI,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040B1 |
AE9#,CE90,95..G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90,95..AV2,G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90..G,GT,SE,XI,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040B1 |
AE9#,CE90,95..G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201013 |
AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040B1 |
AE9#,CE90,95..G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201013 |
AE9#,CE90..AV2,G,GT,SE,XI SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,CE90,95..AV2,G,GT,SE,XI,XS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040B1 |
AE9#,CE90,95..G,GT,SE,XS SHADOW GRAY,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

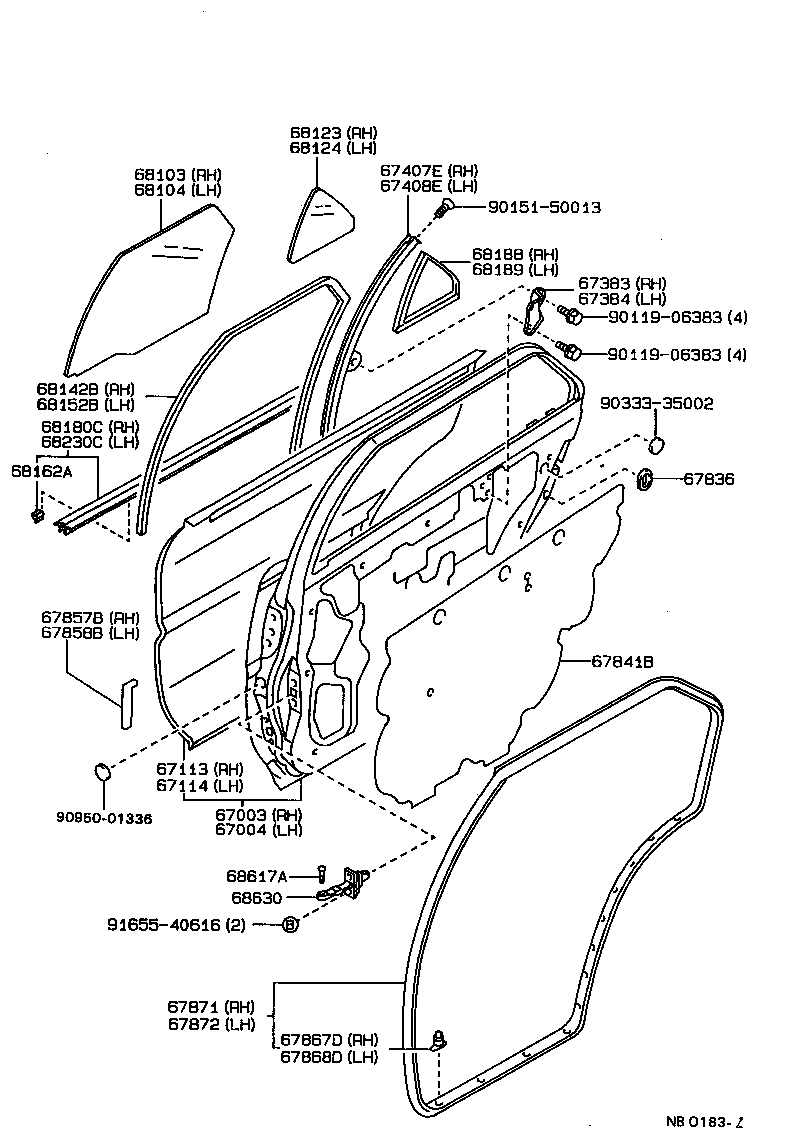

ILLUST NO. 1 OF 2(8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12550 |
AE9#,CE90,EE90 |
1 | ||
| 67003-12551 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12550 |
AE9#,CE90,EE90 |
1 | ||
| 67004-12551 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12170 |
AE9#,CE90,EE90 |
1 | ||
| 67113-12171 |
AE9#,CE90,95,EE90 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12171 |
AE9#,CE90,95,EE90 |
1 | ||
| 67114-12170 |
AE9#,CE90,EE90 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12030 |
AE9#,CE90,95,EE90 |
2 | ||
| 67836-12030 |
AE9#,CE9#,EE9# |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-12220 |
AE9#,CE9#,EE9# |
2 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE9#,CE90,EE90 |
17 | ||
| 67868-12050 |
AE91,92..EFI |
17 | ||
| 67868-12030 |
AE9#,CE90,EE90..4D,5D |
17 | ||
| 67868-12080 |
AE92,CE90,EE90 |
17 | ||
| 67868-12050 |
AE9#,CE90,95,EE90 |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12300 |
AE9#,CE90,EE90 |
1 | ||
| 67871-12300 |
AE9#,CE90,EE90 |
2 | ||
| 67871-12301 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12301 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67872-12300 |
AE9#,CE90,EE90 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12240 |
AE95..SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-12230 |
AE9#,CE90,EE90..G,GT,L,LX,MX,SE,XI *TT,厚さ=3.5 |
1 | ||
| 68113-12240 |
AE9#,CE90..GT,L,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-12230 |
AE92..4D;AE91,95,CE90,95,EE90..L,LX,MX,SE *TT,厚さ=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12240 |
AE95..SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-12240 |
AE9#,CE90..GT,L,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-12230 |
AE9#,CE90,EE90..G,GT,L,LX,MX,SE,XI *TT,厚さ=3.5 |
1 | ||
| 68114-12230 |
AE92..4D;AE91,95,CE90,95,EE90..L,LX,MX,SE *TT,厚さ=3.5 |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12130 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12050 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE9#,EE9# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12040 |
AE9#,CE9#,EE9# |
2 | ||
| Common parts | ||||
| 90119-06383 | ||||
| 90151-50013 | ||||
| 90333-35002 | ||||
| 90950-01336 | ||||
| 91655-40616 | ||||

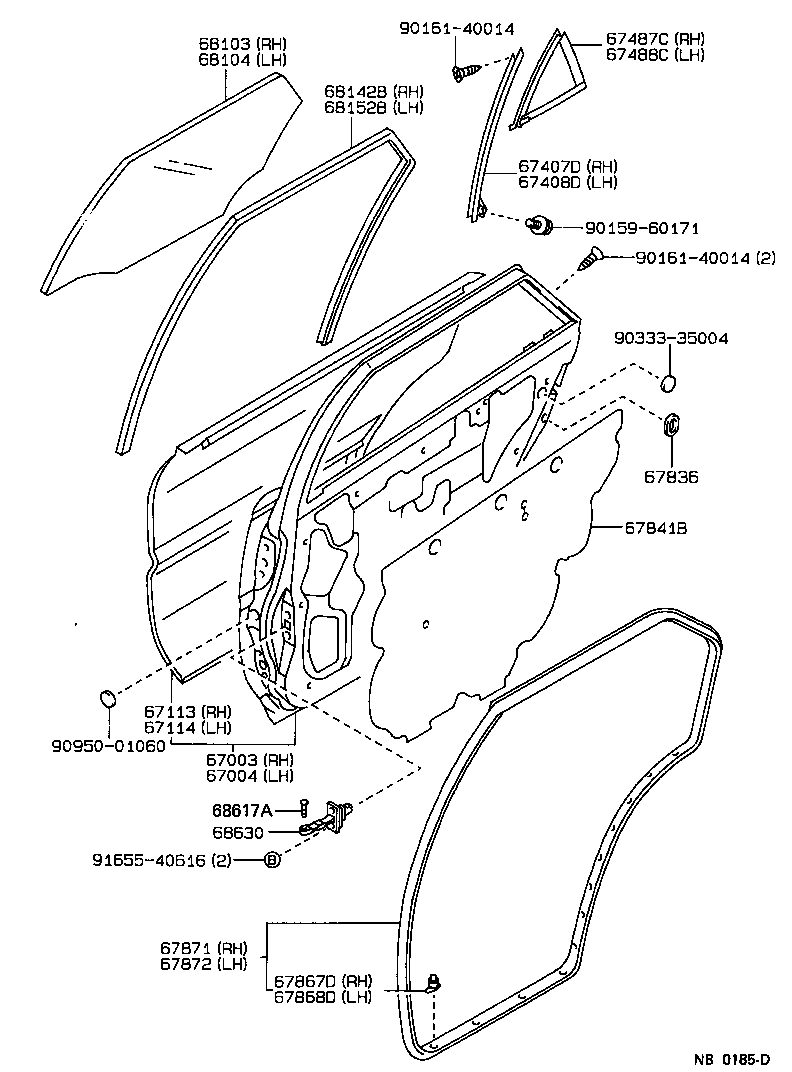

ILLUST NO. 1 OF 2(8705- )4D,5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12550 |
AE9#,CE90,EE90 |
1 | ||
| 67003-12551 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12550 |
AE9#,CE90,EE90 |
1 | ||
| 67004-12551 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12170 |
AE9#,CE90,EE90 |
1 | ||
| 67113-12171 |
AE9#,CE90,95,EE90 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12171 |
AE9#,CE90,95,EE90 |
1 | ||
| 67114-12170 |
AE9#,CE90,EE90 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-12180 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-12170 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-12080 |
AE9#,CE90,95,EE90..4D..(GT,LX,MX,SE) |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-12080 |
AE9#,CE90,95,EE90..4D..(GT,LX,MX,SE) |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12030 |
AE9#,CE90,95,EE90 |
2 | ||
| 67836-12030 |
AE9#,CE9#,EE9# |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-12220 |
AE9#,CE9#,EE9# |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE9#,CE90,95,EE90 |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE9#,CE90,EE90 |
17 | ||
| 67868-12050 |
AE91,92..EFI |
17 | ||
| 67868-12030 |
AE9#,CE90,EE90..4D,5D |
17 | ||
| 67868-12080 |
AE92,CE90,EE90 |
17 | ||
| 67868-12050 |
AE9#,CE90,95,EE90 |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12300 |
AE9#,CE90,EE90 |
1 | ||
| 67871-12300 |
AE9#,CE90,EE90 |
2 | ||
| 67871-12301 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12301 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 67872-12300 |
AE9#,CE90,EE90 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12240 |
AE95..SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-12230 |
AE9#,CE90,EE90..G,GT,L,LX,MX,SE,XI *TT,厚さ=3.5 |
1 | ||
| 68113-12240 |
AE9#,CE90..GT,L,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-12230 |
AE92..4D;AE91,95,CE90,95,EE90..L,LX,MX,SE *TT,厚さ=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12240 |
AE95..SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-12240 |
AE9#,CE90..GT,L,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68114-12230 |
AE9#,CE90,EE90..G,GT,L,LX,MX,SE,XI *TT,厚さ=3.5 |
1 | ||
| 68114-12230 |
AE92..4D;AE91,95,CE90,95,EE90..L,LX,MX,SE *TT,厚さ=3.5 |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12130 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12050 |
AE9#,CE90,95,EE90..4D,5D |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE9#,EE9# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12040 |
AE9#,CE9#,EE9# |
2 | ||
| Common parts | ||||
| 90159-60171 | ||||
| 90161-40014 | ||||
| 90333-35004 | ||||
| 90950-01060 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
