AE92-BEMVF (1987)
Toyota Sprinter
Production
May 1987
-
Jun 1991
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )AE92

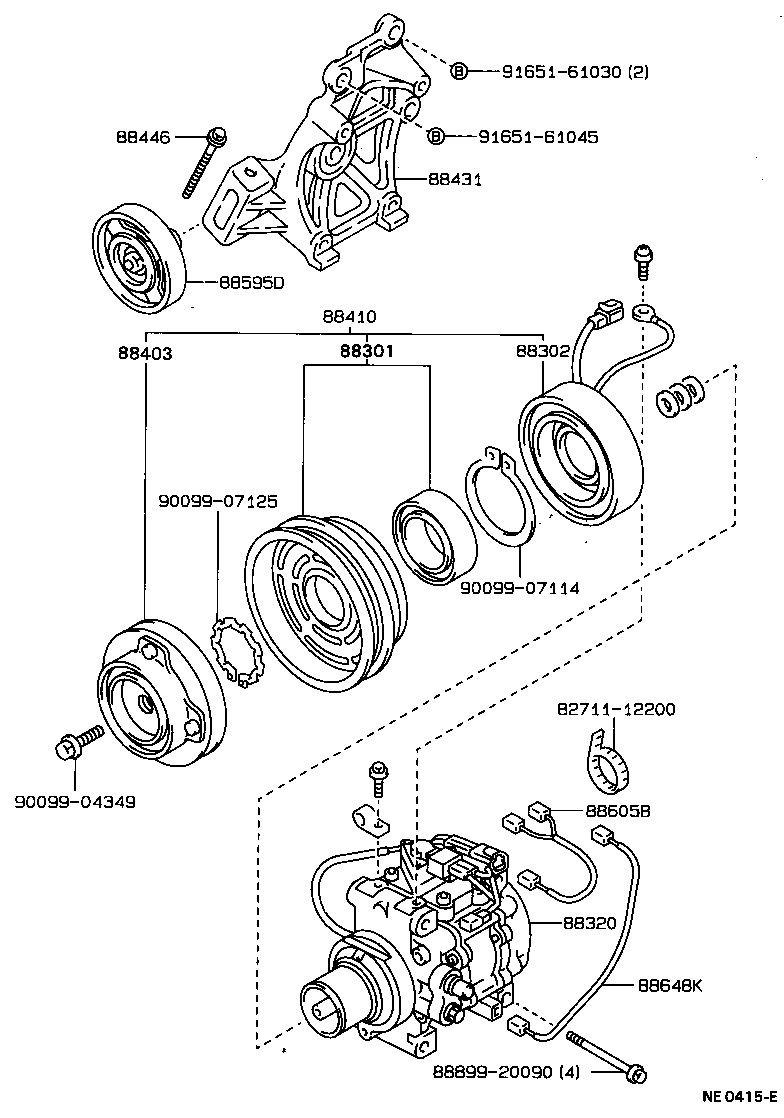

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-16050 |
AE92 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
AE92 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12550 |
AE92 |
1 | ||
| 88320-12660 |
AE92 |
1 | ||
| 88320-12790 |
AE92 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
AE92 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-16050 |
AE92 |
1 | ||
| 88410-10210 |
AE92 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12390 |
AE92 |
1 | ||
| 88431-12440 |
AE92 |
1 | ||
| 88431-12390 |
AE92 ｶﾝﾚｲﾁ ｼﾖｳ,ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88431-12390 |
AE92 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
AE92 |
1 | ||
| 88446-35010 |
AE92 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-32030 |
AE92 |
1 | ||
| 88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-1A710 |
AE92 |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-12380 |
AE9#..AV2,G,GT,L,LX,MX,SE,XI |
1 | ||
| 88648-12380 |
AE9#..AV2,G,GT,SE,XI |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91651-61030 | ||||
| 91651-61045 | ||||
