AE91-BLMNU (1987)

Toyota Sprinter

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE9#,CE90,95,EE90

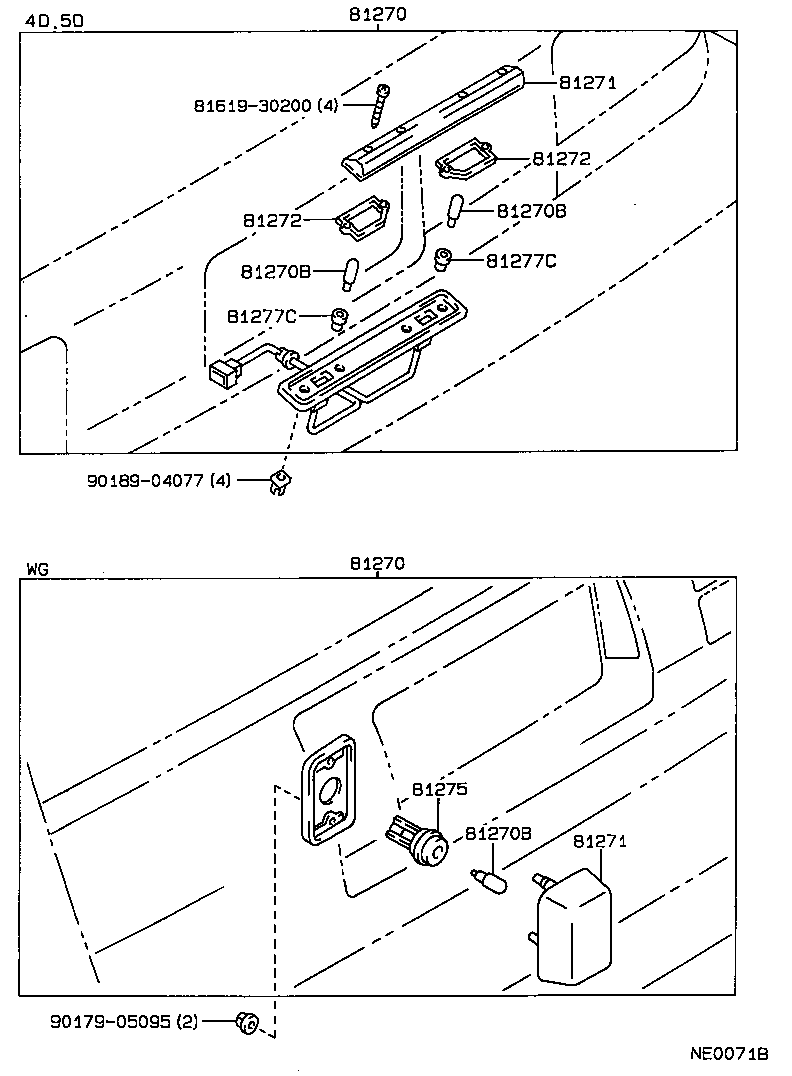

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81272 81272 81275 81277C 81277C 8161930200 9017905095 9018904077
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-12360

AE91,95,CE90,EE90..DX,L,LX

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-12360

AE91,95,CE90,EE90..DX,L,LX

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AE9#,CE9#,EE9#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AE9#,CE9#,EE9#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AE9#,CE9#,EE9#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22200

AE91,95,CE90,EE90..DX,L,LX

 1
81271 - LENS, LICENSE PLATE LAMP
81271-22200

AE91,95,CE90,EE90..DX,L,LX

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22200

AE9#,CE90,95,EE90..4D,5D

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22200

AE9#,CE90,95,EE90..4D,5D

 2
81277C - SHADE, LICENSE PLATE LAMP, RH
81277-22200

AE9#,CE90,95,EE90..4D,5D

 2
81277C - SHADE, LICENSE PLATE LAMP, RH
81277-22200

AE9#,CE90,95,EE90..4D,5D

 2
Common parts
81619-30200
90179-05095
90189-04077
