AE91-BLMNU (1987)

Toyota Sprinter

Production May 1987 - May 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4D,5D

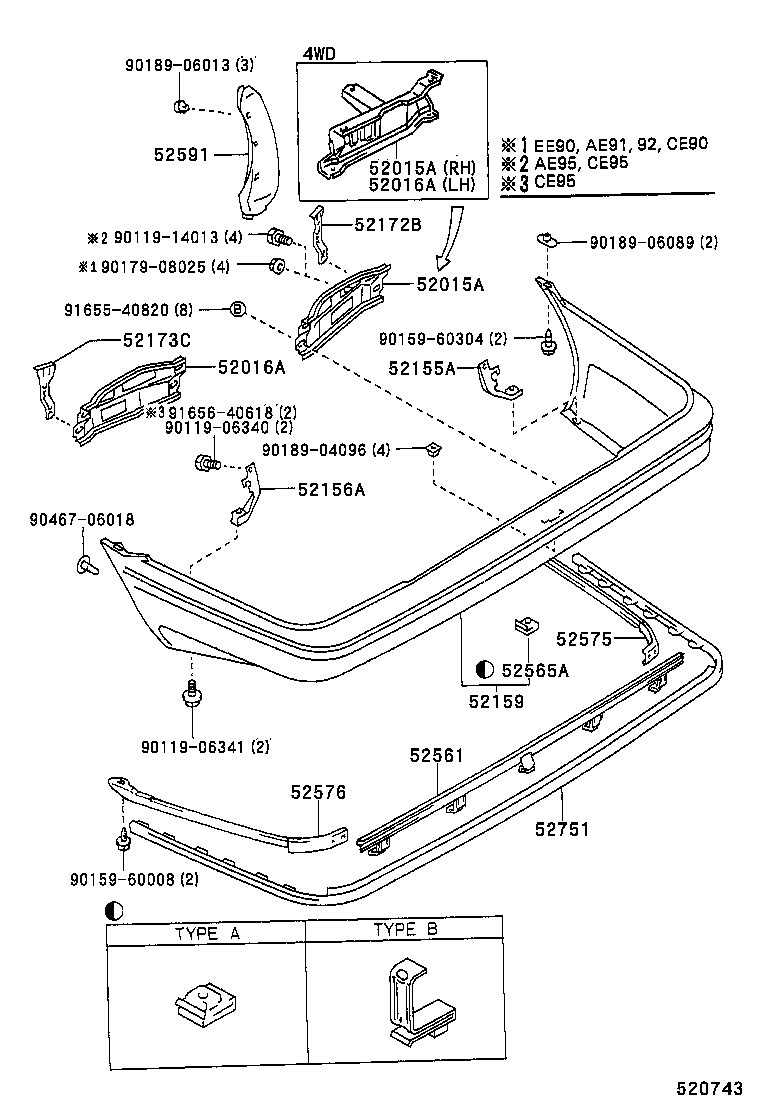

Click highlighted areas on diagram

diagram 52015A 52015A 52016A 52016A 52155A 52156A 52159 52172B 52173C 52561 52565A 52575 52576 52591 52751 9011906340 9011906341 9011914013 9015960008 9015960304 9017908025 9018904096 9018906013 9018906089 9046706018 9165540820 9165640618
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52181-12300

AE91,92..5D

 1
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52181-12300

AE91,92..5D

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52182-12250

AE91,92..5D

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52182-12250

AE91,92..5D

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-12150

AE9#,CE90,95,EE90..4D,5D

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-12140

AE91,92,CE90,EE90

 1
52159 - COVER, REAR BUMPER
52159-12770

AE91,92..5D

 1
52172B - REINFORCEMENT, REAR BUMPER, NO.2
52172-12140

AE91,92..5D

 1
52173C - REINFORCEMENT, REAR BUMPER, NO.3
52173-12130

AE91,92..5D

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

AE9#..(5D,WG)..(AV1,G,GT,L,XI)

TYPE A

 8
52565-12040

AE91..L

ﾀｲﾌﾟ A

 8
52565-12160

AE91..L

ﾀｲﾌﾟ D

 1
52565-12160

AE91,92..5D

ﾀｲﾌﾟ D

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12050

AE9#,CE90,EE90..4D,5D

 1
52751 - MOULDING, REAR BUMPER
52751-12150

AE91,92..5D

 1
Common parts
90119-06340
90119-06341
90119-14013
90159-60008
90159-60304
90179-08025
90189-04096
90189-06013
90189-06089
90467-06018
91655-40820
91656-40618
