AE91-BLMGK (1989)

Toyota Sprinter

Production May 1989 - Jun 1991
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )5AFE

Click highlighted areas on diagram

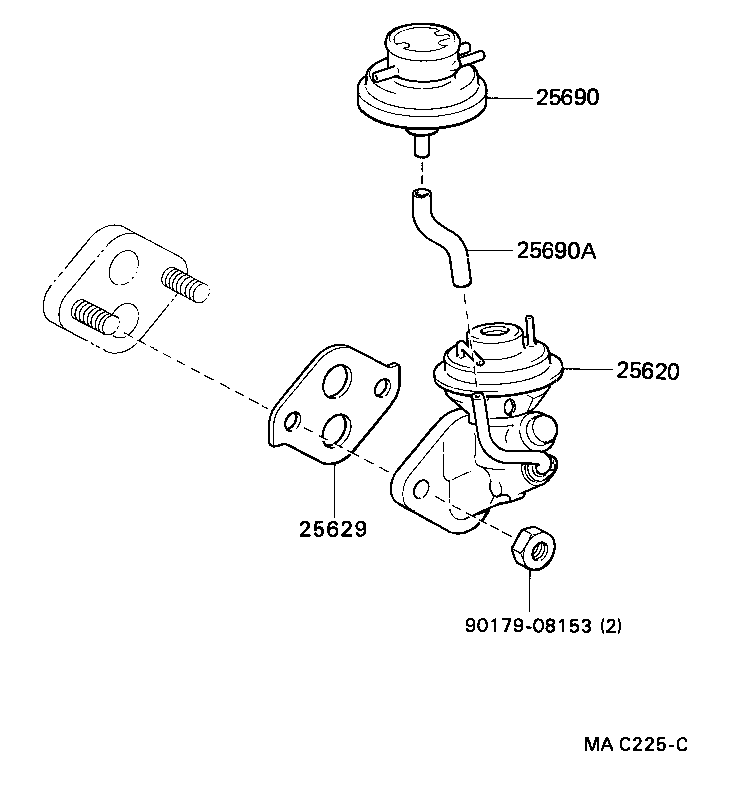

diagram 25620 25629 25690 25690A 9017908153
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-15320

4AF,5AF..AE91,95

 1
25620-15340

5AFE..AE91

 1
25629 - GASKET, EGR VALVE ADAPTER
25627-16020

5AFE..AE91

 1
25629-15020

4AF,5AF..AE91,95

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-15200

5AF..AE91

 1
25870-15230

5AFE..AE91

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11017

4AF,5AF..AE91,95

 1
25695-16050

5AFE..AE91

 1
Common parts
90179-08153
