AE91-BLMGK (1987)

Toyota Sprinter

Production May 1987 - May 1989
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

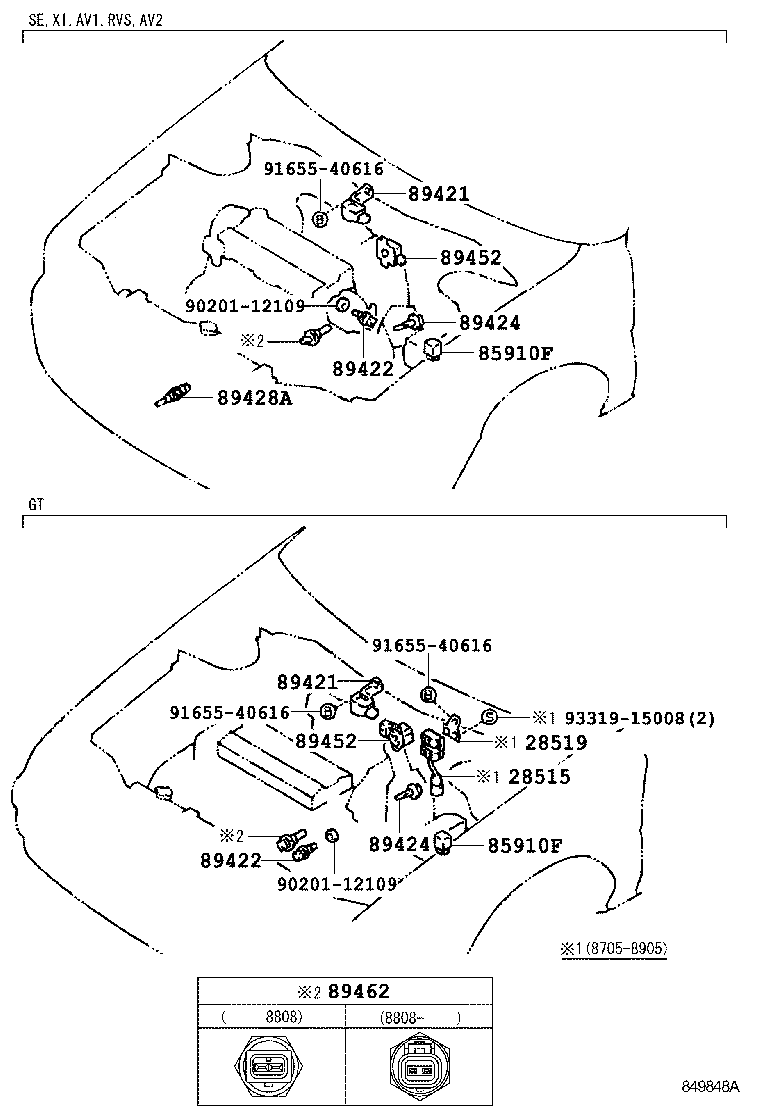

ILLUST NO. 1 OF 2(8705- )EFI,EFIS

Click highlighted areas on diagram

diagram 28515 28519 85910F 85910F 89421 89421 89422 89422 89424 89424 89428A 89452 89452 89462 9020112109 9020112109 9165540616 9165540616 9165540616 9331915008
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02006

AE9#..EFI,EFIS

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02006

AE9#..EFI,EFIS

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12010

AE9#..EFI

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12010

AE9#..EFI

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-12010

AE9#..EFI

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-12010

AE9#..EFI

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AE9#..EFI,EFIS

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AE9#..EFI,EFIS

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12010

AE91,95..EFI

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12010

AE91,95..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-12010

AE9#..EFI

 1
89462-20030

AE9#..EFI

 1
Common parts
90201-12109
91655-40616
93319-15008

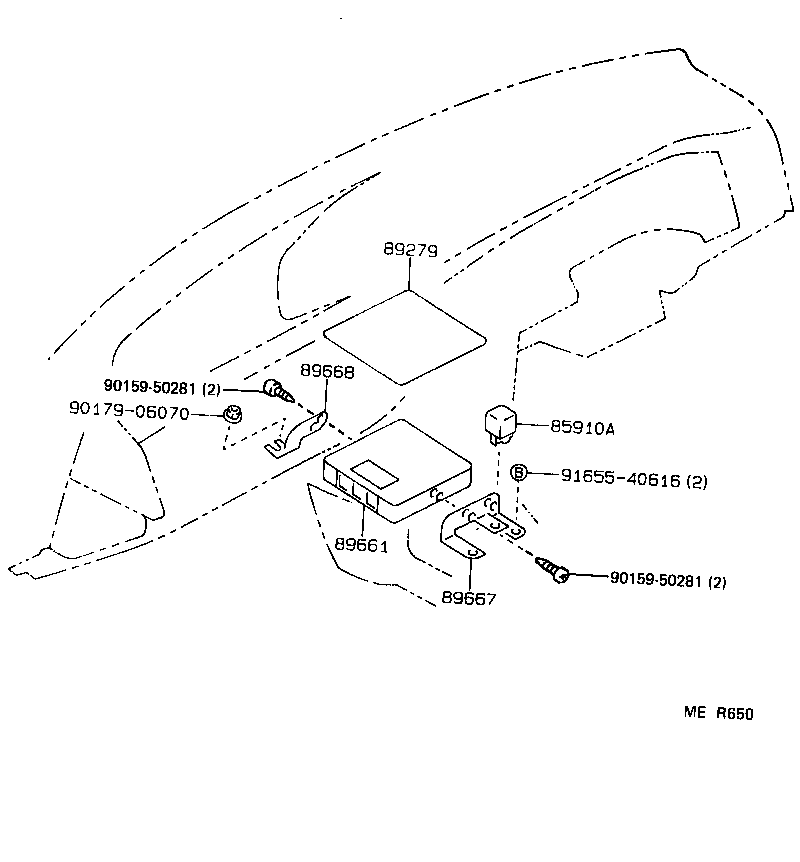

ILLUST NO. 2 OF 2(8705- )EFI,EFIS ; (8705- )EE96..3FC

Click highlighted areas on diagram

diagram 85910A 89279 89661 89667 89668 9015950281 9015950281 9017906070 9165540616
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010

AE9#..EFI,EFIS

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12232

AE91..EFI

 1
89661-12230

AE91..EFI

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12020

AE91,92..EFI,EFIS

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12030

AE9#..EFI,EFIS

 1
Common parts
90159-50281
90179-06070
91655-40616
