AE91-BLMGK (1987)

Toyota Sprinter

Production May 1987 - May 1989
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )5D

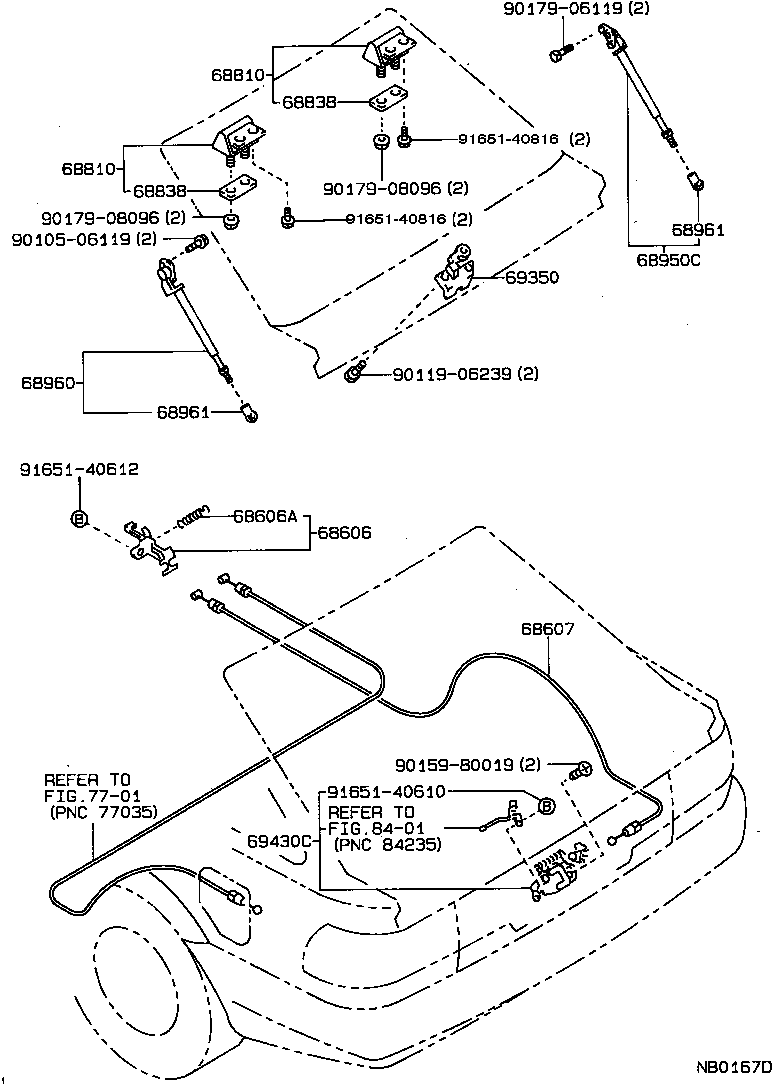

Click highlighted areas on diagram

diagram 68606 68606A 68607 68810 68810 68838 68838 68950C 68960 68961 68961 69350 69430C 7701 8401 9010506119 9011906239 9015980019 9017906119 9017908096 9017908096 9165140610 9165140612 9165140816 9165140816
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12060

AE91,92..5D

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

AE91,92..5D

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-12450

AE91,92..5D

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12030

AE91,92..5D

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12030

AE91,92..5D

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AE91,92..5D

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AE91,92..5D

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-19585

AE91..5D

 1
68950-19595

AE91..G,XI

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
68950-19596

AE91..G,XI

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-19275

AE91..5D

 1
68960-19285

AE91..G,XI

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
68960-19286

AE91..G,XI

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
68961 - BOLT, BACK DOOR STAY
68961-12040

AE91,92..5D

 2
68961 - BOLT, BACK DOOR STAY
68961-12040

AE91,92..5D

 2
69350 - LOCK ASSY, BACK DOOR
69350-12110

AE91,92..5D

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-12180

AE91,92..5D

 1
Common parts
90105-06119
90119-06239
90159-80019
90179-06119
90179-08096
91651-40610
91651-40612
91651-40816
Linked diagrams
7701
8401
