AE91-BEPEH (1989)
Toyota Sprinter
(8905- )4D

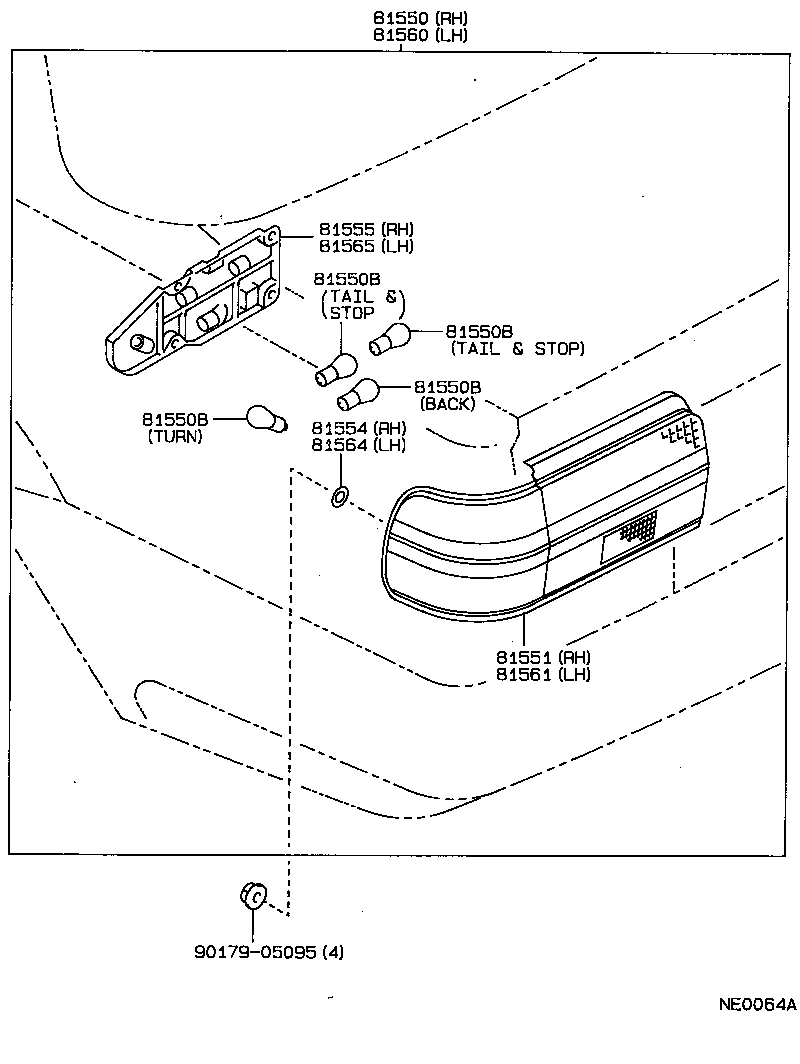

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-1A400 |
AE9#,CE90,EE90..4D |
1 | ||
| 81550-1A402 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A400 |
AE9#,CE90,EE90..4D |
1 | ||
| 81551-1A402 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-32150 |
AE9#,CE90,95,EE90..4D NO.2 |
3 | ||
| 81554-32150 |
AE9#,CE90,EE90..4D |
2 | ||
| 81552-1A402 |
AE9#,CE90,95,EE90..4D NO.1 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-32150 |
AE9#,CE90,95,EE90..4D NO.2 |
3 | ||
| 81554-32150 |
AE9#,CE90,EE90..4D |
2 | ||
| 81552-1A402 |
AE9#,CE90,95,EE90..4D NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A400 |
AE9#,CE90,EE90..4D |
1 | ||
| 81555-1A402 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-1A360 |
AE9#,CE90,EE90..4D |
1 | ||
| 81560-1A362 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A360 |
AE9#,CE90,EE90..4D |
1 | ||
| 81561-1A362 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-32150 |
AE9#,CE90,EE90..4D |
2 | ||
| 81552-1A402 |
AE9#,CE90,95,EE90..4D NO.1 |
1 | ||
| 81554-32150 |
AE9#,CE90,95,EE90..4D NO.2 |
3 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-32150 |
AE9#,CE90,EE90..4D |
2 | ||
| 81552-1A402 |
AE9#,CE90,95,EE90..4D NO.1 |
1 | ||
| 81554-32150 |
AE9#,CE90,95,EE90..4D NO.2 |
3 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-1A360 |
AE9#,CE90,EE90..4D |
1 | ||
| 81565-1A362 |
AE9#,CE90,95,EE90..4D |
1 | ||
| Common parts | ||||
| 90179-05048 | ||||
(8705-8908)4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-1A400 |
AE9#,CE90,EE90..4D |
1 | ||
| 81550-1A402 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,12V 21/5W,STOP & TAIL |
4 | ||
| 99132-21210 |
AE9#,CE90,EE90..4D 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D 12V 21W,TURN OR BACK |
4 | ||
| 99132-21210 |
AE9#,CE90,95,EE90..4D,WG 12V 21/5W,TAIL & STOP |
4 | ||
| 99132-11210 |
AE9#,CE90,EE90..4D,5D 12V 21W,TURN OR BACK UP |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1A400 |
AE9#,CE90,EE90..4D |
1 | ||
| 81551-1A402 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-32150 |
AE9#,CE90,95,EE90..4D NO.2 |
3 | ||
| 81554-32150 |
AE9#,CE90,EE90..4D |
2 | ||
| 81552-1A402 |
AE9#,CE90,95,EE90..4D NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A400 |
AE9#,CE90,EE90..4D |
1 | ||
| 81555-1A402 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-1A360 |
AE9#,CE90,EE90..4D |
1 | ||
| 81560-1A362 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1A360 |
AE9#,CE90,EE90..4D |
1 | ||
| 81561-1A362 |
AE9#,CE90,95,EE90..4D |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-32150 |
AE9#,CE90,EE90..4D |
2 | ||
| 81552-1A402 |
AE9#,CE90,95,EE90..4D NO.1 |
1 | ||
| 81554-32150 |
AE9#,CE90,95,EE90..4D NO.2 |
3 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-1A360 |
AE9#,CE90,EE90..4D |
1 | ||
| 81565-1A362 |
AE9#,CE90,95,EE90..4D |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
