AE91-BEKNK (1989)

Toyota Sprinter

Production May 1989 - Jun 1991
Engine 5AFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )AE91,92

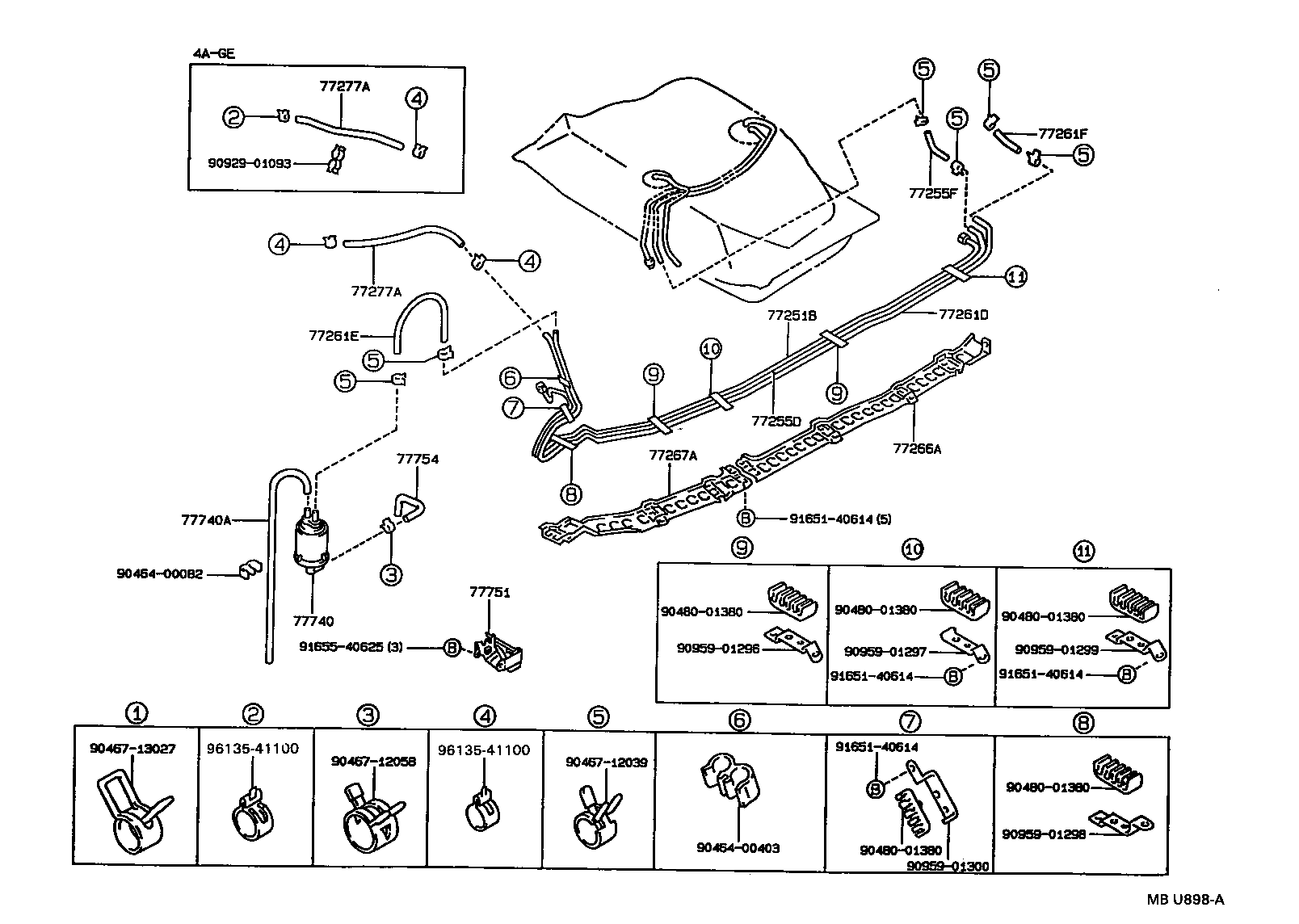

Click highlighted areas on diagram

diagram 77251B 77255D 77255F 77261D 77261E 77261F 77266A 77267A 77277A 77277A 77740 77740A 77751 77754 9046400082 9046400403 9046712039 9046712058 9046713027 9048001380 9048001380 9048001380 9048001380 9048001380 9092901093 9095901296 9095901297 9095901298 9095901299 9095901300 9165140614 9165140614 9165140614 9165140614 9165540625 9613541100 9613541100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-12360

AE91,92..EFI,EFIS

 1
77255D - TUBE, FUEL RETURN
77255-12340

AE91,92,CE90,96..DSL,EFI,EFIS

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

AE91,92..EFI,EFIS

*H,L=200

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12250

AE91,92,CE90,96,EE9#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12120

AE9#..EFI,EFIS

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE91,92,CE90,96,EE9#

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12030

AE91,92,CE90,96,EE9#

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE9#,CE9#,EE9#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12091

AE9#..EFI

長さ=410

 1
90447-12102

AE91

長さ=340

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12091

AE9#..EFI

長さ=410

 1
90447-12102

AE91

長さ=340

 1
77740 - CANISTER ASSY, CHARCOAL
77704-12370

AE91,92,EE90

 1
77704-12370

AE91,92..EFI

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95413-49939

AE91..EFI,EFIS

長さ=390

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12010

AE9#..EFI,EFIS

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12060

AE9#..EFI

 1
77754-12150

AE9#

 1
Common parts
90464-00082
90464-00403
90467-12039
90467-12058
90467-13027
90480-01380
90929-01093
90959-01296
90959-01297
90959-01298
90959-01299
90959-01300
91651-40614
91655-40625
96135-41100
