AE91-BEHDU (1987)

Toyota Sprinter

Production May 1987 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4D

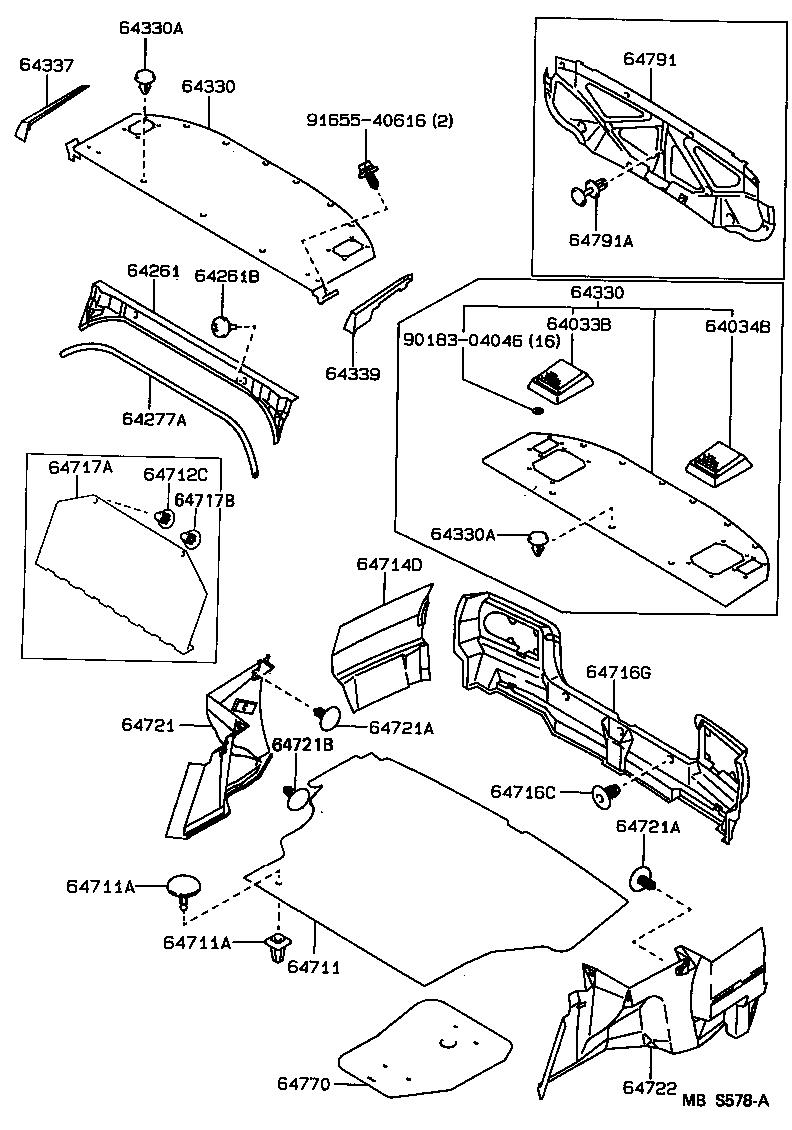

Click highlighted areas on diagram

diagram 64033B 64034B 64261 64261B 64277A 64330 64330 64330A 64330A 64337 64339 64711 64711A 64711A 64712C 64714D 64716C 64716G 64717A 64717B 64721 64721A 64721A 64721B 64722 64770 64791 64791A 9018304046 9165540616
Part # Description Qty Price
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1277005

AE91,95,CE90,EE90..LX,MX

DARK BEIGE,TRIM4#

 1
64330-1277003

AE91,95,CE90,95,EE90..DX,LX,MX

SHADOW GRAY,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1277005

AE91,95,CE90,EE90..LX,MX

DARK BEIGE,TRIM4#

 1
64330-1277003

AE91,95,CE90,95,EE90..DX,LX,MX

SHADOW GRAY,TRIM1#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0804605

AE91,95,CE90,EE90..LX,MX,SE

DARK BEIGE,TRIM4#

 3
90467-08046E1

AE91,95,CE90,EE90..LX,MX,SE

DARK BEIGE,TRIM4#

 3
90467-0804603

AE9#,CE90,95,EE90..4D

GRAY,TRIM1#

 3
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0804605

AE91,95,CE90,EE90..LX,MX,SE

DARK BEIGE,TRIM4#

 3
90467-08046E1

AE91,95,CE90,EE90..LX,MX,SE

DARK BEIGE,TRIM4#

 3
90467-0804603

AE9#,CE90,95,EE90..4D

GRAY,TRIM1#

 3
64337 - GARNISH, PACKAGE TRAY TRIM, RH
64337-1204005

AE91,95,CE90,EE90..LX,MX,SE

DARK BEIGE,TRIM4#

 1
64337-1204003

AE9#,CE90,95,EE90..4D

SHADOW GRAY,TRIM1#

 1
64339 - GARNISH, PACKAGE TRAY TRIM, LH
64339-1202003

AE9#,CE90,95,EE90..4D

SHADOW GRAY,TRIM1#

 1
64339-1202005

AE91,95,CE90,EE90..LX,MX,SE

DARK BEIGE,TRIM4#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-1218003

AE91,CE90,EE90..LX

LIGHT GRAY,TRIM1#,4#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-1003401

AE91,95,CE90,EE90..LX

BLACK,TRIM1#,4#

 2
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-12120

AE9#,CE90,95,EE90..4D

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-1202003

AE91,CE90,EE90..LX

GRAY,TRIM1#,4#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-1205003

AE91,92,CE90,EE90..4D..(DX,GT,LX)

LIGHT GRAY,TRIM1#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704203

AE91,95,CE90,EE90..LX

GRAY,TRIM1#,4#

 2
90467-07042B0

AE91,95,CE90,EE90..LX

LIGHT GRAY,TRIM1#,4#

 2
90467-0704203

AE9#,CE90,EE90..4D..(DX,GT,LX)

GRAY,TRIM1#

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704203

AE91,95,CE90,EE90..LX

GRAY,TRIM1#,4#

 2
90467-07042B0

AE91,95,CE90,EE90..LX

LIGHT GRAY,TRIM1#,4#

 2
90467-0704203

AE9#,CE90,EE90..4D..(DX,GT,LX)

GRAY,TRIM1#

 2
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-1205003

AE91,92,CE90,EE90..4D..(DX,GT,LX)

LIGHT GRAY,TRIM1#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-12100

AE91,92,CE90,EE90..4D

 1
64791 - COVER, BACK DOOR TRIM
64791-1203003

AE91,95,CE90,EE90..LX

LIGHT GRAY,TRIM1#,4#

 1
64791A - CLIP(FOR BACK DOOR TRIM)
90467-0707203

AE91,95,CE90,EE90..LX

GRAY,TRIM1#,4#

 11
Common parts
90183-04046
91655-40616
