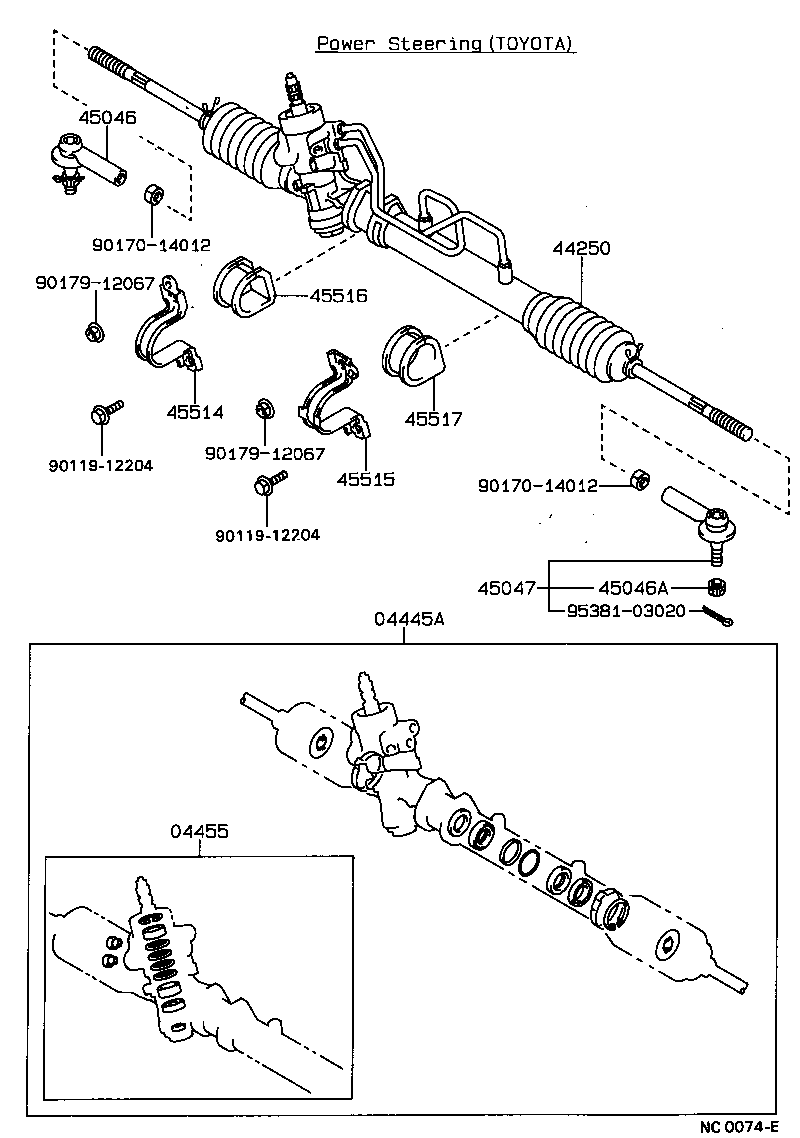

AE91-BEHDU (1987)
Toyota Sprinter
(8705-8905)AE91,EE90..DX,L,LX,MX ; (8705-8905)AE95,CE90..AV1,DX,LX,RVS ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE9#,CE9#,EE9# |
2 | ||
| 90171-12028 |
AE9#,CE9#,EE9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12110 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45501-12110 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AE95,CE90..AV1,DX,LX,RVS;AE91,CE96,EE9#..DX,L,LX,MX,STD,XL |
1 | ||
| 90311-15001 |
AE95,CE90..AV1,DX,LX,RVS;AE91,CE96,EE9#..DX,L,LX,MX,STD,XL |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12210 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45510-12210 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12070 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45514-12070 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45514-12080 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45514-12080 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12160 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515-12160 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515-12140 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515-12140 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 45516-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-12110 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-12120 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45517-12120 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12190 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45521-12190 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-17010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45522-17010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 45523-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 45523-12040 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45523-12040 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45523-12020 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45523-12020 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29016 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90501-29016 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90501-29016 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90501-29016 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90501-26038 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 90501-26038 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12010 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45524-12010 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45524-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45524-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45524-16010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45524-16010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90179-33003 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90179-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90179-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90179-36002 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 90179-36002 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535-12011 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45536-12030 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45536-12030 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12050 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45541-12050 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
EE90;AE91,95,CE90..AV1,DX,L,LX,RVS |
1 | ||
| 90363-15003 |
EE90;AE91,95,CE90..AV1,DX,L,LX,RVS |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
EE90;AE91,95,CE90..AV1,DX,L,LX,RVS |
1 | ||
| 90363-13001 |
EE90;AE91,95,CE90..AV1,DX,L,LX,RVS |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45545-10010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 90179-38001 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 93269-63020 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(8705- )EE96,98 ; (8705- )AE92,95,CE90,EE90..AV1,AV2,GT,LX,MX,RVS,SE ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12061 |
AE91..LX |
1 | ||
| 04445-12061 |
AE91..LX |
1 | ||
| 04445-12060 |
AE91..LX |
1 | ||
| 04445-12060 |
AE91..LX |
1 | ||
| 04445-12060 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04445-12060 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04445-12061 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04445-12061 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12040 |
AE91..LX |
1 | ||
| 04455-12040 |
AE91..LX |
1 | ||
| 04455-12041 |
AE91..LX |
1 | ||
| 04455-12041 |
AE91..LX |
1 | ||
| 04455-12041 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04455-12041 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04455-12040 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04455-12040 |
AE91..G,L,MX,SE,XI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12220 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44250-12220 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44250-12220 |
AE91..LX TOYOTA |
1 | ||
| 44250-12220 |
AE91..LX TOYOTA |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE9#,CE9#,EE9# |
2 | ||
| 90171-12028 |
AE9#,CE9#,EE9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12070 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45514-12070 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45514-12080 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45514-12080 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12160 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515-12160 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515-12140 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45515-12140 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 45516-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-12110 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-12120 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45517-12120 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8705- )EE96,98 ; (8705- )AE92,95,CE90,EE90..AV1,AV2,GT,LX,MX,RVS,SE ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12160 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44201-12160 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44201-12160 |
AE91..LX TOYOTA |
1 | ||
| 44201-12160 |
AE91..LX TOYOTA |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
AE91..LX TOYOTA |
1 | ||
| 94184-61200 |
AE91..LX TOYOTA |
1 | ||
| 94184-61200 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 94184-61200 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90369-19005 |
AE91..LX TOYOTA |
1 | ||
| 90369-19005 |
AE91..LX TOYOTA |
1 | ||
| 90369-19005 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90369-19005 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
AE91..LX TOYOTA |
1 | ||
| 90363-12008 |
AE91..LX TOYOTA |
1 | ||
| 90363-12008 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90363-12008 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44204-12030 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44204-12030 |
AE91..LX TOYOTA |
1 | ||
| 44204-12030 |
AE91..LX TOYOTA |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX TOYOTA,OUTER |
1 | ||
| 90301-33003 |
AE91..LX TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX TOYOTA,OUTER |
1 | ||
| 90301-33003 |
AE91..LX TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,INNER |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12100 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44240-12100 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44240-12100 |
AE91..LX TOYOTA |
1 | ||
| 44240-12100 |
AE91..LX TOYOTA |
1 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
AE91..LX |
1 | ||
| 90311-19007 |
AE91..LX |
1 | ||
| 90311-19007 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90311-19007 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
AE91..LX TOYOTA |
1 | ||
| 44275-12020 |
AE91..LX TOYOTA |
1 | ||
| 44275-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44275-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44283-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44283-12010 |
AE91..LX TOYOTA |
1 | ||
| 44283-12010 |
AE91..LX TOYOTA |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12130 |
AE91..LX TOYOTA |
1 | ||
| 44418-12130 |
AE91..LX TOYOTA |
1 | ||
| 44418-12130 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44418-12130 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12130 |
AE91..LX TOYOTA |
1 | ||
| 44419-12130 |
AE91..LX TOYOTA |
1 | ||
| 44419-12130 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44419-12130 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-12090 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45222-12090 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45222-12090 |
AE91..LX TOYOTA |
1 | ||
| 45222-12090 |
AE91..LX TOYOTA |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 45523-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 45523-12040 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45523-12040 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45523-12020 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45523-12020 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29016 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90501-29016 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90501-29016 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90501-29016 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90501-26038 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 90501-26038 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12010 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45524-12010 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45524-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45524-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45524-16010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45524-16010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90179-33003 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90179-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90179-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90179-36002 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 90179-36002 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535-12011 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45536-12030 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45536-12030 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
ILLUST NO. 1 OF 2(8705-8905)AE91..G,L,LX,MX,SE,XI ; (8905- )AE91..G,L,LX,MX,SE,XS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12061 |
AE91..LX |
1 | ||
| 04445-12060 |
AE91..LX |
1 | ||
| 04445-12060 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04445-12061 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12040 |
AE91..LX |
1 | ||
| 04455-12041 |
AE91..LX |
1 | ||
| 04455-12041 |
AE91..G,L,MX,SE,XI |
1 | ||
| 04455-12040 |
AE91..G,L,MX,SE,XI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12220 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44250-12220 |
AE91..LX TOYOTA |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE9#,CE9#,EE9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE9#,CE9#,EE9# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12070 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45514-12080 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12160 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| 45515-12140 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE9#,CE9#,EE9# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12110 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-12120 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
1 | ||
| Common parts | ||||
| 90119-12204 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8705-8905)AE91..G,L,LX,MX,SE,XI ; (8905- )AE91..G,L,LX,MX,SE,XS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12160 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44201-12160 |
AE91..LX TOYOTA |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
AE91..LX TOYOTA |
1 | ||
| 94184-61200 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
1 | ||
| 90560-12030 |
AE91..LX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
4 | ||
| 90562-33002 |
AE91..LX TOYOTA |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90369-19005 |
AE91..LX TOYOTA |
1 | ||
| 90369-19005 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
AE91..LX TOYOTA |
1 | ||
| 90363-12008 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44204-12030 |
AE91..LX TOYOTA |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX TOYOTA,OUTER |
1 | ||
| 90301-33003 |
AE91..LX TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,OUTER |
1 | ||
| 90562-37001 |
AE91..LX TOYOTA,OUTER |
1 | ||
| 90301-33003 |
AE91..LX TOYOTA,INNER |
1 | ||
| 90301-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA,INNER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24007 |
AE91..LX |
1 | ||
| 90310-24007 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24008 |
AE91..LX |
1 | ||
| 90310-24008 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
AE91..LX |
1 | ||
| 90560-24005 |
AE91..G,L,MX,SE,XI |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25007 |
AE91..LX |
1 | ||
| 90560-25007 |
AE91..G,L,MX,SE,XI |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12100 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44240-12100 |
AE91..LX TOYOTA |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-06002 |
AE91..LX |
2 | ||
| 90410-06002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
2 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
AE91..LX |
1 | ||
| 90311-19007 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23005 |
AE91..LX |
1 | ||
| 90310-23005 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-41003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
1 | ||
| 90521-41003 |
AE91..LX |
1 | ||
| 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) | ||||
| 90389-28001 |
AE91..LX |
1 | ||
| 90389-28001 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
AE91..LX TOYOTA |
1 | ||
| 44275-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS |
1 | ||
| 90521-50002 |
AE91..LX |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12020 |
AE91..LX |
1 | ||
| 44277-12020 |
AE91..G,L,MX,SE,XI |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44283-12010 |
AE91..LX TOYOTA |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12130 |
AE91..LX TOYOTA |
1 | ||
| 44418-12130 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12130 |
AE91..LX TOYOTA |
1 | ||
| 44419-12130 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-12090 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45222-12090 |
AE91..LX TOYOTA |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19135 |
AE91..L ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..L;AE95..AV1,LX,RVS ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91,EE90..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19135 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 45503-19125 |
EE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE9#,CE9#,EE9# 外径=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12020 |
AE91..G,L,MX,SE,XI TOYOTA |
1 | ||
| 45523-12040 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45523-12020 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29016 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90501-29016 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90501-26038 |
AE91..(DX,L,LX)..EFI;AE91,EE9#..(CTD,DX,L,LX,MX,STD,XL)..CBR |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12010 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45524-12010 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45524-16010 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 90179-33003 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 90179-36002 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01081 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
2 | ||
| 90949-01081 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
2 | ||
| 90949-01082 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.2 BOOT |
1 | ||
| 90461-10273 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL NO.1 BOOT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE9#,CE9#,EE9# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12040 |
AE91..LX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),TOYOTA |
1 | ||
| 45535-12040 |
AE91..LX..EFI;AE91..G,L,MX,SE,XI,XS TOYOTA |
1 | ||
| 45536-12030 |
AE91..(DX,L,LX)..EFI;AE91,EE90..(DX,L,LX,MX)..CBR;AE95,CE9#,EE96,98..AV1,DX,LX,RVS,STD,XL |
1 | ||
| Common parts | ||||
| 93269-63020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
