AE91-BEHBU (1988)

Toyota Sprinter

Production May 1988 - May 1989
Engine 5AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

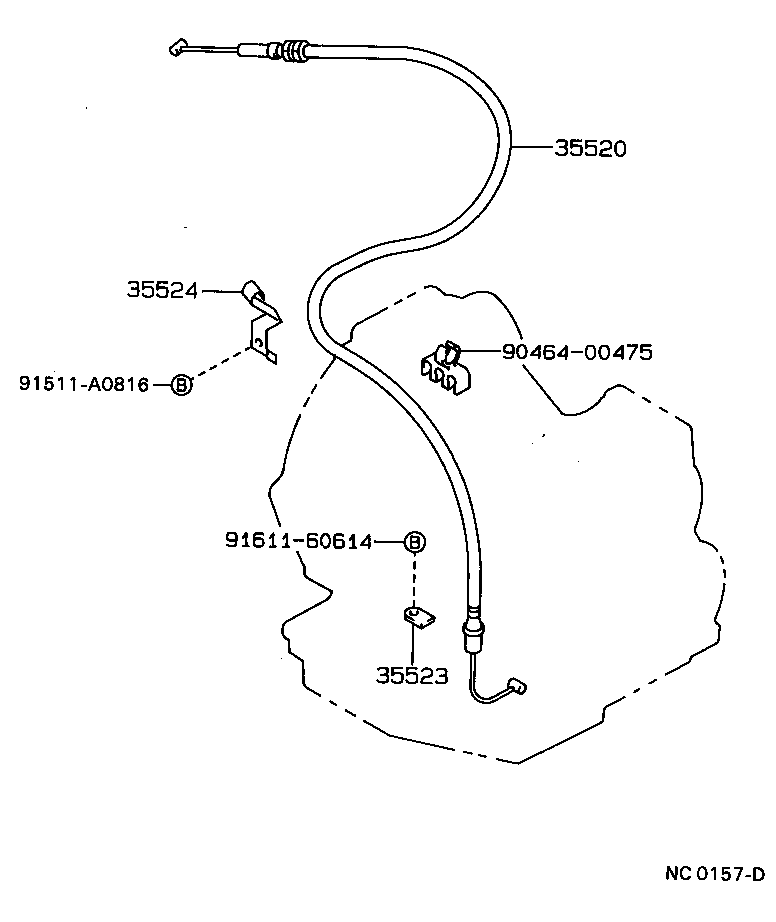

ILLUST NO. 2 OF 2(8705-8905)AE91..3FC

Click highlighted areas on diagram

A131L,A132L

diagram 35520 35523 35524 9046400475 91511A0816 9161160614
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-12240

AE91,95..ATM..CBR

 1
35523 - CLAMP, THROTTLE CABLE
35523-12080

AE91..3FC

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35523-12150

AE91,95..ATM..CBR

 1
Common parts
90464-00475
91511-A0816
91611-60614
