AE82-FLPSE (1983)
Toyota Sprinter

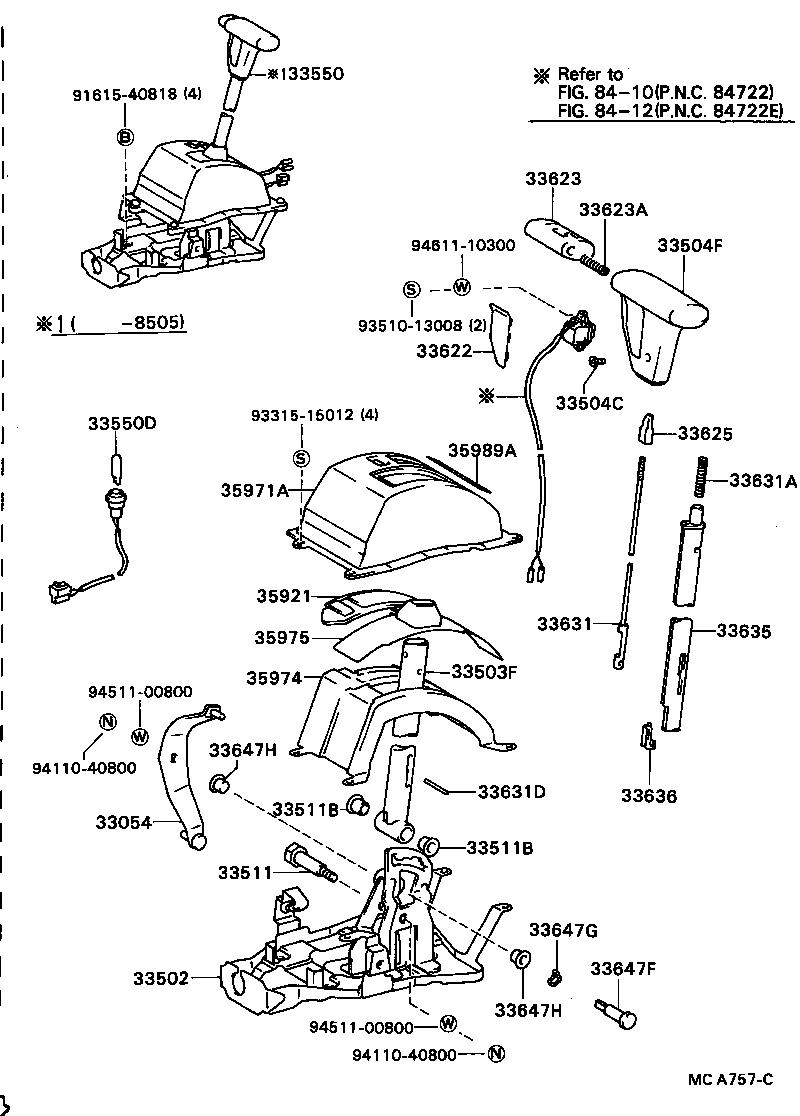

ILLUST NO. 1 OF 2(8305-8401)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12010 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-12190 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12280 |
AE81,82,CE80..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90149-40004 |
AE81,82,CE80..4FC |
2 | ||
| 90159-40109 |
AE81,82,CE80..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3201003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33542-3201002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-2006002 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-2006003 |
AE81,82,CE80..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33542-3201004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-2006004 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE8#,CE80,EE80..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE8#,CE80,EE80..ATM |
2 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-1232003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33550-1232004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1236003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33550-1232002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33550-1236002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33550-1236006 |
AE82..5D..4FC BROWN,BROWN,TRIM4# |
1 | ||
| 33550-1236004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
AE8#,CE80,EE80..ATM 12V 1.7W,12V 1.7W |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3202004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622-3202002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33622-1601002 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33622-3202003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3201002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33623-3201004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3201003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602002 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) MAROON,DARK MAROON,TRIM3# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33624 - HOLDER, KNOB COVER | ||||
| 33624-32010 |
AE82..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
AE81,82,CE80..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-32011 |
AE81,82,CE80..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AE81,82,CE80..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-32010 |
AE82..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE8#,CE80,EE80..ATM |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE8#,CE80,EE80..ATM |
2 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12180 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12090 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12080 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12100 |
AE81,82,CE80..4FC |
1 | ||
| 35989A - PLATE, TRANSMISSION NAME | ||||
| 35989-12010 |
AE82..4FC |
1 | ||
| Common parts | ||||
| 91615-40818 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8412 | ||||

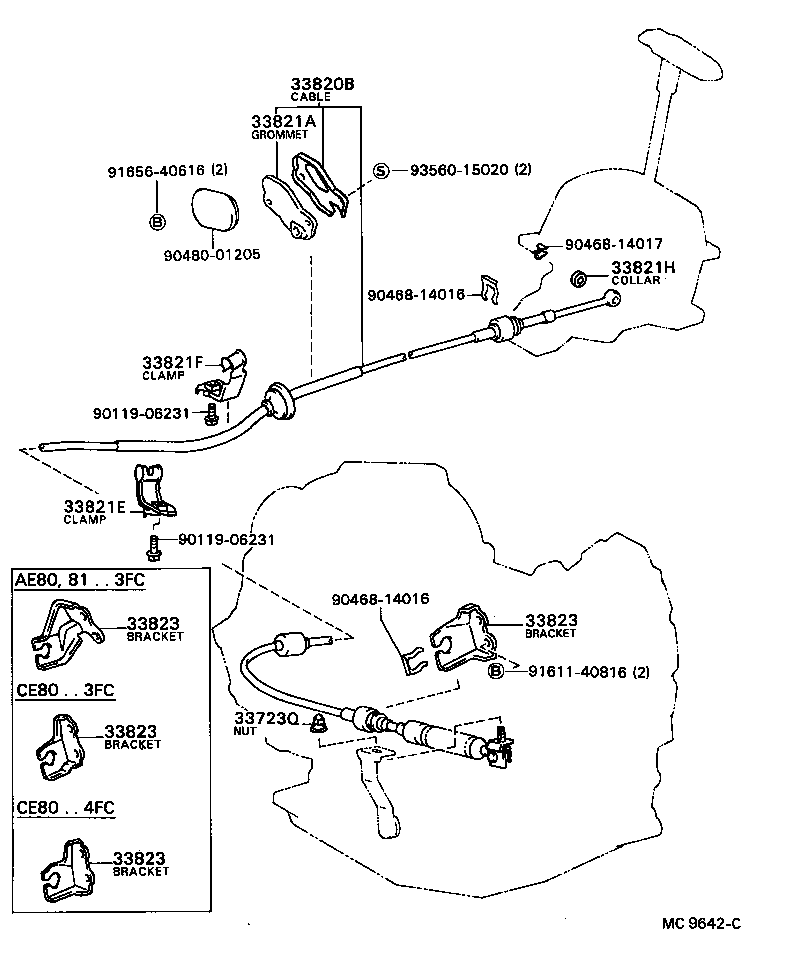

ILLUST NO. 2 OF 2(8305- )AE8#,CE80..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08070 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20020 |
AE8#,CE80..ATM..(DX,SE,SR,SX,XL,ZX) |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01203 |
AE8#,CE80..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01070 |
AE8#,CE80..ATM..(DX,SE,SR,SX,XL,ZX) |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01130 |
AE8#,CE80..ATM |
1 | ||
| 33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90386-10014 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12020 |
AE81,82..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12020 |
AE81,82..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12020 |
AE81,82..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12020 |
AE81,82..4FC |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90480-01205 | ||||
| 91611-40816 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
ILLUST NO. 1 OF 2(8401- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-12010 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-12190 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12280 |
AE81,82,CE80..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90149-40004 |
AE81,82,CE80..4FC |
2 | ||
| 90159-40109 |
AE81,82,CE80..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3201003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33542-3201002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-2006002 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33542-2006003 |
AE81,82,CE80..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33542-3201004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33542-2006004 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE8#,CE80,EE80..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11003 |
AE8#,CE80,EE80..ATM |
2 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-1232003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33550-1232004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550-1236003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33550-1232002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33550-1236002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33550-1236006 |
AE82..5D..4FC BROWN,BROWN,TRIM4# |
1 | ||
| 33550-1236004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
AE8#,CE80,EE80..ATM 12V 1.7W,12V 1.7W |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3202004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33622-3202002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33622-1601002 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33622-3202003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3201002 |
AE82..5D..4FC MAROON,RED/MAROON,TRIM3# |
1 | ||
| 33623-3201004 |
AE82..5D..4FC BLUE,BLUE,TRIM8# |
1 | ||
| 33623-3201003 |
AE82..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 33623-1602002 |
AE81,82,CE80..4FC..(SE,SX,XL,ZX) MAROON,DARK MAROON,TRIM3# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
AE81,82,CE80..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-32011 |
AE81,82,CE80..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AE81,82,CE80..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04001 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-32010 |
AE82..4FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-32010 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-10003 |
AE8#,CE80,EE80..ATM |
1 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE8#,CE80,EE80..ATM |
2 | ||
| 33647H - BUSH (FOR CONTROL LINK SHAFT) | ||||
| 90386-10012 |
AE8#,CE80,EE80..ATM |
2 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12180 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12090 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12080 |
AE8#,CE80,EE80..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12100 |
AE81,82,CE80..4FC |
1 | ||
| 35989A - PLATE, TRANSMISSION NAME | ||||
| 35989-12010 |
AE82..4FC |
1 | ||
| Common parts | ||||
| 91615-40818 | ||||
| 93315-15012 | ||||
| 93510-13008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8412 | ||||
