AE82-FLPSE (1983)

Toyota Sprinter

Production May 1983 - May 1985
Engine 4AELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4AELU

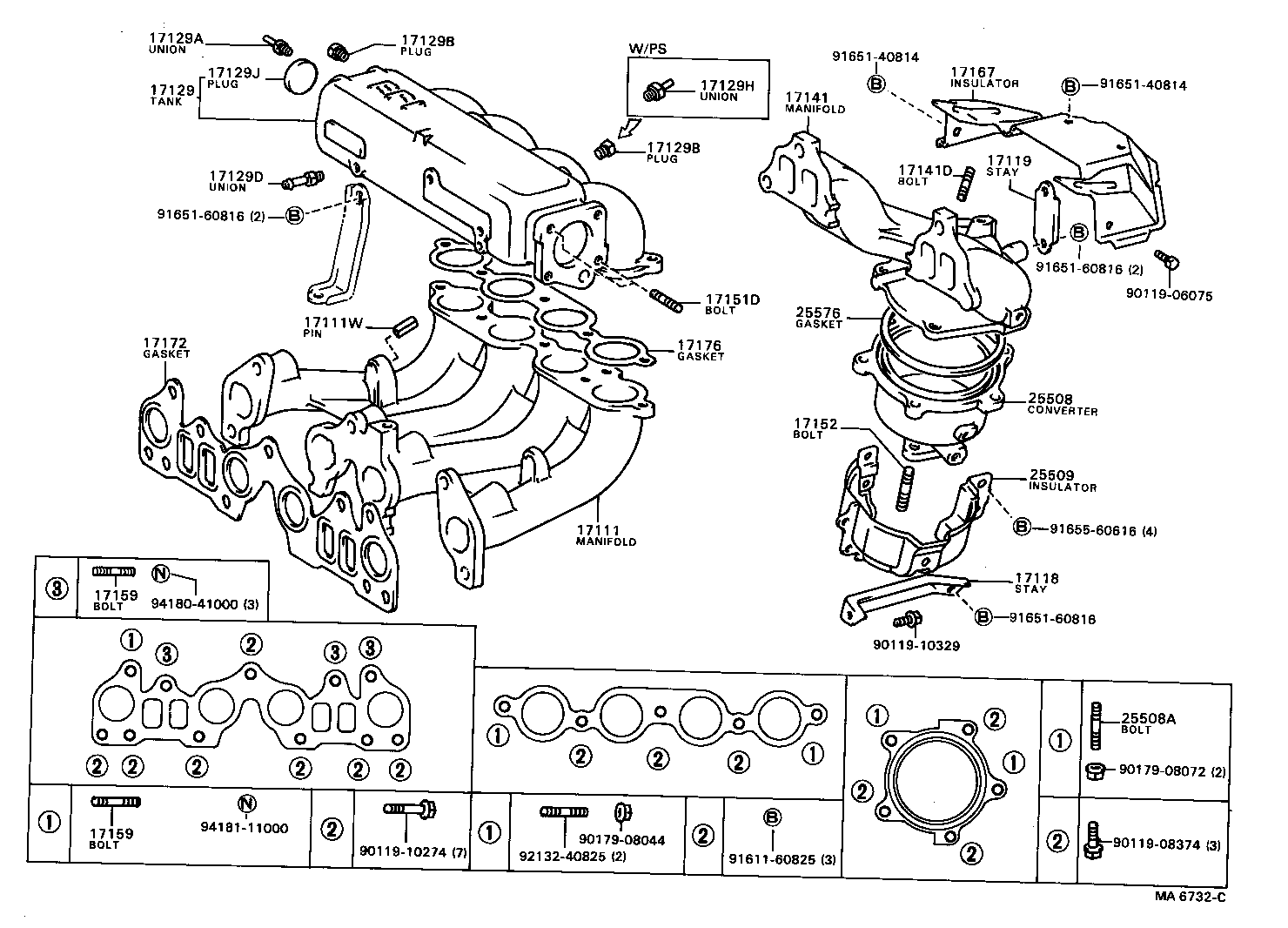

Click highlighted areas on diagram

diagram 17111 17111W 17118 17119 17129 17129A 17129B 17129B 17129D 17129H 17129J 17141 17141D 17151D 17152 17159 17159 17167 17172 17176 25508 25508A 25509 25576 9011906075 9011908374 9011910274 9011910329 9017908044 9017908072 9161160825 9165140814 9165140814 9165160816 9165160816 9165160816 9165560616 9213240825 9418041000 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-16020

4AELU..AE82

 1
17111W - PIN, SLOTTED SPRING(FOR INTAKE MANIFOLD)
90254-11001

4AELU..AE82

 2
17118 - STAY, MANIFOLD
17118-15050

2ALU,3ALU,4AELU..AE8#

 1
17119 - STAY, MANIFOLD, NO.2
17139-16010

4AELU..AE82

 1
17129 - TANK, INTAKE AIR SURGE
17129-16010

4AELU..AE82

 1
17129A - UNION, NO.1
90404-51010

4AELU..AE82

 1
17129B - PLUG
90072-34107

4AELU..AE82

 2
17129B - PLUG
90072-34107

4AELU..AE82

 2
17129D - UNION, NO.2
90404-51096

4AELU..AE82

 1
17129H - UNION, NO.4
90404-51026

4AELU..AE82

W/PS

 1
17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
96411-13500

4AELU..AE82

OD=35

 1
17141 - MANIFOLD, EXHAUST
17141-16020

4AELU..AE82

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2ALU,3ALU,4AELU..AE8#

 2
17151D - BOLT, STUD(MANIFOLD TO THROTTLE BODY)
92122-60840

4AELU..AE82

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2ALU,3ALU,4A#..AE8#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10090

4AELU..AE82

EXHAUST MANIFOLD

 2
92112-61032

4AELU..AE82

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10090

4AELU..AE82

EXHAUST MANIFOLD

 2
92112-61032

4AELU..AE82

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16010

4AELU..AE82

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-16010

4AELU..AE82

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-16010

4AELU..AE82

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-15010

2ALU,3ALU,4AELU..AE8#

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-08171

2ALU,3ALU,4AELU..AE8#

 2
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25509-15010

2ALU,3ALU,4AELU..AE8#

 1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010

2ALU,3ALU,4AELU..AE8#

 1
Common parts
90119-06075
90119-08374
90119-10274
90119-10329
90179-08044
90179-08072
91611-60825
91651-40814
91651-60816
91655-60616
92132-40825
94180-41000
94181-11000
