AE82-FLMSE (1983)

Toyota Sprinter

Production May 1983 - May 1985
Engine 4AELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )AE82..SE,SR,SX,ZX

Click highlighted areas on diagram

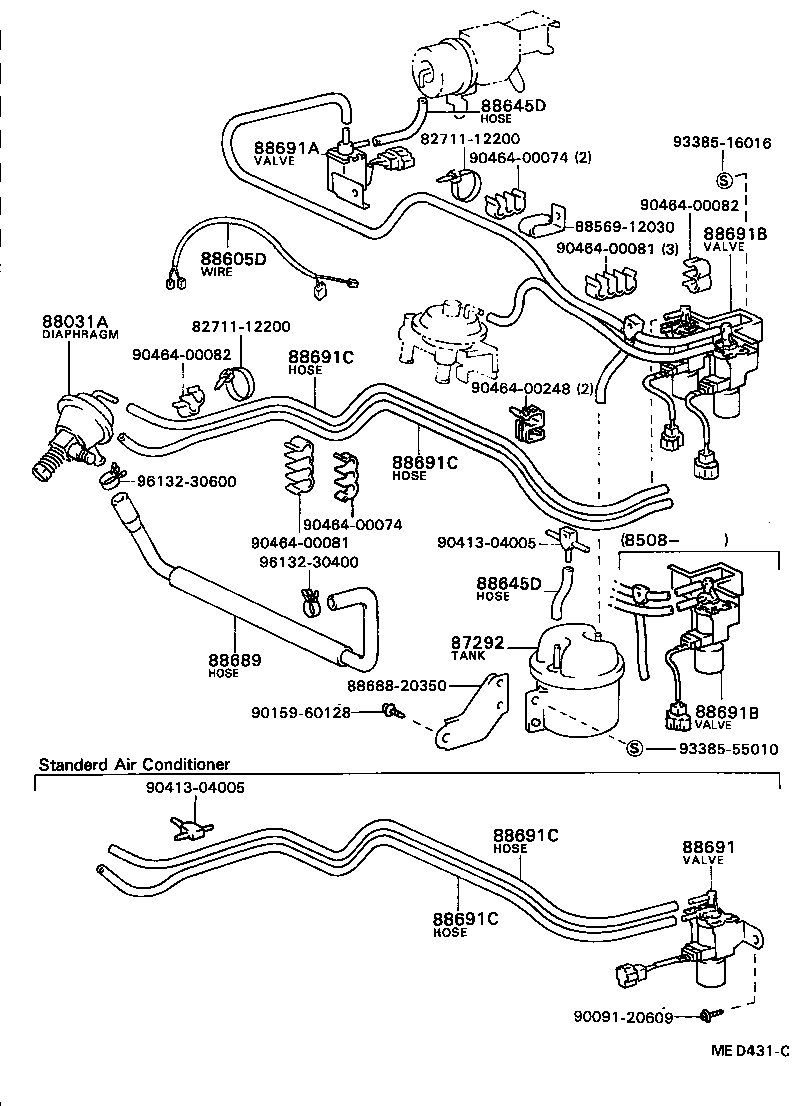

diagram 8271112200 8271112200 87292 88031A 8856912030 88605D 88645D 88645D 8868820350 88689 88691 88691A 88691B 88691B 88691C 88691C 88691C 88691C 9009120609 9015960128 9041304005 9041304005 9046400074 9046400074 9046400081 9046400081 9046400082 9046400082 9046400248 9338516016 9338555010 9613230400 9613230600
Part # Description Qty Price
87292 - TANK, VACUUM
88683-16010

AE82;AE81,CE80..SE,ZX

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-14020

AE82..SE,SR,SX,ZX

 1
88605D - WIRE, AIR CONDITIONER
88605-12520

AE82..SE,SR,SX,ZX

W/*AAC

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10430

AE82;AE81,CE80..SE,ZX

*H,L=120,ﾏｰｸ=#4,W/*AAC

 1
95411-10130

AE82..SE,SR,SX,ZX

*H,L=40,ﾏｰｸ=#1,W/*AAC

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10430

AE82;AE81,CE80..SE,ZX

*H,L=120,ﾏｰｸ=#4,W/*AAC

 1
95411-10130

AE82..SE,SR,SX,ZX

*H,L=40,ﾏｰｸ=#1,W/*AAC

 1
88689 - HOSE, DAMPER CONTROL DIAPHRAGM VACUUM
88689-12020

AE82..SE,SR,SX,ZX

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-30430

AE82..SR,SX,ZX

 1
88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)
88690-12330

AE82;AE81,CE80..SE,ZX

 1
88691B - VALVE, MAGNET (FOR WATER VALVE)
88690-12270

AE82..SR,SX,ZX

 1
88691B - VALVE, MAGNET (FOR WATER VALVE)
88690-12270

AE82..SR,SX,ZX

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08168

AE82..SR,SX,ZX

MARK=#0,L=1100

 1
90445-08205

AE82..SR,SX,ZX

長さ=1150

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08168

AE82..SR,SX,ZX

MARK=#0,L=1100

 1
90445-08205

AE82..SR,SX,ZX

長さ=1150

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08168

AE82..SR,SX,ZX

MARK=#0,L=1100

 1
90445-08205

AE82..SR,SX,ZX

長さ=1150

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90445-08168

AE82..SR,SX,ZX

MARK=#0,L=1100

 1
90445-08205

AE82..SR,SX,ZX

長さ=1150

 1
Common parts
82711-12200
88569-12030
88688-20350
90091-20609
90159-60128
90413-04005
90464-00074
90464-00081
90464-00082
90464-00248
93385-16016
93385-55010
96132-30400
96132-30600
