AE82-FEMXE (1983)
Toyota Sprinter

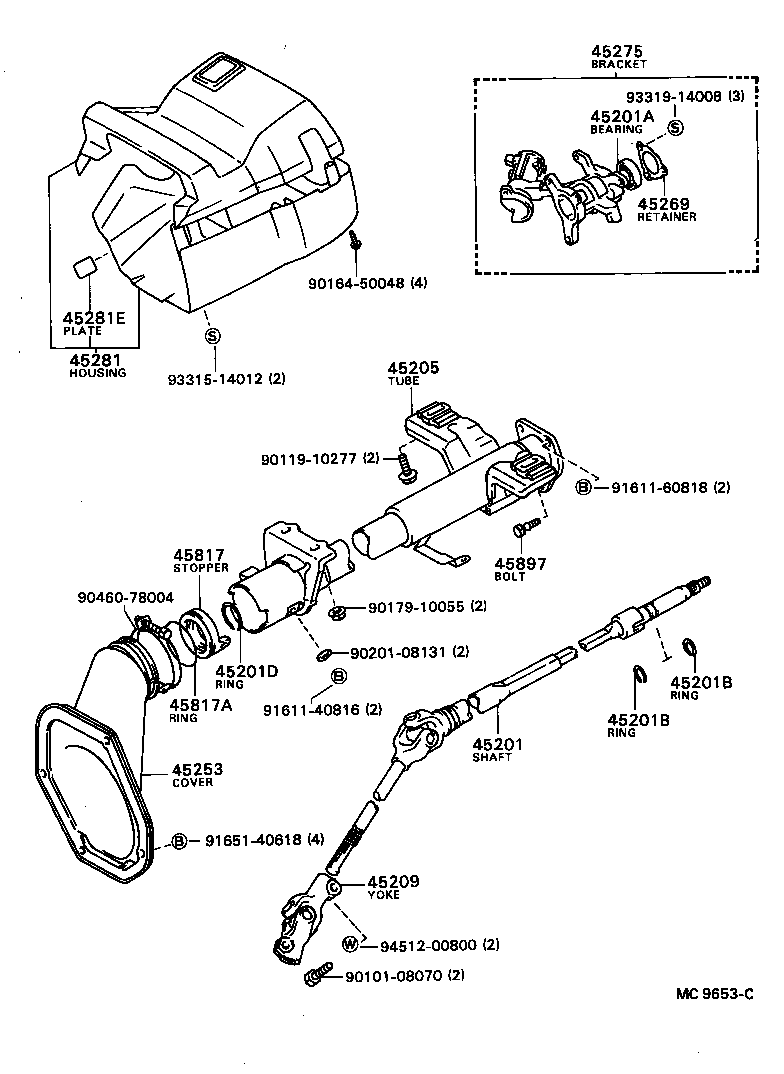

(8305-8505)AE80,81,CE80 ; (8305-8505)AE82..GT,SR,SX ; (8505- )AE82..SE ; (8505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12220 |
AE8#,CE80..GT,SE,SR,SX,XL,ZX W/POWER STEERING |
1 | ||
| 45210-12200 |
AE8#,CE80,EE80 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE8#,CE80,EE80 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE8#,CE80,EE80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12180 |
AE80,81,CE80;AE82..GT,SR,SX |
1 | ||
| 45870-12200 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX W/TILT STEERING |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE8#,CE80,EE80 |
1 | ||
| 45209-32020 |
AE8#,CE80..GT,SE,SR,SX,XL,ZX W/POWER STEERING |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12120 |
AE8#,CE80,EE80 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE8#,CE80,EE80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12090 |
AE8#,CE80,EE80 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1293403 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..SE,SR,SX,XL,ZX GRAY,W/TILT STEERING,GRAY,TRIM1# |
1 | ||
| 45286-1293303 |
AE82..SE,SR,SX;AE80,81,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AE8#,CE80,EE80 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE8#,CE80,EE80 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
AE8#,CE80,EE80 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-40816 | ||||
| 91611-60818 | ||||
| 91651-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||

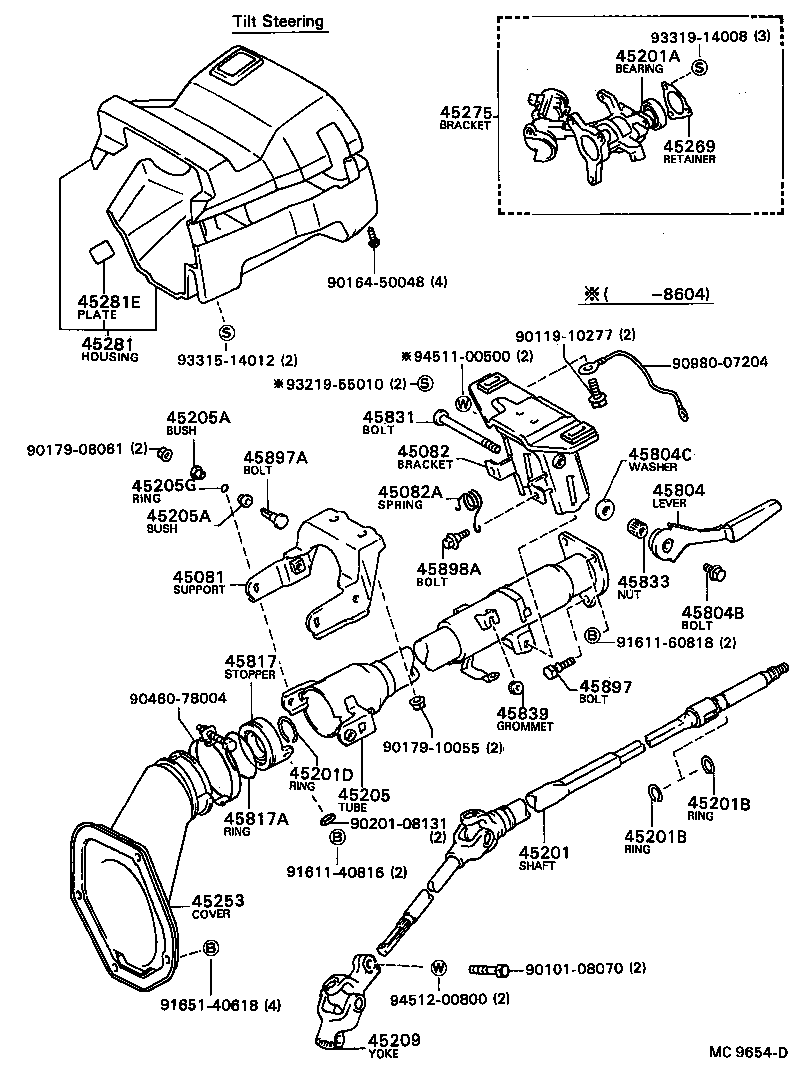

(8305-8505)AE81..SE,SX,ZX ; (8305-8505)AE81..3FC,4F..XL ; (8305-8505)AE80,82,CE80..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45081-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-12020 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45082-12020 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-29015 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 90508-29015 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12220 |
AE8#,CE80..GT,SE,SR,SX,XL,ZX W/POWER STEERING |
1 | ||
| 45210-12220 |
AE8#,CE80..GT,SE,SR,SX,XL,ZX W/POWER STEERING |
1 | ||
| 45210-12200 |
AE8#,CE80,EE80 |
1 | ||
| 45210-12200 |
AE8#,CE80,EE80 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE8#,CE80,EE80 |
1 | ||
| 90363-18038 |
AE8#,CE80,EE80 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE8#,CE80,EE80 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE8#,CE80,EE80 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17042 |
AE8#,CE80,EE80 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17196 |
AE8#,CE80,EE80 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE8#,CE80,EE80 |
1 | ||
| 96152-00300 |
AE8#,CE80,EE80 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12180 |
AE80,81,CE80;AE82..GT,SR,SX |
1 | ||
| 45870-12180 |
AE80,81,CE80;AE82..GT,SR,SX |
1 | ||
| 45870-12200 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX W/TILT STEERING |
1 | ||
| 45870-12200 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX W/TILT STEERING |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
4 | ||
| 90389-11005 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
4 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
4 | ||
| 90389-11005 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
4 | ||
| 45205G - RING, O(FOR STEERING COLUMN TUBE) | ||||
| 90301-11005 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 90301-11005 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
AE8#,CE80,EE80 |
1 | ||
| 45209-32010 |
AE8#,CE80,EE80 |
1 | ||
| 45209-32020 |
AE8#,CE80..GT,SE,SR,SX,XL,ZX W/POWER STEERING |
1 | ||
| 45209-32020 |
AE8#,CE80..GT,SE,SR,SX,XL,ZX W/POWER STEERING |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12120 |
AE8#,CE80,EE80 |
1 | ||
| 45025-12120 |
AE8#,CE80,EE80 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE8#,CE80,EE80 |
1 | ||
| 45269-10010 |
AE8#,CE80,EE80 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-12090 |
AE8#,CE80,EE80 |
1 | ||
| 45280-12090 |
AE8#,CE80,EE80 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1293403 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..SE,SR,SX,XL,ZX GRAY,W/TILT STEERING,GRAY,TRIM1# |
1 | ||
| 45286-1293403 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..SE,SR,SX,XL,ZX GRAY,W/TILT STEERING,GRAY,TRIM1# |
1 | ||
| 45286-1293303 |
AE82..SE,SR,SX;AE80,81,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 45286-1293303 |
AE82..SE,SR,SX;AE80,81,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AE8#,CE80,EE80 |
1 | ||
| 45283-22010 |
AE8#,CE80,EE80 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-12010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45804-12010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-08060 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 90105-08060 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-08029 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 90201-08029 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE8#,CE80,EE80 |
1 | ||
| 45808-20020 |
AE8#,CE80,EE80 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24056 |
AE8#,CE80,EE80 |
1 | ||
| 96711-24056 |
AE8#,CE80,EE80 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45831-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45833-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
1 | ||
| 45839 - GROMMET, RETURN SPRING | ||||
| 45839-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 45839-20010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE8#,CE80,EE80 |
1 | ||
| 45897-12020 |
AE8#,CE80,EE80 |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-26010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 45897-26010 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-20020 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| 45898-20020 |
AE81..SE,SX,ZX;AE81..(3FC,4F)..XL;AE80,82,CE80..GT,SE,SR,SX,XL,ZX |
2 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-08061 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 90980-07204 | ||||
| 91611-40816 | ||||
| 91611-60818 | ||||
| 91651-40618 | ||||
| 93219-55010 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
