AE82-FEMQF (1984)

Toyota Sprinter

Production Oct 1984 - Apr 1987
Engine 4AGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )4AGELU

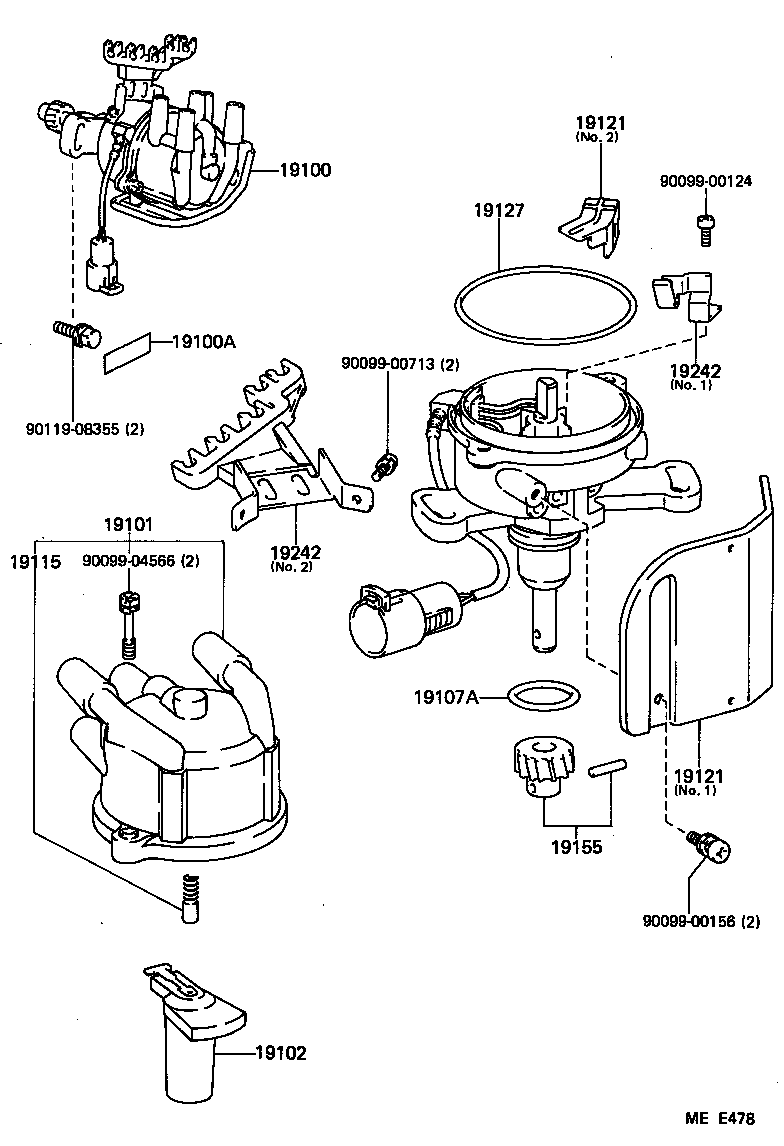

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19121 19127 19155 19242 19242 9009900124 9009900156 9009900713 9009904566 9011908355
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-16080

4AGELU..AE82

 1
19100A - TAPE, SEALING
90919-24004

2ALU,3ALU,4A#..AE8#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-16080

4AGELU..AE82

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-16040

4AGELU..AE82

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

4AGELU..AE82

 1
19121 - COVER, DUST PROOF
19121-16080

4AGELU..AE82

NO.1

 1
19121-16040

4AGELU..AE82

NO.2

 1
19121 - COVER, DUST PROOF
19121-16080

4AGELU..AE82

NO.1

 1
19121-16040

4AGELU..AE82

NO.2

 1
19127 - PACKING, DUST PROOF
19127-15021

4AGELU..AE82

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-16040

4AGELU..AE82

 1
19242 - CLAMP, CORD
19242-16080

4AGELU..AE82

NO.2

 1
19242-16030

4AGELU..AE82

NO.1

 1
19242 - CLAMP, CORD
19242-16080

4AGELU..AE82

NO.2

 1
19242-16030

4AGELU..AE82

NO.1

 1
Common parts
90099-00124
90099-00156
90099-00713
90099-04566
90119-08355
