AE81-FEMES (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

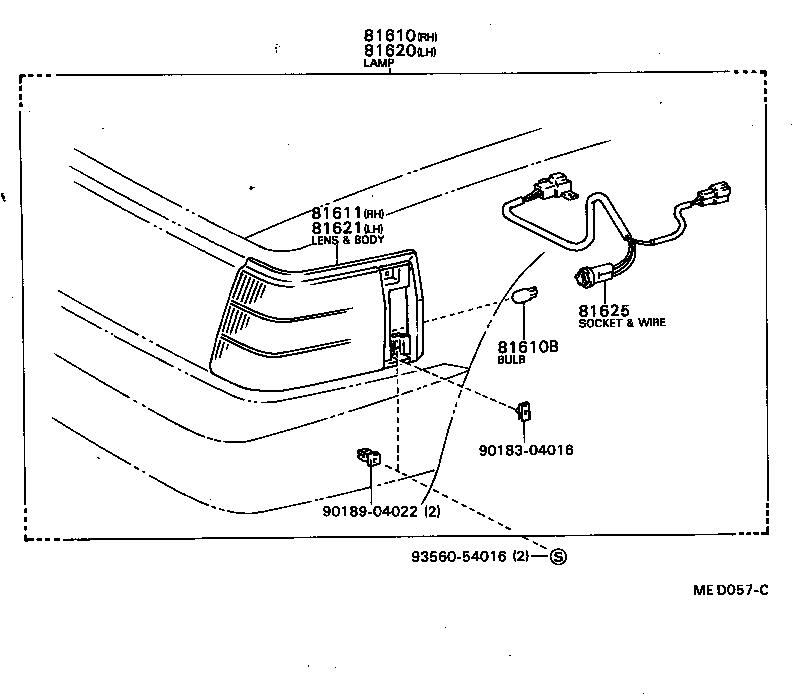

Click highlighted areas on diagram

diagram 81610 81610B 81611 81620 81621 81625 9018304016 9018904022 9356054016
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19445

AE8#,CE80,EE80

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AE8#,CE80,EE80

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81121-1A250

AE8#,CE80,EE80

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19445

AE8#,CE80,EE80

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81161-1A200

AE8#,CE80,EE80

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81104-1A250

AE8#,CE80

 2
Common parts
90183-04016
90189-04022
93560-54016
