AE81-FEMES (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8511)2ALU,3ALU,4AELU

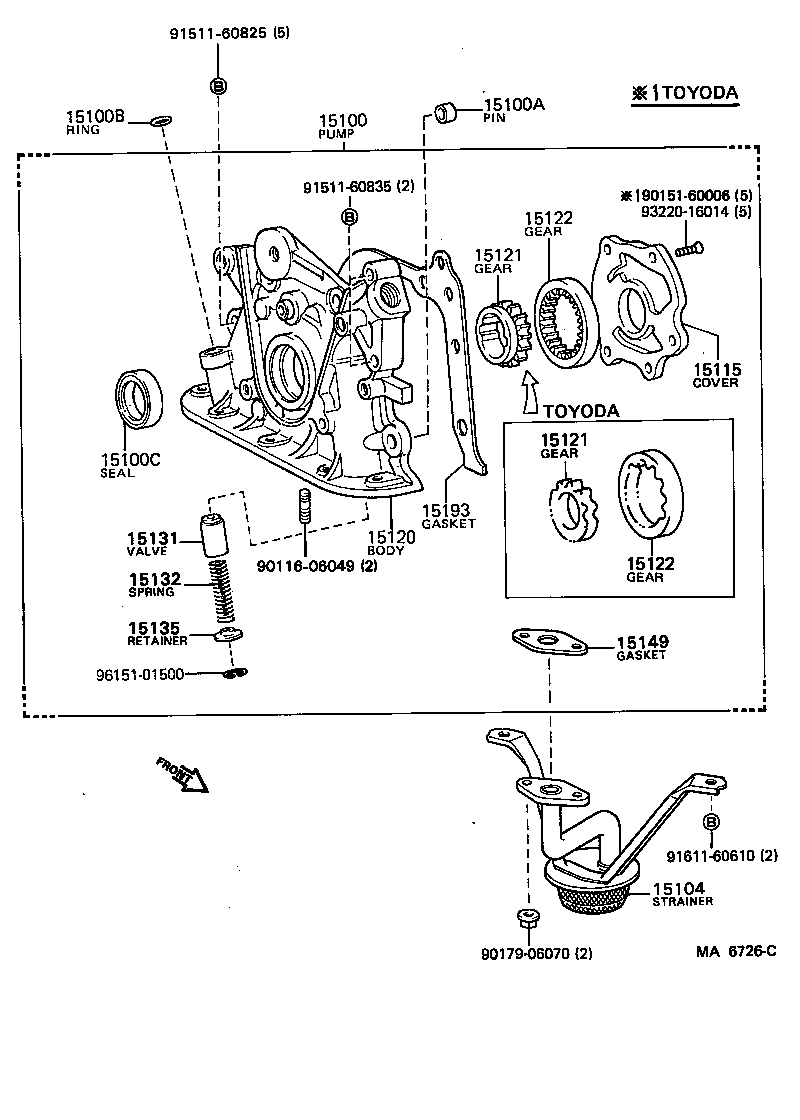

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15104 15115 15120 15121 15121 15122 15122 15131 15132 15135 15149 15193 9011606049 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-15020

3ALU,4AELU..AE8#

 1
15100-19015

2ALU,3ALU,4AELU..AE8#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2ALU,3ALU,4A#..AE8#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

2ALU,3ALU,4A#..AE8#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

2ALU,3ALU,4A#..AE8#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15080

2ALU,3ALU,4A#..AE8#

 1
15115 - COVER, OIL PUMP
15115-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15115-15030

3ALU,4AELU..AE8#

TOYODA

 1
15115-15020

3ALU,4AELU..AE8#

AISIN

 1
15120 - BODY SUB-ASSY, OIL PUMP
15120-15011

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15101-15030

3ALU,4AELU..AE8#

TOYODA

 1
15101-15020

3ALU,4AELU..AE8#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15121-15030

3ALU,4AELU..AE8#

TOYODA

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15121-15030

3ALU,4AELU..AE8#

TOYODA

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15122-15030

3ALU,4AELU..AE8#

TOYODA

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15122-15030

3ALU,4AELU..AE8#

TOYODA

 1
15131 - VALVE, OIL PUMP RELIEF
15131-15030

3ALU,4AELU..AE8#

TOYODA

 1
15131-24010

2ALU,3ALU,4A#..AE8#

AISIN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-15030

3ALU,4AELU..AE8#

TOYODA

 1
15132-40010

2ALU,3ALU,4A#..AE8#

AISIN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15030

3ALU,4AELU..AE8#

TOYODA

 1
15135-15010

2ALU,3ALU,4A#..AE8#

AISIN

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

2ALU,3ALU,4A#..AE8#

 1
15193 - GASKET, OIL PUMP
15197-15011

2ALU,3ALU,4A#..AE8#

 1
Common parts
90116-06049
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500

(8511- )3ALU,4AELU

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15103 15104 15115 15120 15121 15122 15131 15132 15135 15149 15193 9011606049 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-15020

3ALU,4AELU..AE8#

 1
15100-19015

2ALU,3ALU,4AELU..AE8#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2ALU,3ALU,4A#..AE8#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

2ALU,3ALU,4A#..AE8#

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

2ALU,3ALU,4A#..AE8#

 1
15103 - GEAR SET, OIL PUMP
15103-15020

3ALU,4AELU..AE8#

AISIN

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15080

2ALU,3ALU,4A#..AE8#

 1
15115 - COVER, OIL PUMP
15115-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15115-15030

3ALU,4AELU..AE8#

TOYODA

 1
15115-15020

3ALU,4AELU..AE8#

AISIN

 1
15120 - BODY SUB-ASSY, OIL PUMP
15120-15011

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15101-15030

3ALU,4AELU..AE8#

TOYODA

 1
15101-15020

3ALU,4AELU..AE8#

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15121-15030

3ALU,4AELU..AE8#

TOYODA

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

2ALU,3ALU,4AELU..AE8#

AISIN

 1
15122-15030

3ALU,4AELU..AE8#

TOYODA

 1
15131 - VALVE, OIL PUMP RELIEF
15131-15030

3ALU,4AELU..AE8#

TOYODA

 1
15131-24010

2ALU,3ALU,4A#..AE8#

AISIN

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-15030

3ALU,4AELU..AE8#

TOYODA

 1
15132-40010

2ALU,3ALU,4A#..AE8#

AISIN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15030

3ALU,4AELU..AE8#

TOYODA

 1
15135-15010

2ALU,3ALU,4A#..AE8#

AISIN

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

2ALU,3ALU,4A#..AE8#

 1
15193 - GASKET, OIL PUMP
15197-15011

2ALU,3ALU,4A#..AE8#

 1
Common parts
90116-06049
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500
