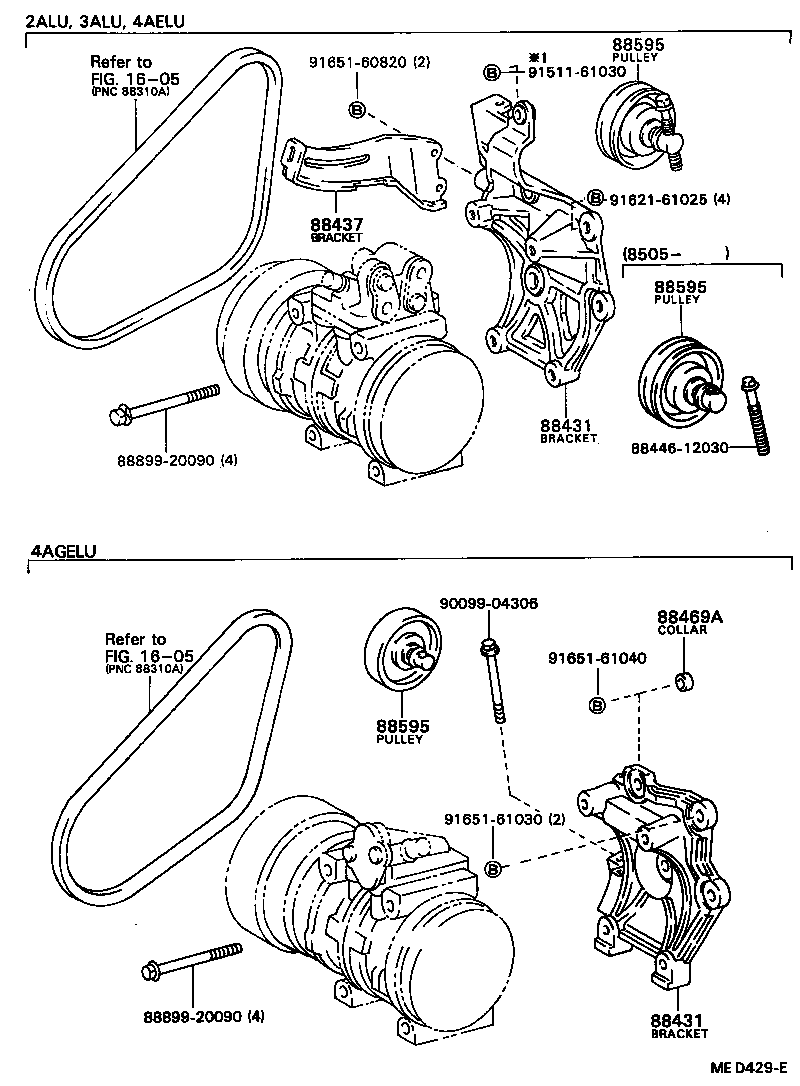

Toyota Sprinter AE81 HEATING & AIR CONDITIONING - COMPRESSOR

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14030	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-12100	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88320 - COMPRESSOR ASSY, COOLER
88320-12290	AE8#	05/1983 - 01/1984	1
88320-12310	AE8#..DX,SE,SPD,SR,SX,XL,ZX	01/1984 - 05/1985	1
88320-12390	AE8#..DX,SE,XL,ZX	05/1985 - 04/1987	1
88330 - CLUTCH ASSY, MAGNET
88410-12180	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88330B - BEARING, MAGNET CLUTCH
90099-10135	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14040	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12290	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12290	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 04/1987	1
88437 - BRACKET, COMPRESSOR MOUNTING, NO.7
88437-12260	AE81..DX W/KNOCK CONTROL	05/1983 - 05/1985	1
88437-12250	AE80,81	01/1984 - 04/1987	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12090	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 05/1985	1
88440-12160	AE8#..DX,SE,XL,ZX	05/1985 - 04/1987	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12090	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 05/1985	1
88440-12160	AE8#..DX,SE,XL,ZX	05/1985 - 04/1987	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12090	AE8#..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 05/1985	1
88440-12160	AE8#..DX,SE,XL,ZX	05/1985 - 04/1987	1
Common parts
88446-12030
88899-20090
90099-04306
91511-61030
91621-61025
91651-60820
91651-61030
91651-61040
Linked diagrams
1605

AE81-FEKDS (1983)
