AE81-FEKDS (1983)
Toyota Sprinter
Production
May 1983
-
Apr 1987
Engine
3ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )AE8#,CE80

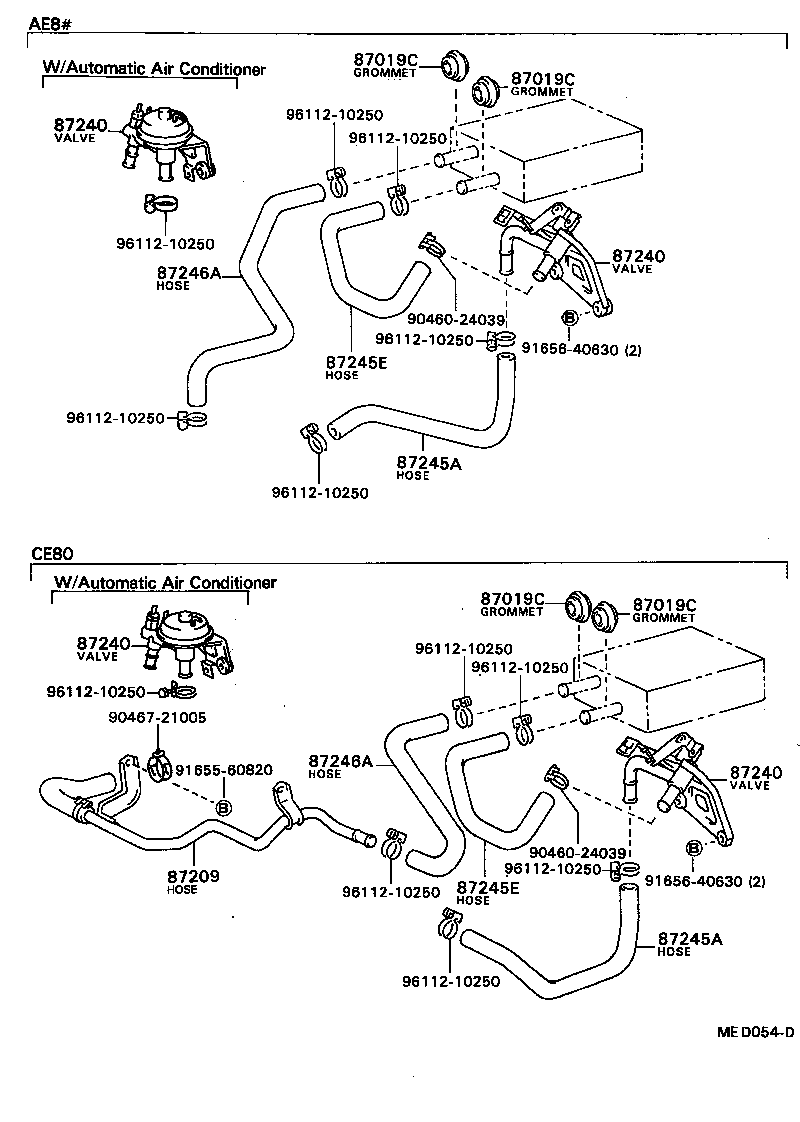

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 96531-13517 |
AE8#,CE80,EE80 |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 96531-13517 |
AE8#,CE80,EE80 |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 96531-13517 |
AE8#,CE80,EE80 |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 96531-13517 |
AE8#,CE80,EE80 |
2 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12190 |
AE8#,CE80,EE80 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12190 |
AE8#,CE80,EE80 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12190 |
AE8#,CE80,EE80 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12190 |
AE8#,CE80,EE80 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-12690 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-12690 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-12670 |
AE8#,CE80,EE80 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-12670 |
AE8#,CE80,EE80 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-12700 |
AE8# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-12700 |
AE8# |
1 | ||
| Common parts | ||||
| 90460-24039 | ||||
| 90467-21005 | ||||
| 91655-60820 | ||||
| 91656-40630 | ||||
| 96112-10250 | ||||
