AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

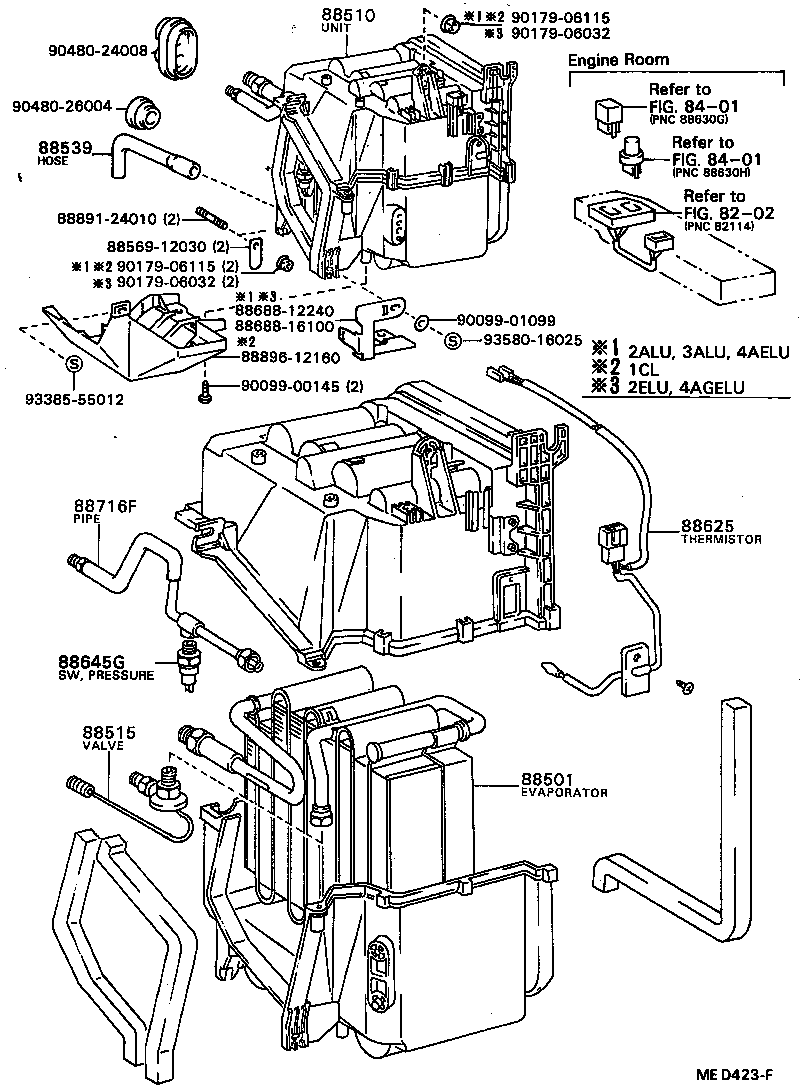

ILLUST NO. 1 OF 2(8305- )

Click highlighted areas on diagram

diagram 8202 8401 8401 88501 88510 88515 88539 8856912030 88625 88645G 8868812240 8868816100 88716F 8889124010 8889612160 9009900145 9009901099 9017906032 9017906032 9017906115 9017906115 9048024008 9048026004 9338555012 9358016025
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16060

AE8#,CE80

 1
88501-12310

AE8#,CE80,EE80

 1
88510 - UNIT ASSY, COOLER
88510-16080

AE8#,CE80

 1
88510-12650

AE8#,CE80,EE80

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

AE8#,CE80

 1
88515-16031

AE8#,CE80,EE80

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12080

AE8#,CE80,EE80

 1
88625 - THERMISTOR, COOLER, NO.1
88625-16060

AE8#,CE80

 1
88625-12200

AE8#,CE80,EE80

 1
88645G - SWITCH, PRESSURE
88645-10020

AE8#,CE80,EE80

 1
88645-12020

AE8#,CE80

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16160

AE8#,CE80,EE80

 1
Common parts
88569-12030
88688-12240
88688-16100
88891-24010
88896-12160
90099-00145
90099-01099
90179-06032
90179-06115
90480-24008
90480-26004
93385-55012
93580-16025
Linked diagrams
8202
8401

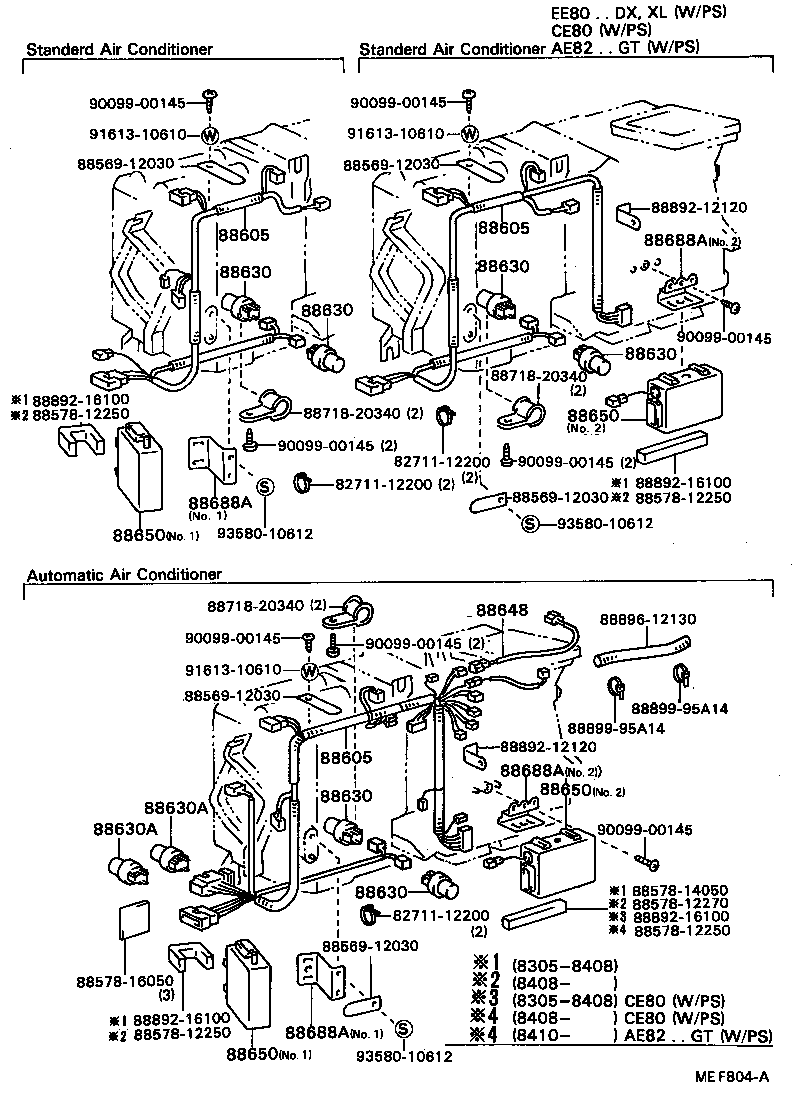

ILLUST NO. 2 OF 2(8305- )

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271112200 8856912030 8856912030 8856912030 8856912030 8856912030 8857812250 8857812250 8857812250 8857812250 8857812270 8857814050 8857816050 88605 88605 88605 88630 88630 88630 88630 88630 88630 88630A 88630A 88648 88650 88650 88650 88650 88688A 88688A 88688A 88688A 8871820340 8871820340 8871820340 8889212120 8889212120 8889216100 8889216100 8889216100 8889216100 8889612130 8889995A14 8889995A14 9009900145 9009900145 9009900145 9009900145 9009900145 9009900145 9009900145 9009900145 9161310610 9161310610 9161316010 9358010612 9358010612 9358010612
Part # Description Qty Price
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12500

AE80,81

COOLER SWITCH=2-BUTTON

 1
88605-12501

AE81,EE80

COOLER SWITCH=2-BUTTON

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12500

AE80,81

COOLER SWITCH=2-BUTTON

 1
88605-12501

AE81,EE80

COOLER SWITCH=2-BUTTON

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12500

AE80,81

COOLER SWITCH=2-BUTTON

 1
88605-12501

AE81,EE80

COOLER SWITCH=2-BUTTON

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AE80,81

NO.1

 1
88650-12300

AE80,81,EE80

NO.1,COOLER SWITCH=2-BUTTON

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AE80,81

NO.1

 1
88650-12300

AE80,81,EE80

NO.1,COOLER SWITCH=2-BUTTON

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AE80,81

NO.1

 1
88650-12300

AE80,81,EE80

NO.1,COOLER SWITCH=2-BUTTON

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AE80,81

NO.1

 1
88650-12300

AE80,81,EE80

NO.1,COOLER SWITCH=2-BUTTON

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AE8#,CE80,EE80

NO.1

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AE8#,CE80,EE80

NO.1

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AE8#,CE80,EE80

NO.1

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AE8#,CE80,EE80

NO.1

 1
Common parts
82711-12200
88569-12030
88578-12250
88578-12270
88578-14050
88578-16050
88718-20340
88892-12120
88892-16100
88896-12130
88899-95A14
90099-00145
91613-10610
91613-16010
93580-10612
