AE81-FEKDS (1983)
Toyota Sprinter
Production
May 1983
-
Apr 1987
Engine
3ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

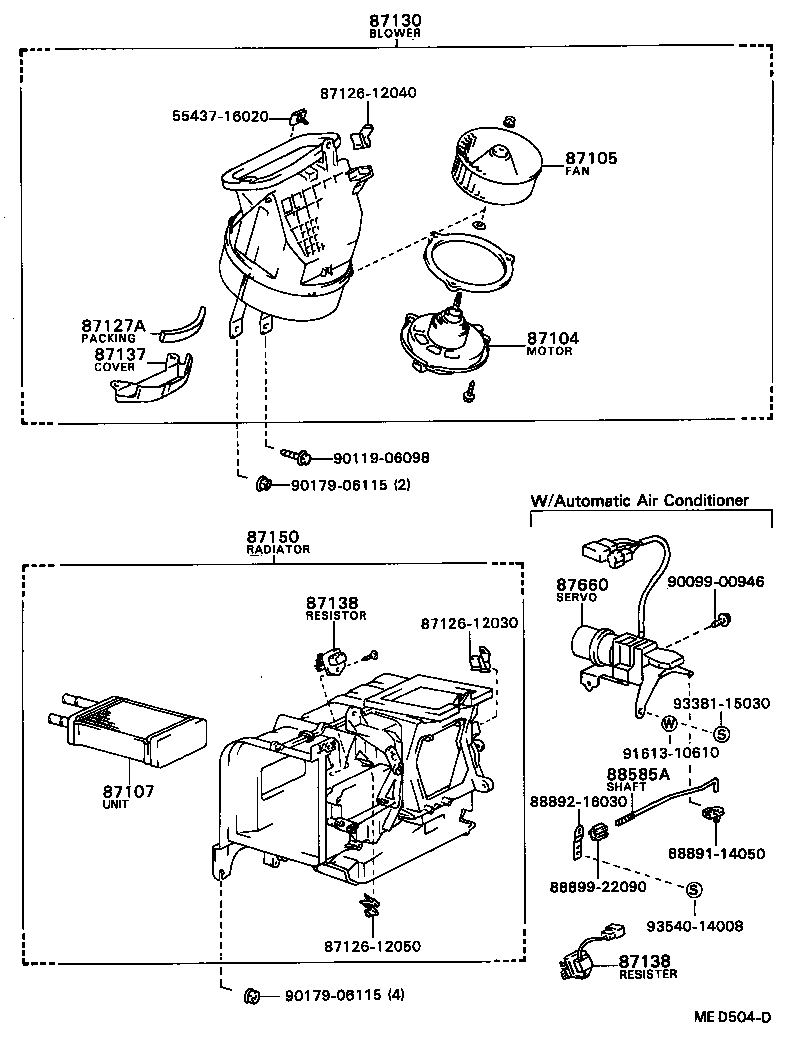

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-12150 |
AE8#,CE80,EE80 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
AE8#,CE80,EE80 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12330 |
AE8#,CE80 COLD SPEC |
1 | ||
| 87107-12310 |
AE8#,CE80,EE80 |
1 | ||
| 87107-12330 |
AE8#,EE80 COLD SPEC |
1 | ||
| 87127A - PACKING, HEATER RADIATOR PIPE | ||||
| 87127-12030 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-12120 |
AE8#,CE80,EE80 |
1 | ||
| 87130-12220 |
AE8#,EE80 COLD SPEC |
1 | ||
| 87137 - COVER, HEATER BLOWER | ||||
| 87137-10010 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-16090 |
AE8#,CE80,EE80 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-16090 |
AE8#,CE80,EE80 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-12190 |
AE8#,CE80,EE80 |
1 | ||
| 87150-12210 |
AE8#,EE80 COLD SPEC |
1 | ||
| 87150-12210 |
AE8#,CE80 COLD SPEC |
1 | ||
| Common parts | ||||
| 55437-16020 | ||||
| 87126-12030 | ||||
| 87126-12040 | ||||
| 87126-12050 | ||||
| 88891-14050 | ||||
| 88892-16030 | ||||
| 88899-22090 | ||||
| 90099-00946 | ||||
| 90119-06098 | ||||
| 90179-06115 | ||||
| 91613-10610 | ||||
| 93381-15030 | ||||
| 93540-14008 | ||||
