AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

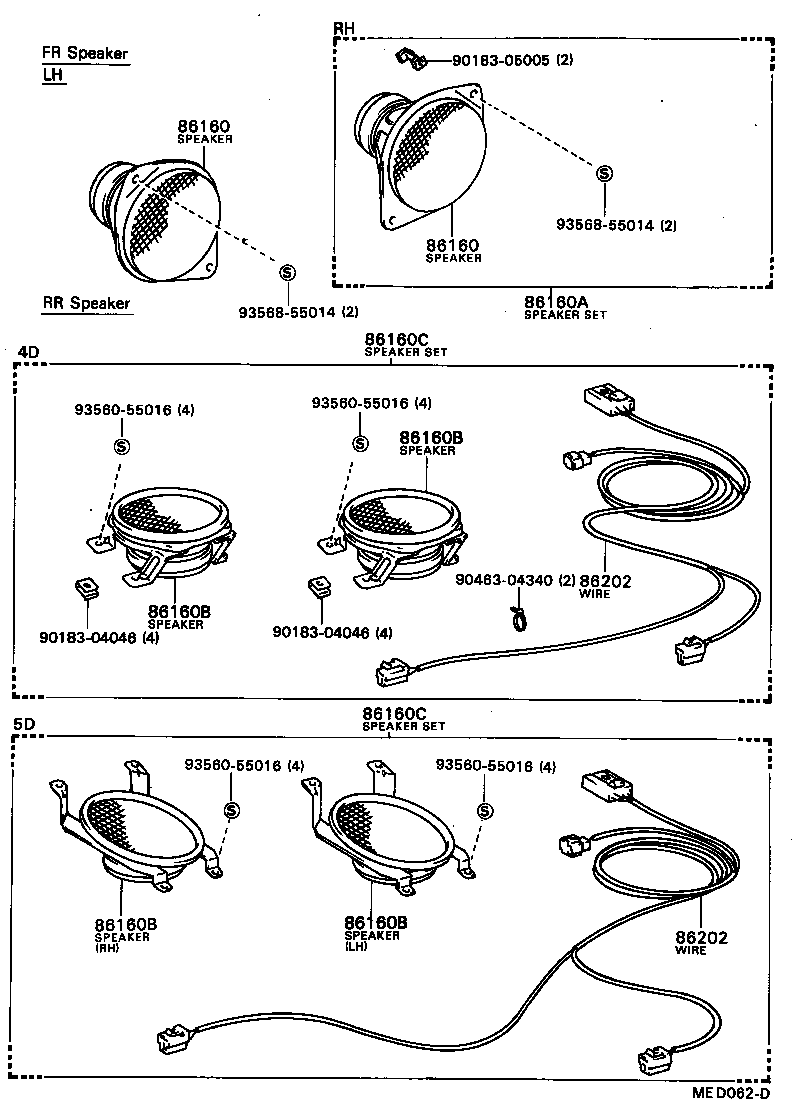

Click highlighted areas on diagram

diagram 86160 86160 86160A 86160B 86160B 86160B 86160B 86160C 86160C 86202 86202 9018304046 9018304046 9018305005 9046304340 9356055016 9356055016 9356055016 9356055016 9356855014 9356855014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170

AE8#,CE80..DX,GT,SE,SR,SX,XL,ZX

AM/FM MULTIPLEX OR TAPE PLAYER

 2
86160-12170

AE8#,CE80,EE80

AM

 1
86160-12170

AE8#,CE80,EE80

AM/FM MULTIPLEX OR TAPE PLAYER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170

AE8#,CE80..DX,GT,SE,SR,SX,XL,ZX

AM/FM MULTIPLEX OR TAPE PLAYER

 2
86160-12170

AE8#,CE80,EE80

AM

 1
86160-12170

AE8#,CE80,EE80

AM/FM MULTIPLEX OR TAPE PLAYER

 2
86160A - SPEAKER SET, FRONT
86160-19665

AE8#,CE80,EE80

RH

 1
86160-19665

AE8#,CE80..DX,GT,SE,SR,SX,XL,ZX

RH

 1
Common parts
90183-04046
90183-05005
90463-04340
93560-55016
93568-55014
