AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

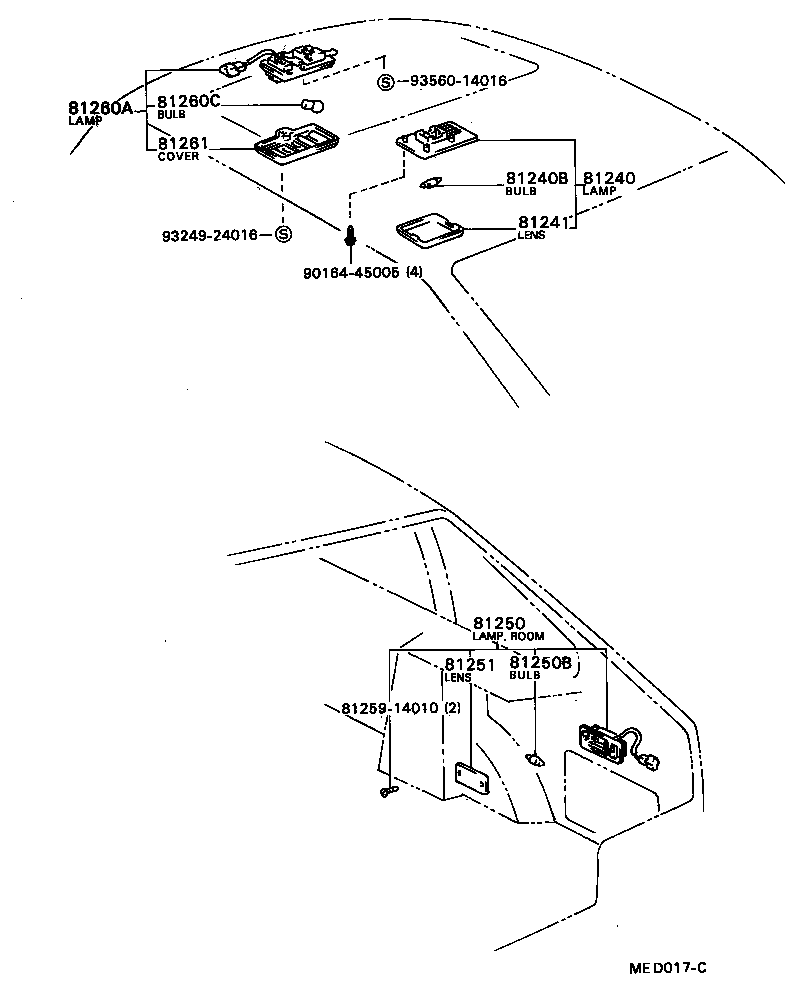

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 8125914010 81260A 81260C 81261 9016445005 9324924016 9356014016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2208008

AE8#,CE80,EE80

IVORY,IVORY,TRIM4#

 1
81240-1601018

AE8#,CE80

IVORY,IVORY,TRIM3#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AE8#,CE80,EE80

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

AE8#,CE80,EE80

 1
81241-16010

AE8#,CE80

 1
Common parts
81259-14010
90164-45005
93249-24016
93560-14016
