AE81-FEKDS (1983)
Toyota Sprinter

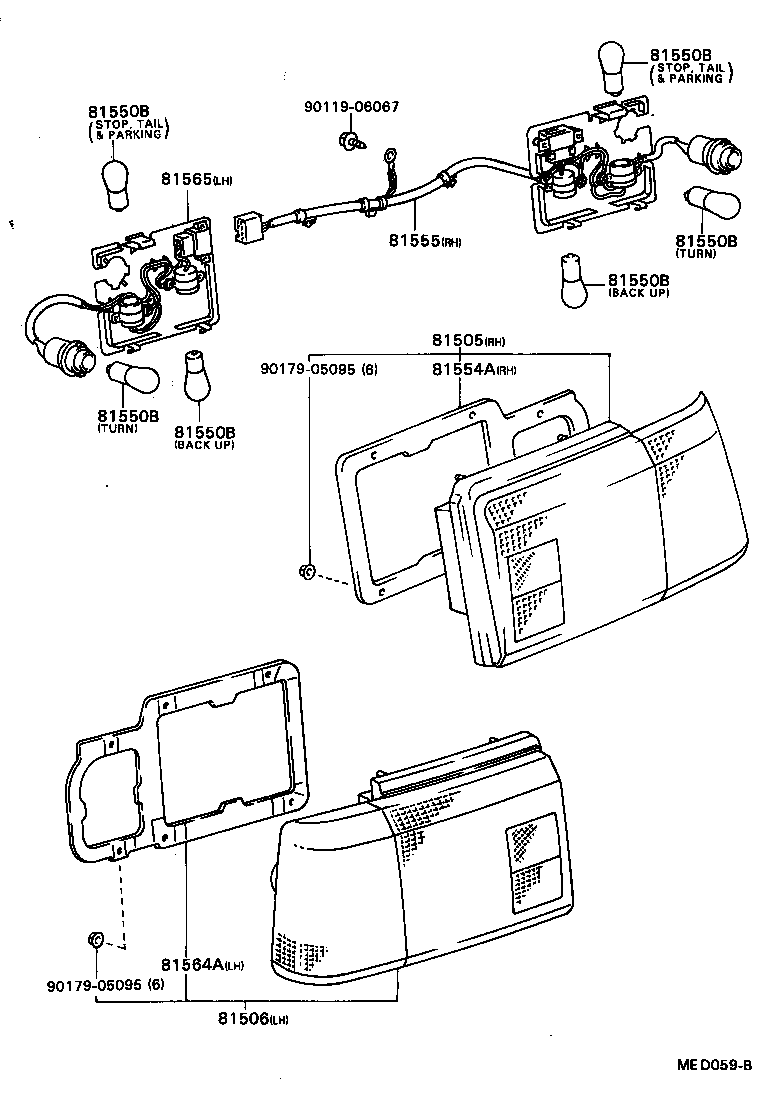

(8305-8505)4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-19685 |
AE8#,CE80..4D STANLAY |
1 | ||
| 81505-12860 |
AE81,CE80,EE80..4D..(DX,SPD,XL) |
1 | ||
| 81505-19675 |
AE8#,CE80..4D KOITO |
1 | ||
| 81506 - LAMP SUB-ASSY, REAR COMBINATION, LH | ||||
| 81506-12780 |
AE81,CE80,EE80..4D..(DX,SPD,XL) |
1 | ||
| 81506-19545 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81506-19535 |
AE8#,CE80..4D KOITO |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH | ||||
| 81554-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81554-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81554-1A320 |
AE8#,CE80,EE80..4D |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81555-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81555-1A321 |
AE8#,CE80,EE80..4D |
1 | ||
| 81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH | ||||
| 81554-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81554-1A320 |
AE8#,CE80,EE80..4D |
1 | ||
| 81554-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81565-1A321 |
AE8#,CE80,EE80..4D |
1 | ||
| 81565-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90179-05095 | ||||

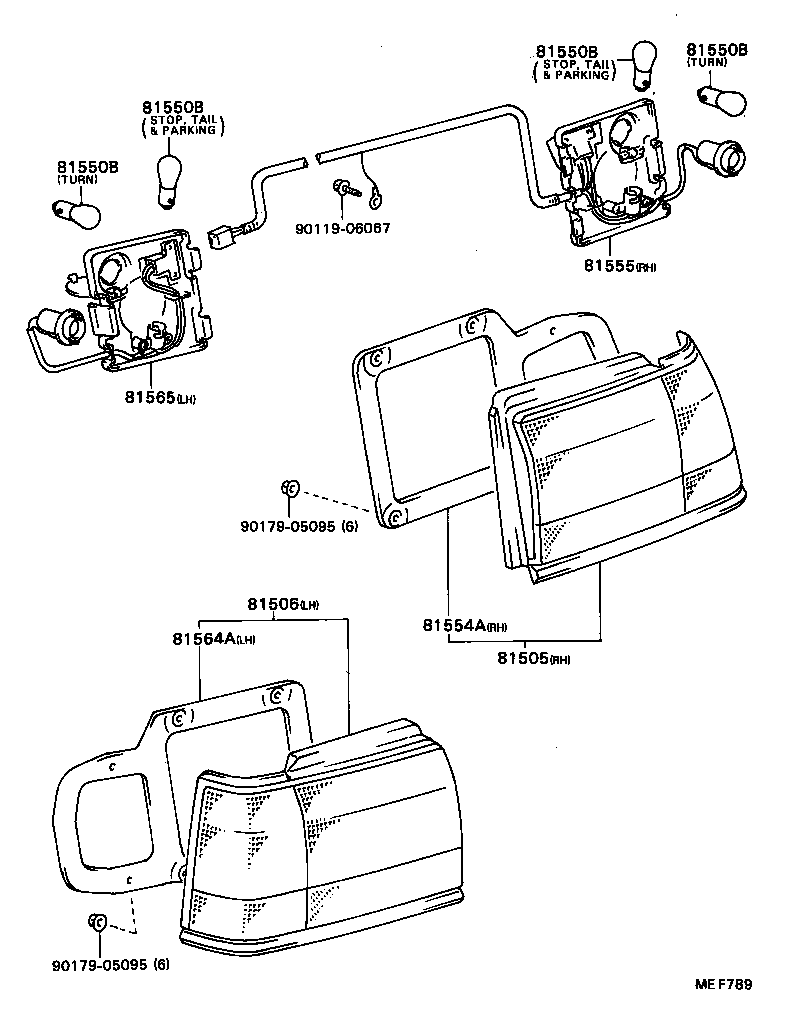

(8505- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-19685 |
AE8#,CE80..4D STANLAY |
1 | ||
| 81505-12860 |
AE81,CE80,EE80..4D..(DX,SPD,XL) |
1 | ||
| 81505-19675 |
AE8#,CE80..4D KOITO |
1 | ||
| 81506 - LAMP SUB-ASSY, REAR COMBINATION, LH | ||||
| 81506-12780 |
AE81,CE80,EE80..4D..(DX,SPD,XL) |
1 | ||
| 81506-19545 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81506-19535 |
AE8#,CE80..4D KOITO |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
AE8#,CE80 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
AE8#,CE80,EE80..4D 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-21210 |
AE8#,CE80,EE80 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING) |
2 | ||
| 81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH | ||||
| 81554-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81554-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81554-1A320 |
AE8#,CE80,EE80..4D |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81555-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81555-1A321 |
AE8#,CE80,EE80..4D |
1 | ||
| 81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH | ||||
| 81554-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| 81554-1A320 |
AE8#,CE80,EE80..4D |
1 | ||
| 81554-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-1A210 |
AE8#,CE80..4D KOITO |
1 | ||
| 81565-1A321 |
AE8#,CE80,EE80..4D |
1 | ||
| 81565-1A320 |
AE8#,CE80..4D STANLEY |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90179-05095 | ||||
