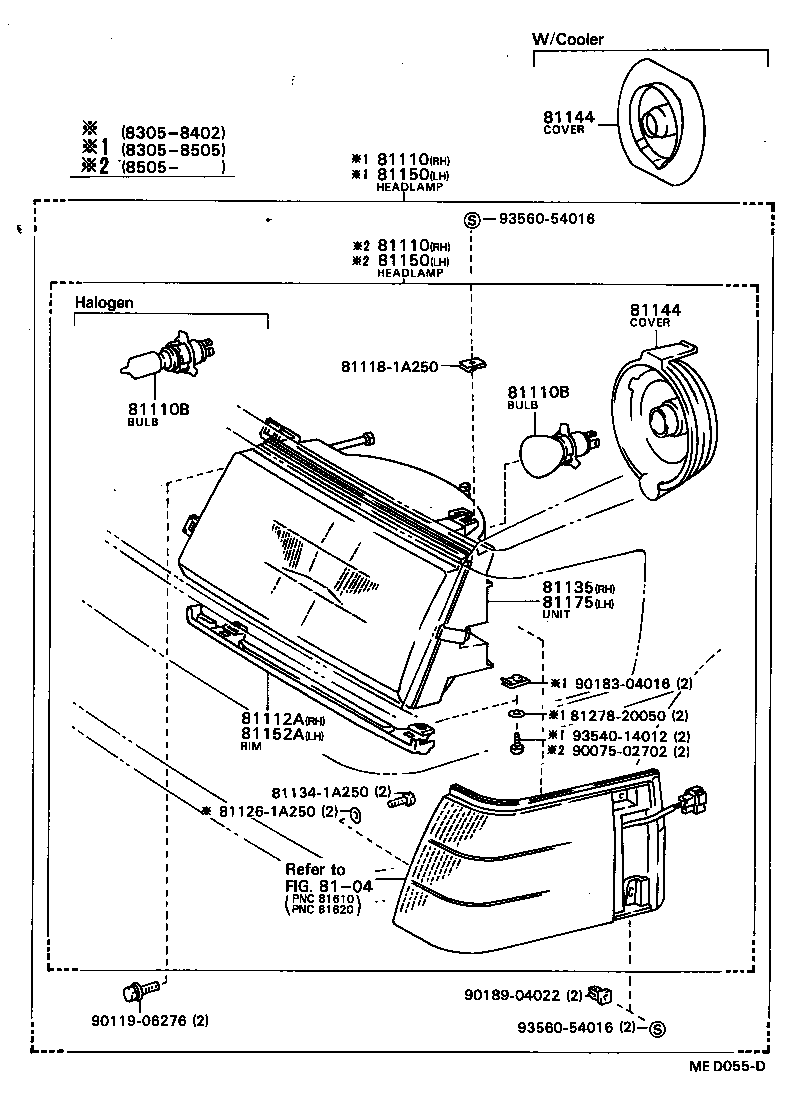

AE81-FEKDS (1983)
Toyota Sprinter
(8305- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80307 |
AE80,81,CE80..4D |
1 | ||
| 81110-1A081 |
AE81,CE80,EE80..4D |
1 | ||
| 81110-1A091 |
AE8#,CE80,EE80..4D HALOGEN(WHITE) |
1 | ||
| 81110-80308 |
AE8#,CE80..4D HALOGEN |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80307 |
AE80,81,CE80..4D |
1 | ||
| 81110-1A081 |
AE81,CE80,EE80..4D |
1 | ||
| 81110-1A091 |
AE8#,CE80,EE80..4D HALOGEN(WHITE) |
1 | ||
| 81110-80308 |
AE8#,CE80..4D HALOGEN |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13022 |
AE80,81,CE80,EE80..DX,SE,SPD,SX,XL 12V 65/60W,ﾎﾜｲﾄ,12V 65/60W |
2 | ||
| 90981-13015 |
AE8#,CE80,EE80 12V 60/55W,*HAL *WH,HALOGEN(WHITE),12V 60/55W |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13022 |
AE80,81,CE80,EE80..DX,SE,SPD,SX,XL 12V 65/60W,ﾎﾜｲﾄ,12V 65/60W |
2 | ||
| 90981-13015 |
AE8#,CE80,EE80 12V 60/55W,*HAL *WH,HALOGEN(WHITE),12V 60/55W |
2 | ||
| 81112A - RIM, HEADLAMP, RH | ||||
| 81112-1A090 |
AE8#,CE80..4D |
1 | ||
| 81116-1A091 |
AE8#,CE80,EE80..4D |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81135-1A090 |
AE8#,CE80..4D HALOGEN |
1 | ||
| 81135-1A080 |
AE80,81,CE80..4D |
1 | ||
| 81130-1A091 |
AE8#,CE80,EE80..4D HALOGEN |
1 | ||
| 81130-1A081 |
AE81,CE80,EE80..4D |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-20730 |
AE8#,CE80,EE80 |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-20730 |
AE8#,CE80,EE80 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1A031 |
AE81,CE80,EE80..4D |
1 | ||
| 81150-80304 |
AE80,81,CE80..4D |
1 | ||
| 81150-1A041 |
AE8#,CE80,EE80..4D HALOGEN(WHITE) |
1 | ||
| 81150-80305 |
AE8#,CE80..4D HALOGEN |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1A031 |
AE81,CE80,EE80..4D |
1 | ||
| 81150-80304 |
AE80,81,CE80..4D |
1 | ||
| 81150-1A041 |
AE8#,CE80,EE80..4D HALOGEN(WHITE) |
1 | ||
| 81150-80305 |
AE8#,CE80..4D HALOGEN |
1 | ||
| 81152A - RIM, HEADLAMP, LH | ||||
| 81152-1A040 |
AE8#,CE80..4D |
1 | ||
| 81156-1A041 |
AE8#,CE80,EE80..4D |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81175-1A030 |
AE80,81,CE80..4D |
1 | ||
| 81175-1A040 |
AE8#,CE80..4D HALOGEN |
1 | ||
| 81170-1A041 |
AE8#,CE80,EE80..4D HALOGEN |
1 | ||
| 81170-1A031 |
AE81,CE80,EE80..4D |
1 | ||
| Common parts | ||||
| 81118-1A250 | ||||
| 81126-1A250 | ||||
| 81134-1A250 | ||||
| 81278-20050 | ||||
| 90075-02702 | ||||
| 90119-06276 | ||||
| 90183-04016 | ||||
| 90189-04022 | ||||
| 93540-14012 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 8104 | ||||
