AE81-FEKDS (1983)
Toyota Sprinter

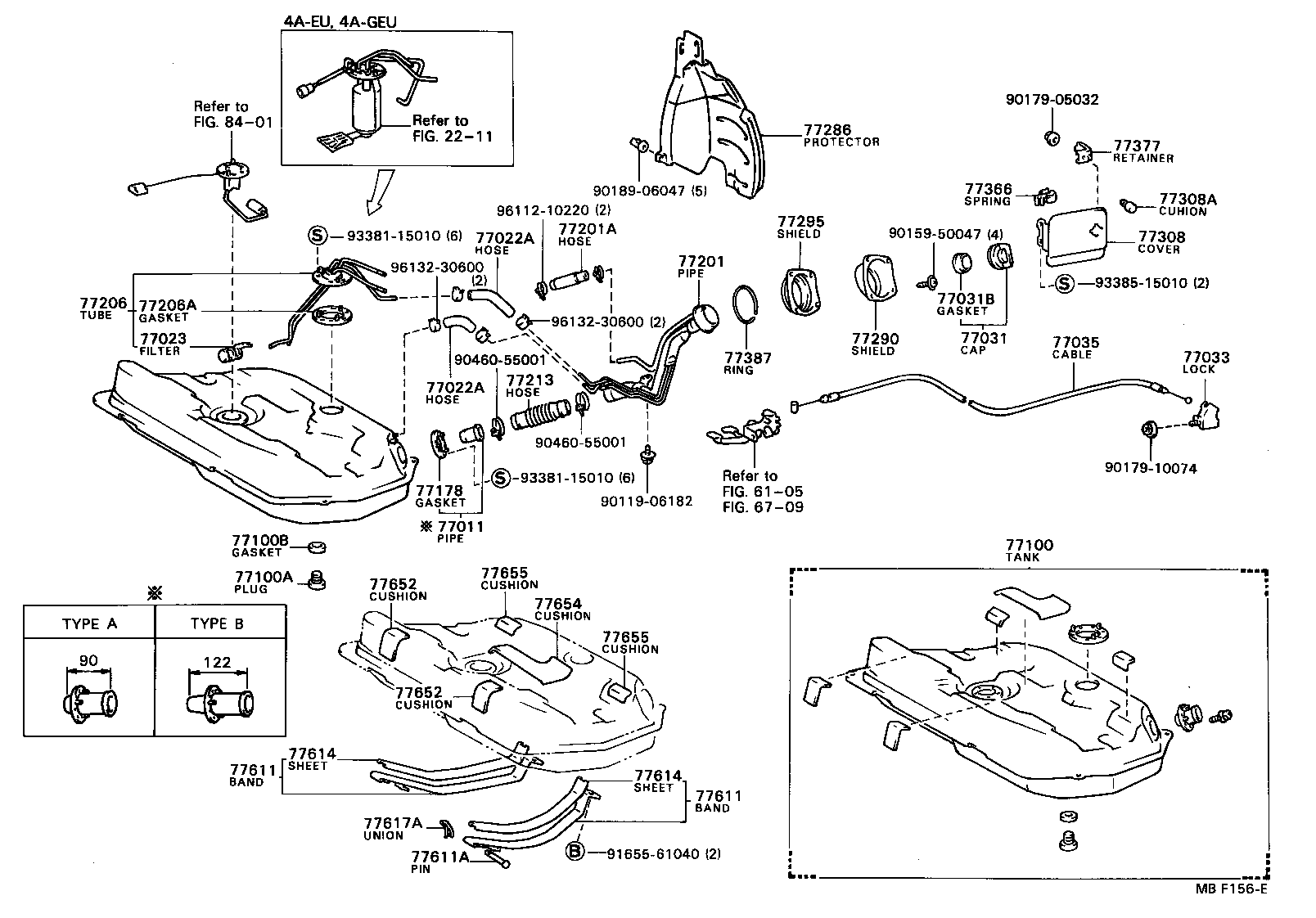

ILLUST NO. 1 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16030 |
AE8#,CE80,EE80 |
1 | ||
| 77011-12020 |
AE81..DX W/KNOCK CONTROL |
1 | ||
| 77011-12020 |
AE81..DX |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
2 | ||
| 95332-06020 |
AE8#,CE80 *H,L=140 |
2 | ||
| 77259-16040 |
AE8#,CE80,EE80 L=135 |
2 | ||
| 95332-06020 |
AE8#,CE80,EE80 *H,L=140 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
AE8#,CE80 *H,L=130 |
2 | ||
| 95332-06020 |
AE8#,CE80 *H,L=140 |
2 | ||
| 77259-16040 |
AE8#,CE80,EE80 L=135 |
2 | ||
| 95332-06020 |
AE8#,CE80,EE80 *H,L=140 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AE80,81,EE80 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE8#,EE80 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AE8#,CE80,EE80 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12040 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX |
1 | ||
| 77037-32010 |
AE8#,CE80..DX,GT,SE,SR,SX,XL,ZX |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12130 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX L=3280 |
1 | ||
| 77035-12050 |
AE8#,CE80..DX,SE,SR,SX,XL,ZX L=3380 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19325 |
AE81..DX |
1 | ||
| 77001-19405 |
AE80,81,EE80 |
1 | ||
| 77001-19325 |
AE81..DX W/KNOCK CONTROL |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE8#,CE80,EE80 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE8#,CE80,EE80 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AE8#,CE80,EE80 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77210-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77259-16010 |
AE8#,CE80,EE80 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-16030 |
AE80,81,EE80 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77178-10010 |
AE81,82,CE80,EE80 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-16031 |
AE8#,CE80,EE80 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-12050 |
AE8#,CE80 |
1 | ||
| 77277-12070 |
AE8#,CE80,EE80 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-16010 |
AE8#,CE80,EE80 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-12090 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX W/OPENER |
1 | ||
| 77350-12080 |
AE80,81,CE80,EE80..DX,SPD W/O OPENER |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08010 |
AE8#,CE80,EE80 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AE8#,CE80,EE80 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12030 |
AE8#,CE80,EE80..DX,SE,SR,SX,XL,ZX |
1 | ||
| 77377-24010 |
AE8#,CE80..DX,SE,SR,SX,XL,ZX |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE8#,CE80,EE80 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-12060 |
AE8#,EE80 RH |
1 | ||
| 77602-16020 |
AE8#,CE80,EE80 LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-12060 |
AE8#,EE80 RH |
1 | ||
| 77602-16020 |
AE8#,CE80,EE80 LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AE8#,CE80,EE80 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AE8#,CE80,EE80 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AE8#,CE80,EE80 |
2 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
AE8#,CE80,EE80 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-16050 |
AE8#,CE80,EE80 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-16050 |
AE8#,CE80,EE80 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77653-16020 |
AE8#,CE80,EE80 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77654-16010 |
AE8#,CE80,EE80 |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77654-16010 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90159-50047 | ||||
| 90179-05032 | ||||
| 90179-10074 | ||||
| 90189-06047 | ||||
| 90460-55001 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93385-15010 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||

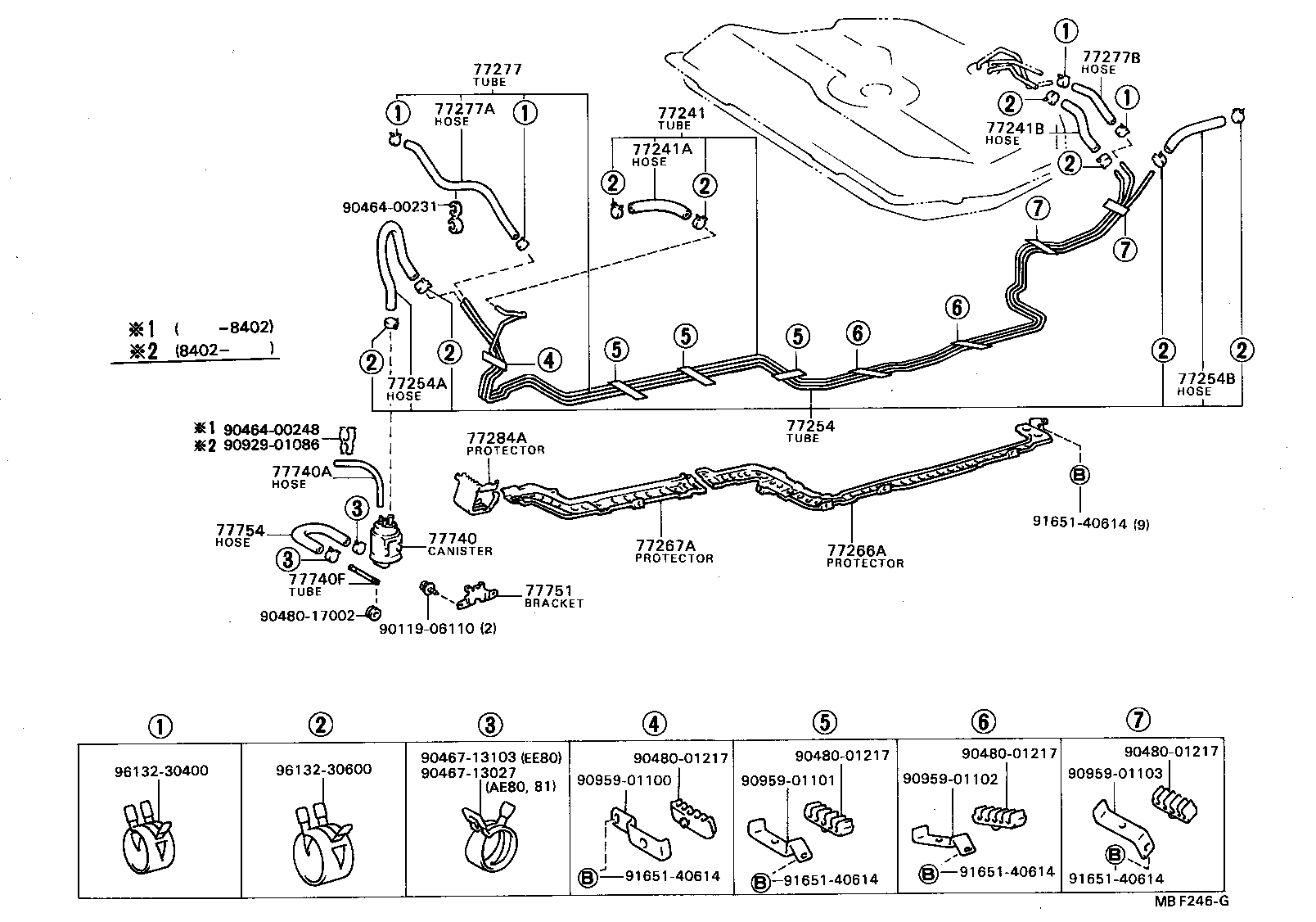

ILLUST NO. 2 OF 2(8305- )AE80,81,EE80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-12180 |
AE80,81,EE80 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE80,81,EE80 *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE80,81 *H,L=130 |
1 | ||
| 95332-06020 |
AE80,81 *H,L=140 |
1 | ||
| 95332-06020 |
AE80,81,EE80 *H,L=140 |
1 | ||
| 77259-16040 |
AE81,EE80 L=135 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-12140 |
AE8# |
1 | ||
| 77019-12150 |
AE81,EE80 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06040 |
AE8# *H,L=340 |
1 | ||
| 95332-06040 |
AE81,EE80 *H,L=320 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
AE8#,EE80 *H,L=140 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12020 |
AE8#,CE80,EE80 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12040 |
AE8#,CE80,EE80 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77207-12030 |
AE80,81 |
1 | ||
| 77207-12180 |
AE81,EE80 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15060 |
AE80,81 |
1 | ||
| 23271-15150 |
AE81,EE80 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-04016 |
AE81,EE80 *H,L=160 |
1 | ||
| 95332-04020 |
AE80,81,EE80 *H,L=160 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12010 |
AE8#,CE80,EE80 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12250 |
AE80,81 ND |
1 | ||
| 77704-12310 |
AE80,81 AISAN |
1 | ||
| 77740-12420 |
AE81,EE80 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95413-49975 |
AE80,81 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-12100 |
AE8#,EE80 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-12050 |
AE8# |
1 | ||
| 77751-12110 |
AE8#,EE80 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12020 |
AE8#,EE80 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90464-00231 | ||||
| 90464-00248 | ||||
| 90467-13027 | ||||
| 90467-13103 | ||||
| 90480-01217 | ||||
| 90480-17002 | ||||
| 90929-01086 | ||||
| 90959-01100 | ||||
| 90959-01101 | ||||
| 90959-01102 | ||||
| 90959-01103 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
