AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

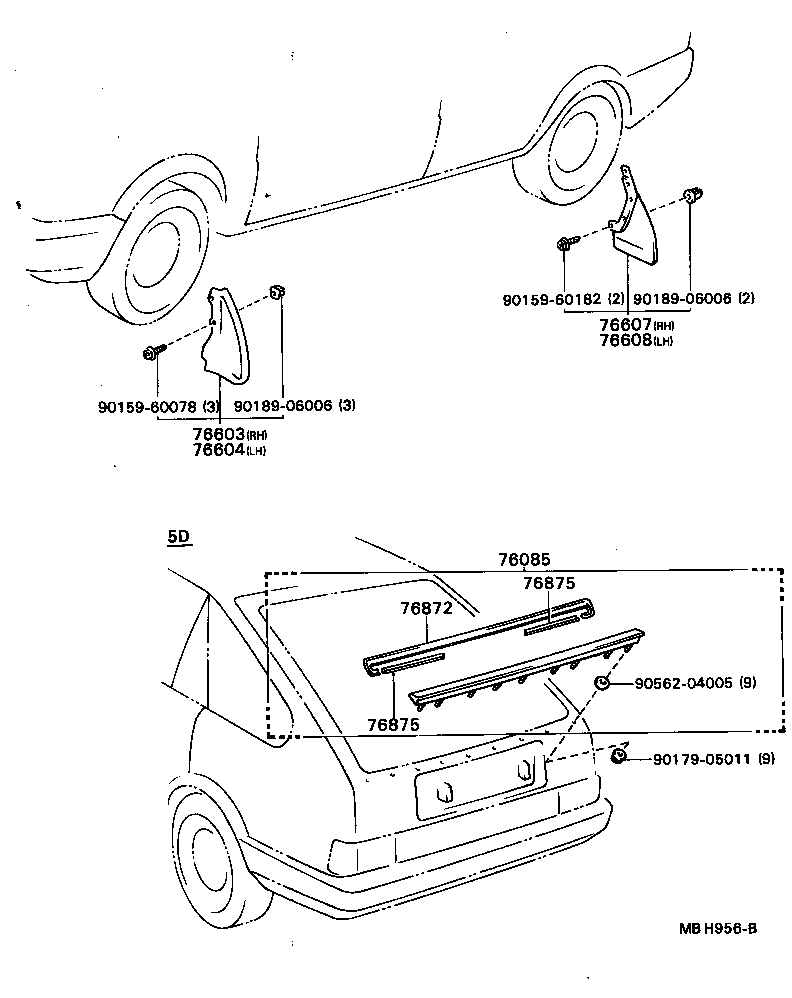

(8305-8505)

Click highlighted areas on diagram

diagram 76085 76603 76604 76607 76608 76872 76875 76875 9015960078 9015960182 9017905011 9018906006 9018906006 9056204005
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19085

AE8#,CE80

 1
76621-19086

AE8#,CE80,EE80

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19085

AE8#,CE80

 1
76622-19086

AE8#,CE80,EE80

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19035

AE8#,CE80

 1
76625-19036

AE8#,CE80

 1
76625-19125

AE8#,CE80,EE80..DX,SE,SPD,XL,ZX

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19135

AE8#,CE80,EE80..DX,SE,SPD,XL,ZX

 1
76626-19046

AE8#,CE80

 1
76626-19045

AE8#,CE80

 1
Common parts
90159-60078
90159-60182
90179-05011
90189-06006
90562-04005

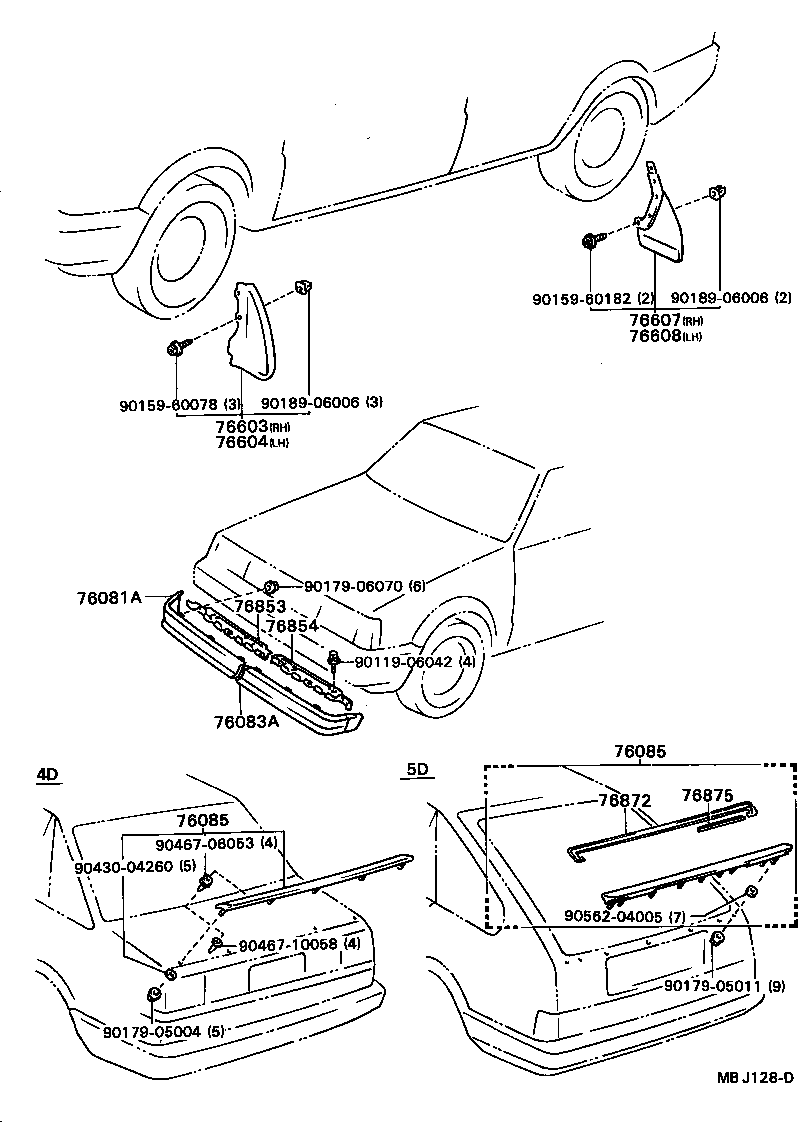

(8505- )

Click highlighted areas on diagram

diagram 76081A 76083A 76085 76085 76603 76604 76607 76608 76853 76854 76872 76875 9011906042 9015960078 9015960182 9017905004 9017905011 9017906070 9018906006 9018906006 9043004260 9046706053 9046710058 9056204005
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19085

AE8#,CE80

 1
76621-19086

AE8#,CE80,EE80

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19085

AE8#,CE80

 1
76622-19086

AE8#,CE80,EE80

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19035

AE8#,CE80

 1
76625-19036

AE8#,CE80

 1
76625-19125

AE8#,CE80,EE80..DX,SE,SPD,XL,ZX

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19135

AE8#,CE80,EE80..DX,SE,SPD,XL,ZX

 1
76626-19046

AE8#,CE80

 1
76626-19045

AE8#,CE80

 1
Common parts
90119-06042
90159-60078
90159-60182
90179-05004
90179-05011
90179-06070
90189-06006
90430-04260
90467-06053
90467-10058
90562-04005
