AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4D

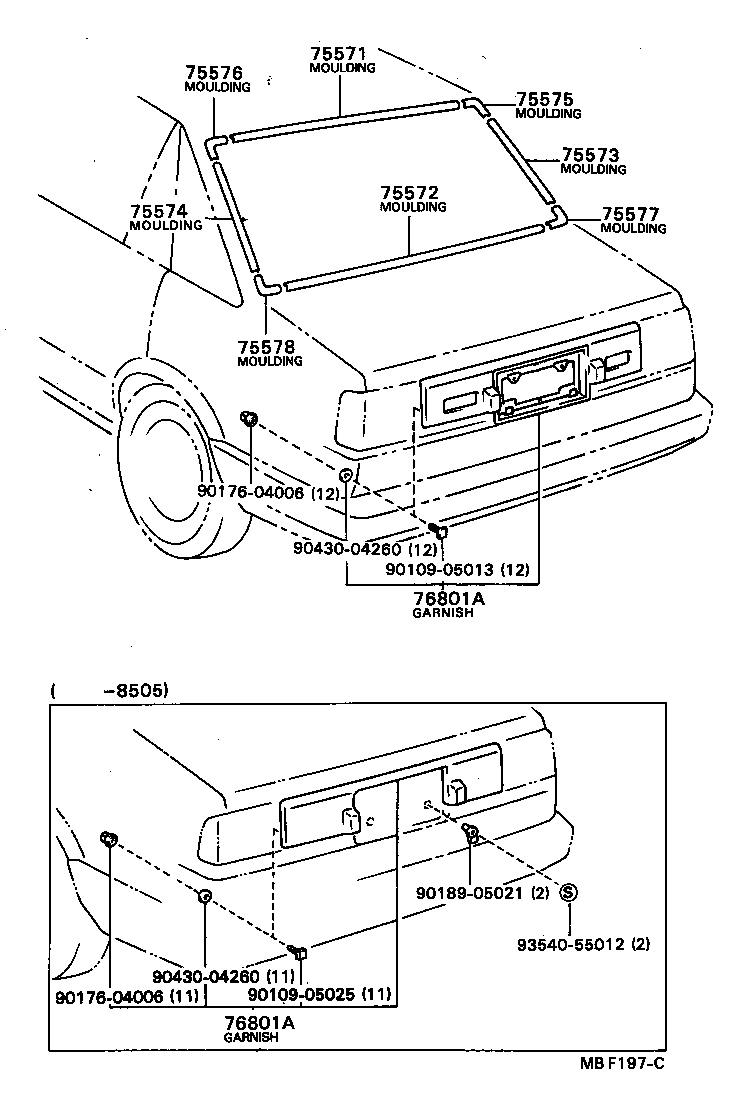

Click highlighted areas on diagram

diagram 75571 75572 75573 75574 75575 75576 75577 75578 76801A 76801A 9010905013 9010905025 9017604006 9017604006 9018905021 9043004260 9043004260 9354055012
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-12190

AE81,CE80,EE80..4D..(DX,SPD,XL)

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-12190

AE81,CE80,EE80..4D..(DX,SPD,XL)

 1
Common parts
90109-05013
90109-05025
90176-04006
90189-05021
90430-04260
93540-55012
