Toyota Sprinter AE81 EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

Manufacturers Home
Toyota
JP
SPRINTER
AE81-FEKDS (1983)
7501 - EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987

Engine 3ALU

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8305-8505)

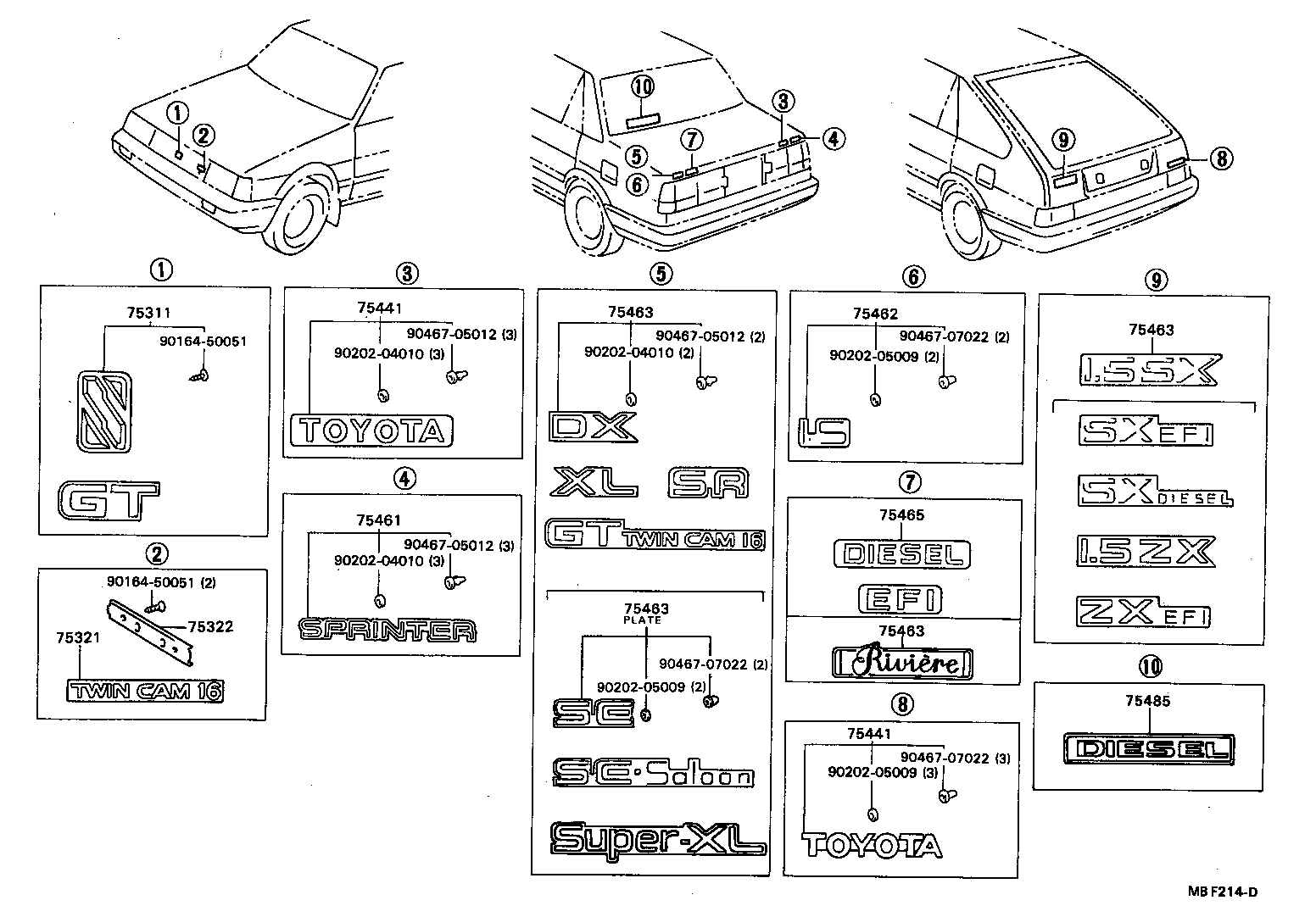

Click highlighted areas on diagram

Part #	Description	Period	Qty
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80029	AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX	05/1983 - 05/1985	1
75441 - PLATE, REAR NAME, NO.1
75441-12290	AE8#,CE80..4D TOYOTA	05/1983 - 01/1984	1
75441-12340	AE8#,CE80..4D TOYOTA	01/1984 - 05/1985	1
75441-12390	AE8#,CE80,EE80..4D TOYOTA	05/1985 - 09/1986	1
75441-12391	AE8#,CE80,EE80..4D TOYOTA	09/1986 - 04/1987	1
75441 - PLATE, REAR NAME, NO.1
75441-12290	AE8#,CE80..4D TOYOTA	05/1983 - 01/1984	1
75441-12340	AE8#,CE80..4D TOYOTA	01/1984 - 05/1985	1
75441-12390	AE8#,CE80,EE80..4D TOYOTA	05/1985 - 09/1986	1
75441-12391	AE8#,CE80,EE80..4D TOYOTA	09/1986 - 04/1987	1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-12750	AE8#,CE80,EE80..4D SPRINTER	05/1985 - 09/1986	1
75442-12760	AE8#,CE80..4D SPRINTER	05/1983 - 01/1984	1
75442-12751	AE8#,CE80,EE80..4D SPRINTER	09/1986 - 04/1987	1
75442-12820	AE8#,CE80..4D SPRINTER	01/1984 - 05/1985	1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75444-12200	AE81..4D 1.5	05/1985 - 09/1986	1
75444-12140	AE81..4D 1.5	05/1983 - 01/1984	1
75444-12170	AE81..4D 1.5	01/1984 - 05/1985	1
75444-12201	AE81..4D 1.5	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
Common parts
90164-50051
90202-04010
90202-05009
90467-05012
90467-07022

(8505- )

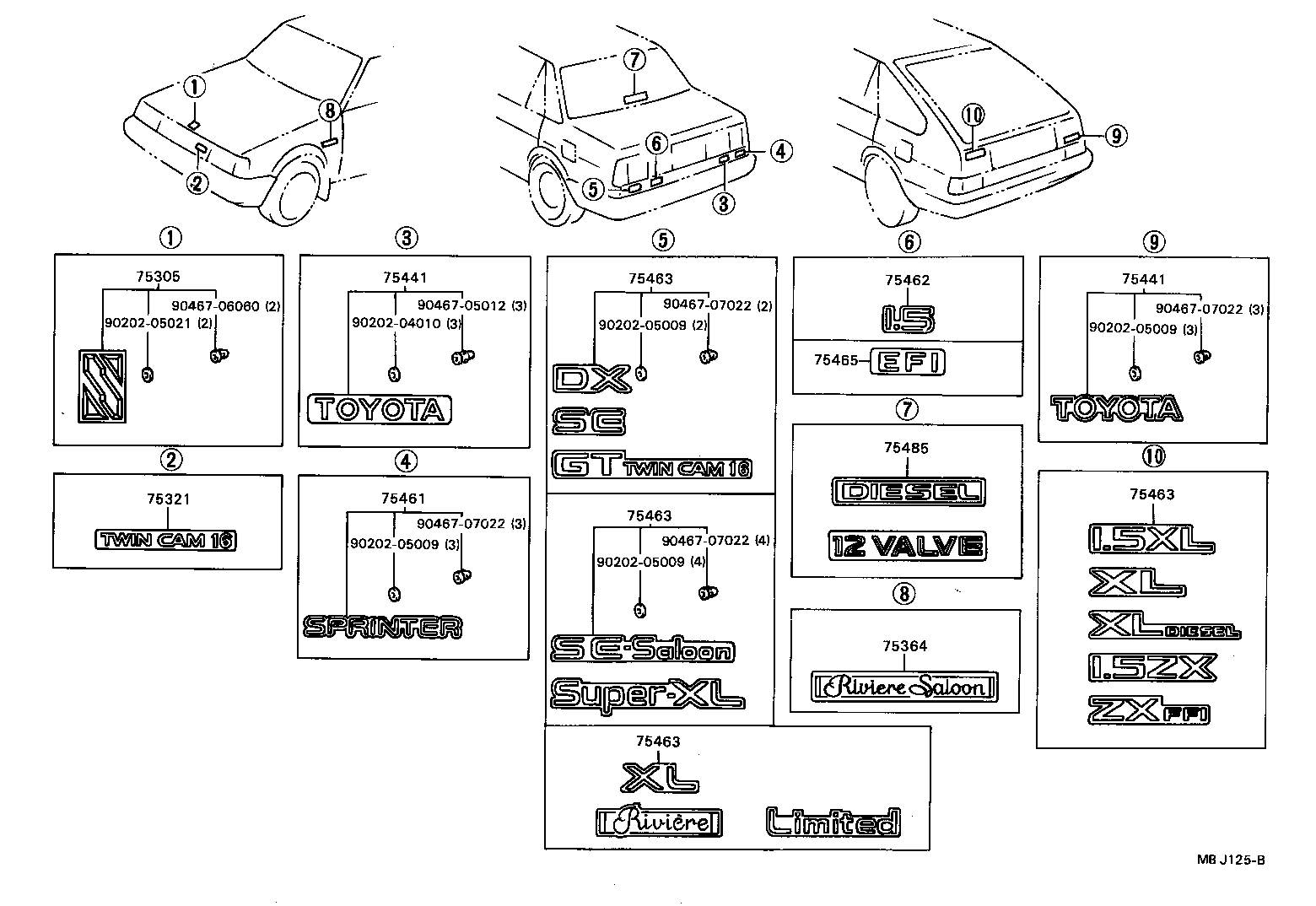

Click highlighted areas on diagram

Part #	Description	Period	Qty
75305 - EMBLEM, HOOD
75331-12030	AE8#,CE80,EE80	05/1985 - 04/1987	1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75473-12060	AE81,CE80,EE80..DX RIVIERE SALOON	10/1985 - 04/1987	2
75441 - PLATE, REAR NAME, NO.1
75441-12290	AE8#,CE80..4D TOYOTA	05/1983 - 01/1984	1
75441-12340	AE8#,CE80..4D TOYOTA	01/1984 - 05/1985	1
75441-12390	AE8#,CE80,EE80..4D TOYOTA	05/1985 - 09/1986	1
75441-12391	AE8#,CE80,EE80..4D TOYOTA	09/1986 - 04/1987	1
75441 - PLATE, REAR NAME, NO.1
75441-12290	AE8#,CE80..4D TOYOTA	05/1983 - 01/1984	1
75441-12340	AE8#,CE80..4D TOYOTA	01/1984 - 05/1985	1
75441-12390	AE8#,CE80,EE80..4D TOYOTA	05/1985 - 09/1986	1
75441-12391	AE8#,CE80,EE80..4D TOYOTA	09/1986 - 04/1987	1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-12750	AE8#,CE80,EE80..4D SPRINTER	05/1985 - 09/1986	1
75442-12760	AE8#,CE80..4D SPRINTER	05/1983 - 01/1984	1
75442-12751	AE8#,CE80,EE80..4D SPRINTER	09/1986 - 04/1987	1
75442-12820	AE8#,CE80..4D SPRINTER	01/1984 - 05/1985	1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75444-12200	AE81..4D 1.5	05/1985 - 09/1986	1
75444-12140	AE81..4D 1.5	05/1983 - 01/1984	1
75444-12170	AE81..4D 1.5	01/1984 - 05/1985	1
75444-12201	AE81..4D 1.5	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-12410	AE80,81,CE80..DX,SPD DX	05/1983 - 01/1984	1
75443-12340	AE81,CE80,EE80..DX,SPD DX	05/1985 - 09/1986	1
75443-12620	AE80,81,CE80..DX,SPD DX	01/1984 - 05/1985	1
75443-12341	AE81,CE80,EE80..DX,SPD DX	09/1986 - 04/1987	1
75447-12021	AE81,CE80,EE80..DX RIVIERE	05/1985 - 09/1986	1
75447-12022	AE81,CE80,EE80..DX RIVIERE	09/1986 - 04/1987	1
Common parts
90202-04010
90202-05009
90202-05021
90467-05012
90467-06060
90467-07022

AE81-FEKDS (1983)

(8305-8505)

(8505- )
