AE81-FEKDS (1983)
Toyota Sprinter

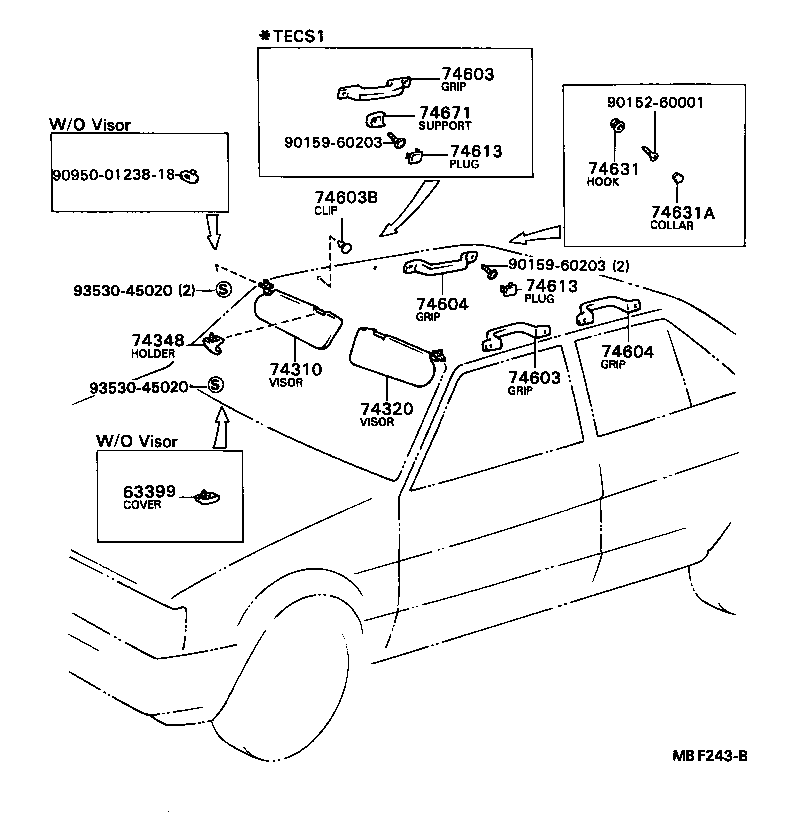

ILLUST NO. 2 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-12400 |
AE8#,CE80..DX,SPD,SX,XL W/O HOLDER,SUN ROOF |
1 | ||
| 74310-1240108 |
AE81,CE80,EE80..DX,SPD,XL W/O HOLDER,IVORY,IVORY,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-12330 |
AE8#,CE80 |
1 | ||
| 74320-1233108 |
AE81,CE80,EE80..DX,SPD,XL IVORY,IVORY,TRIM4# |
1 | ||
| 74320-12330 |
AE8#,CE80..DX,SPD,SR,SX,XL,ZX |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3201008 |
AE8#,CE80,EE80 IVORY |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-1203008 |
AE8#,CE80,EE80 W/O SUN ROOF,IVORY,IVORY,TRIM3#,4# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-1203008 |
AE8#,CE80,EE80 W/O SUN ROOF,IVORY,IVORY,TRIM3#,4# |
1 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-0604808 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX IVORY,IVORY,TRIM3#,4# |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-1203008 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX W/O SUN ROOF,IVORY,IVORY,TRIM3#,4# |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-1203008 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX W/O SUN ROOF,IVORY,IVORY,TRIM3#,4# |
2 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-1601008 |
AE8#,CE80,EE80 FR,IVORY,IVORY,TRIM3#,4# |
2 | ||
| 74617-1601008 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX RR,IVORY,IVORY,TRIM3#,4# |
4 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-1601008 |
AE8#,CE80,EE80 FR,IVORY,IVORY,TRIM3#,4# |
2 | ||
| 74617-1601008 |
AE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX RR,IVORY,IVORY,TRIM3#,4# |
4 | ||
| Common parts | ||||
| 90152-60001 | ||||
| 90159-60203 | ||||
| 90950-0123818 | ||||
| 93530-45020 | ||||

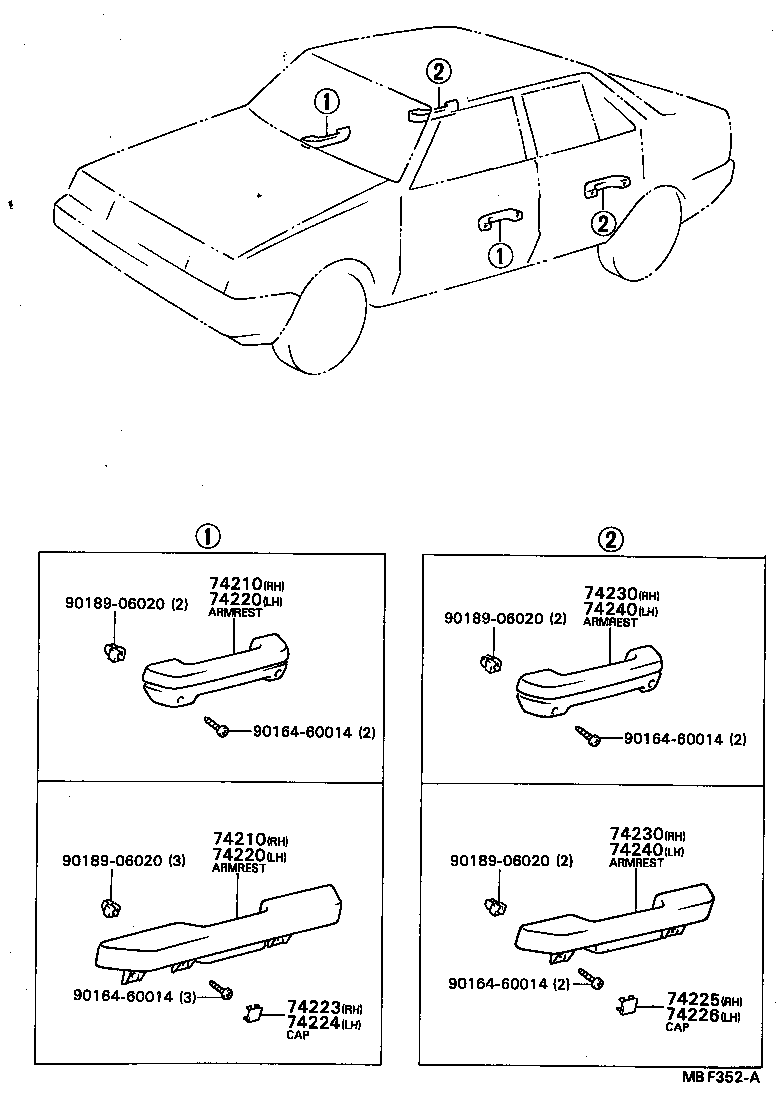

ILLUST NO. 1 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM4# |
1 | ||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM4# |
1 | ||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-1209005 |
AE8#,CE80..DX,SPD,SX,XL BEIGE,BEIGE,TRIM3# |
1 | ||
| 74210-1209002 |
AE8#,CE80..DX,SPD,SX,XL MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1209004 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209006 |
AE8#,CE80..DX,SPD,SX,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1211004 |
AE81,CE80,EE80..DX,SPD,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1209014 |
AE8#,CE80..DX,SPD,SX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1211003 |
AE81,CE80,EE80..DX,SPD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1209003 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| 74210-1211006 |
AE81,CE80,EE80..DX,SPD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 74210-1209013 |
AE8#,CE80..DX,SPD,SX,XL GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90189-06020 | ||||
