AE81-FEKDS (1983)
Toyota Sprinter
ILLUST NO. 1 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12350 |
AE8#,CE80,EE80..4D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12350 |
AE8#,CE80,EE80..4D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12120 |
AE8#,CE80,EE80 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12120 |
AE8#,CE80,EE80 |
1 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12130 |
AE8#,CE80,EE80..4D |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12130 |
AE8#,CE80,EE80..4D |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12160 |
AE8#,CE80 |
1 | ||
| 67841-12170 |
AE8#,CE80,EE80 |
1 | ||
| 67841-12180 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-12180 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67842-12040 |
AE8#,CE80 |
1 | ||
| 67842-12050 |
AE8#,CE80,EE80 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12030 |
AE8#,CE80,EE80 COLD SPEC |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-12010 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-12010 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12250 |
AE8#,CE80,EE80..4D |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE8#,CE80,EE80 |
34 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12250 |
AE8#,CE80,EE80..4D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12130 |
AE8#,CE80,EE80 *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12130 |
AE8#,CE80,EE80 *TT,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-12210 |
AE8#,CE80,EE80..4D *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-12210 |
AE8#,CE80,EE80..4D *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-12061 |
AE8#,CE80,EE80..4D |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68180-12050 |
AE80,81,CE80,EE80..DX,SPD RH |
1 | ||
| 68230-12030 |
AE80,81,CE80,EE80..DX,SPD LH |
1 | ||
| 68163A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12080 |
AE80,81,CE80,EE80..DX,SPD |
8 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12110 |
AE80,81,CE80,EE80..DX,SPD |
1 | ||
| 68188-12170 |
AE81,CE80,EE80..DX RIVIERE |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12170 |
AE81,CE80,EE80..DX RIVIERE |
1 | ||
| 68189-12110 |
AE80,81,CE80,EE80..DX,SPD |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12020 |
AE8#,CE80,EE80 |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-90A00 |
AE8#,CE80,EE80 |
2 | ||
| 68617-12010 |
AE8#,CE80,EE80 |
2 | ||
| 68617-22010 |
AE8#,CE80 |
2 | ||
| Common parts | ||||
| 90333-35002 | ||||
| 90333-48001 | ||||
| 90950-01060 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93229-15008 | ||||

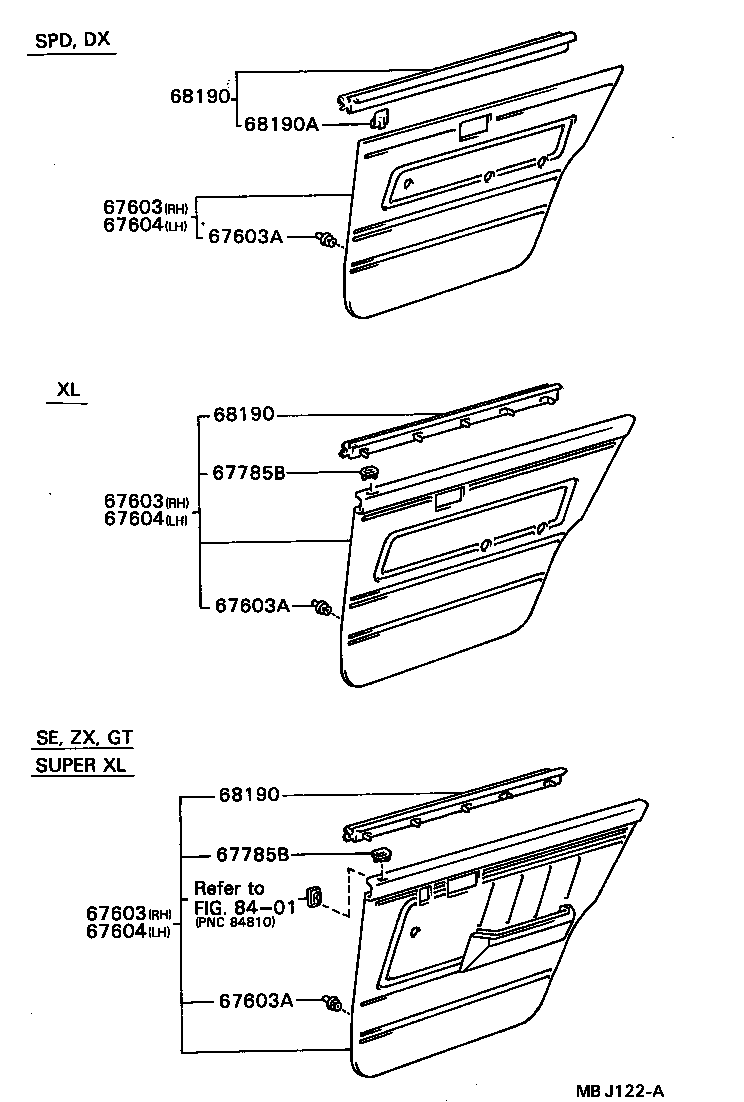

ILLUST NO. 2 OF 2(8305-8505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12100 |
AE80,81,CE80,EE80..DX,SPD RH |
1 | ||
| 68240-12050 |
AE80,81,CE80,EE80..DX,SPD LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12100 |
AE80,81,CE80,EE80..DX,SPD RH |
1 | ||
| 68240-12050 |
AE80,81,CE80,EE80..DX,SPD LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12100 |
AE80,81,CE80,EE80..DX,SPD RH |
1 | ||
| 68240-12050 |
AE80,81,CE80,EE80..DX,SPD LH |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
10 | ||
| Linked diagrams | ||||
| 8401 | ||||

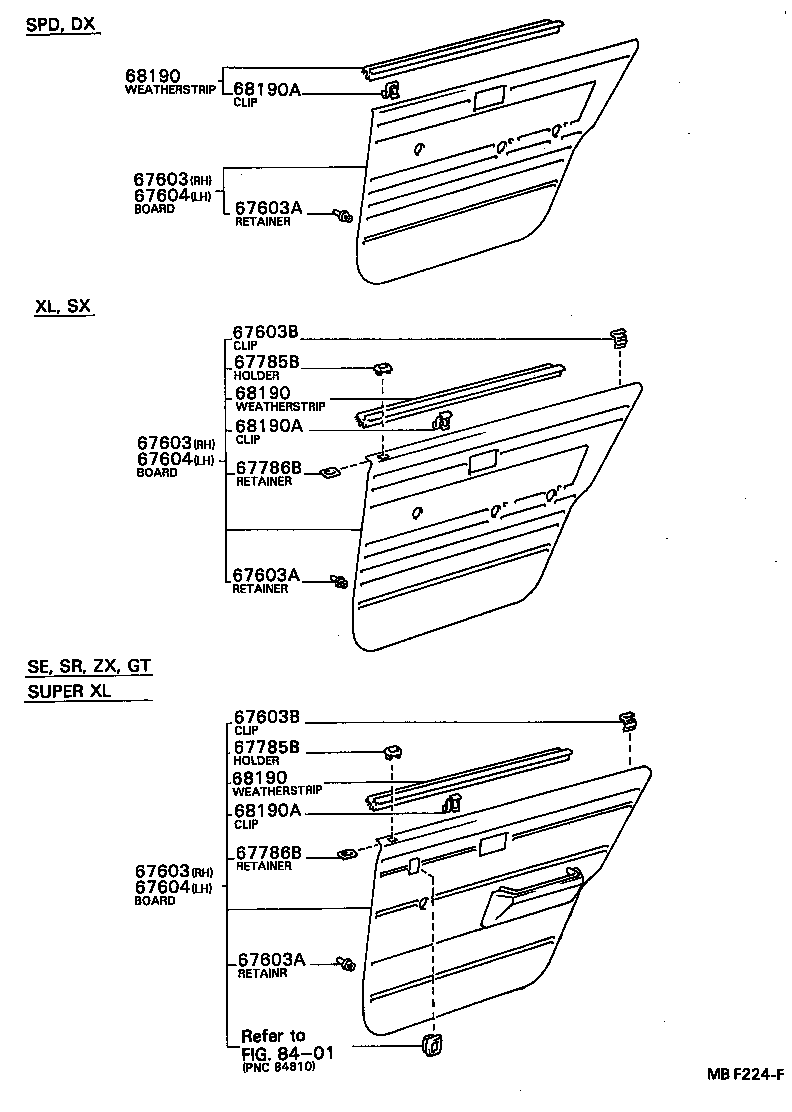

ILLUST NO. 2 OF 2(8505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67630-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67630-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1239002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1232004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67640-1232003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1239003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1232106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1232104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1232103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1239106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1239104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12100 |
AE80,81,CE80,EE80..DX,SPD RH |
1 | ||
| 68240-12050 |
AE80,81,CE80,EE80..DX,SPD LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12100 |
AE80,81,CE80,EE80..DX,SPD RH |
1 | ||
| 68240-12050 |
AE80,81,CE80,EE80..DX,SPD LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12100 |
AE80,81,CE80,EE80..DX,SPD RH |
1 | ||
| 68240-12050 |
AE80,81,CE80,EE80..DX,SPD LH |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
10 | ||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
