AE81-FEKDS (1983)
Toyota Sprinter

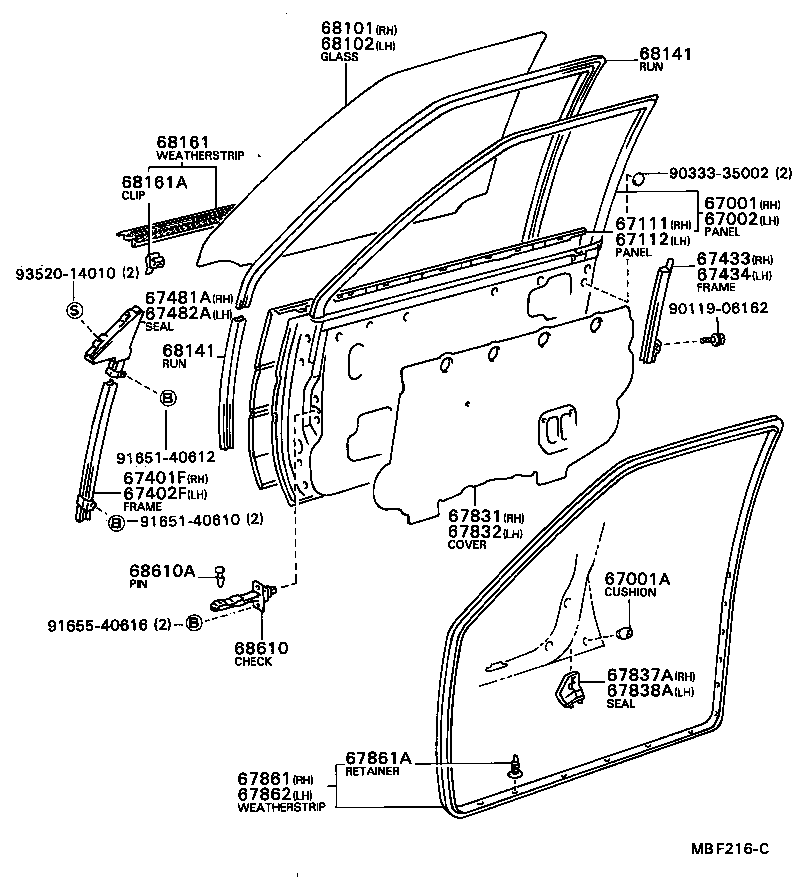

ILLUST NO. 1 OF 2(8305- )DX,SPD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-12860 |
AE8#,CE80,EE80 |
1 | ||
| 67001-12860 |
AE80,81,CE80 |
1 | ||
| 67001-12861 |
AE8#,CE80,EE80 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AE8#,CE80,EE80 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-12840 |
AE80,81,CE80 |
1 | ||
| 67002-12840 |
AE8#,CE80,EE80 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12400 |
AE8#,CE80,EE80 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12390 |
AE8#,CE80,EE80 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12190 |
AE80,81,CE80,EE80..DX,SPD W/O DOOR MIRROR |
1 | ||
| 67401-12230 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67401-12210 |
AE80,81,CE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12250 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67402-12200 |
AE80,81,CE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67402-12180 |
AE80,81,CE80,EE80..DX,SPD W/O DOOR MIRROR |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-12050 |
AE8#,CE80,EE80 |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-12050 |
AE8#,CE80,EE80 |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-12160 |
AE80,81,CE80,EE80..DX,SPD W/O DOOR MIRROR |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-12130 |
AE80,81,CE80,EE80..DX,SPD W/O DOOR MIRROR |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12280 |
AE8#,CE80,EE80 |
1 | ||
| 67831-12290 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67831-12270 |
AE8#,CE80 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12140 |
AE8#,CE80 |
1 | ||
| 67832-12150 |
AE8#,CE80,EE80 |
1 | ||
| 67831-12290 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-12030 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-12020 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12530 |
AE8#,CE80,EE80 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE8#,CE80,EE80 |
36 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12510 |
AE8#,CE80,EE80 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-12570 |
AE80,81,CE80,EE80..DX,SPD W/*DM,*TT,T=3.5 |
1 | ||
| 68111-12570 |
AE81,CE80,EE80..DX RIVIERE,*TT,T=3.5 |
1 | ||
| 68111-12540 |
AE80,81,CE80,EE80..DX,SPD W/O *DM,*TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-12570 |
AE81,CE80,EE80..DX RIVIERE,*TT,T=3.5 |
1 | ||
| 68112-12570 |
AE80,81,CE80,EE80..DX,SPD W/*DM,*TT,T=3.5 |
1 | ||
| 68112-12540 |
AE80,81,CE80,EE80..DX,SPD W/O *DM,*TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-12040 |
AE80,81,CE80,EE80..DX,SPD SHORT,W/O DOOR MIRROR |
2 | ||
| 68141-12231 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
2 | ||
| 68141-12221 |
AE80,81,CE80,EE80..DX,SPD LONG,W/O DOOR MIRROR |
2 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-12040 |
AE80,81,CE80,EE80..DX,SPD SHORT,W/O DOOR MIRROR |
2 | ||
| 68141-12231 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
2 | ||
| 68141-12221 |
AE80,81,CE80,EE80..DX,SPD LONG,W/O DOOR MIRROR |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-12130 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68160-12140 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68210-12100 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68210-12090 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12080 |
AE80,81,CE80,EE80..DX,SPD |
12 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12030 |
AE8#,CE80,EE80 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
AE8#,CE80 |
2 | ||
| 68617-12010 |
AE8#,CE80,EE80 |
2 | ||
| 68617-90A00 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90333-35002 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93520-14010 | ||||

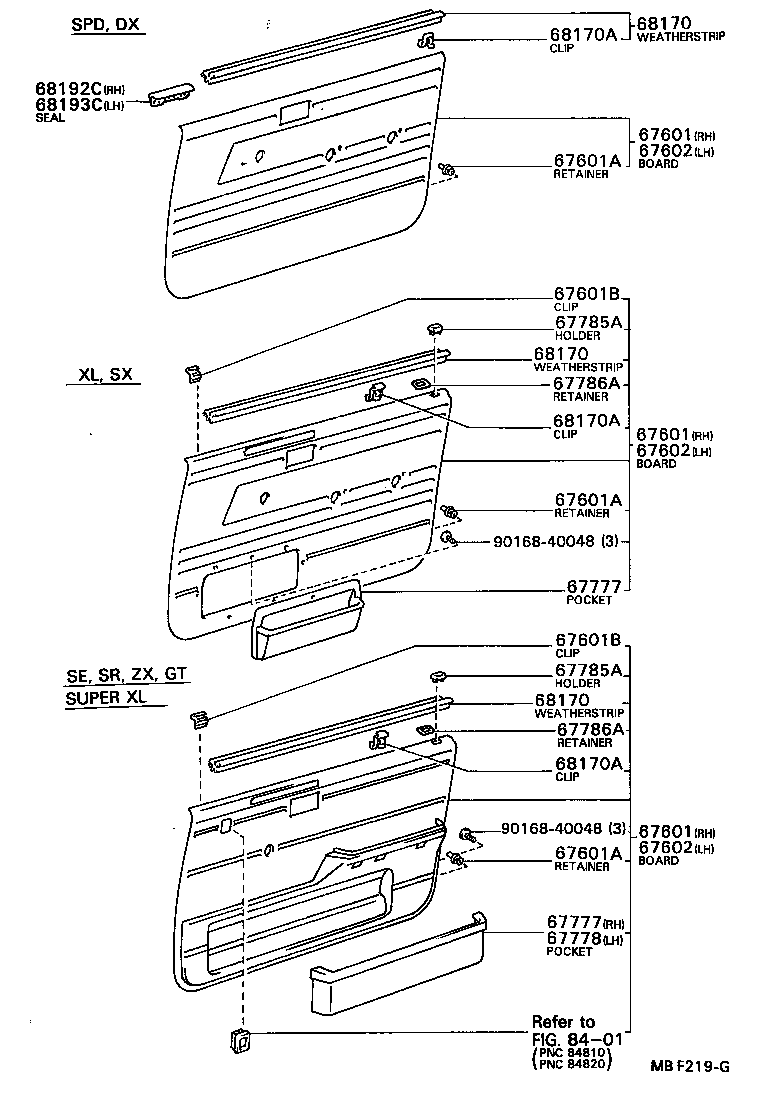

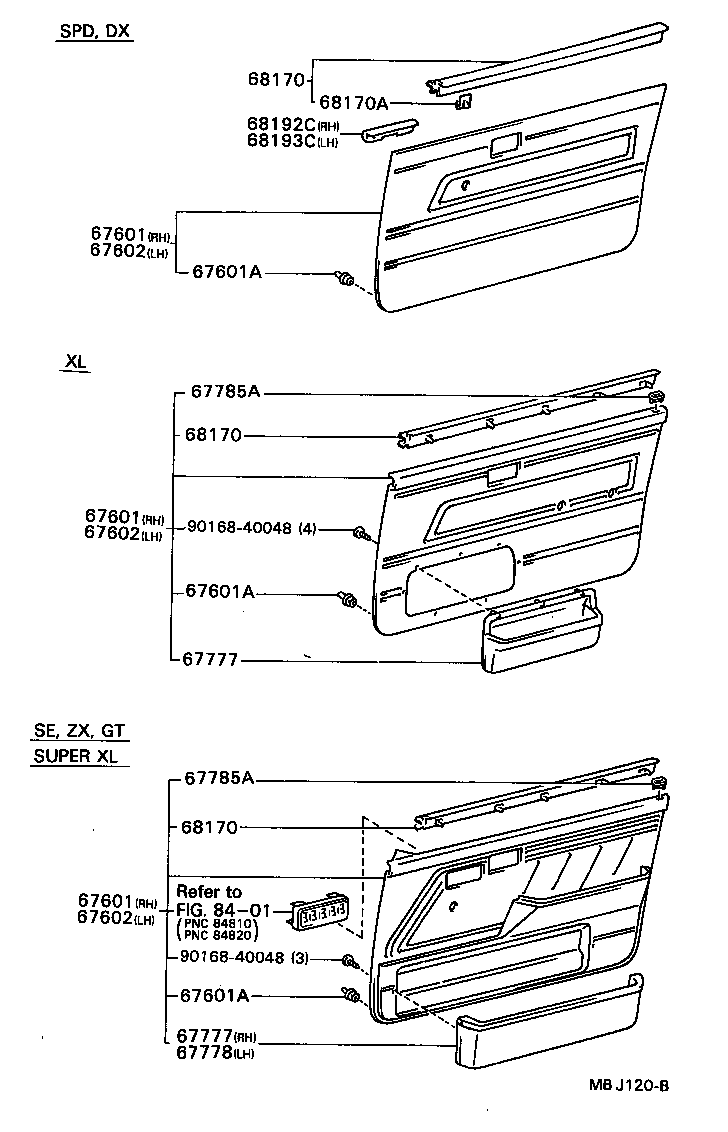

ILLUST NO. 2 OF 2(8305-8505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1220002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1220003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1244004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1220103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1244103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1244104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1220002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1220003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1244004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1220103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1244103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1244104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1220002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1220003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1244004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1220103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1244103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1244104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
28 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
28 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
28 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A13003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A29002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A13002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1A29004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A13103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A29104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A13003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A29002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A13002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1A29004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A13103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A29104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A13003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A29002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A13002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1A29004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A13103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A29104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12240 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68220-12170 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68220-12180 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68170-12250 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12240 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68220-12170 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68220-12180 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68170-12250 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12240 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68220-12170 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68220-12180 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68170-12250 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
12 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
12 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
12 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-12020 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68192-12020 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| Common parts | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-12860 |
AE8#,CE80,EE80 |
1 | ||
| 67001-12860 |
AE80,81,CE80 |
1 | ||
| 67001-12861 |
AE8#,CE80,EE80 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AE8#,CE80,EE80 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-12840 |
AE80,81,CE80 |
1 | ||
| 67002-12840 |
AE8#,CE80,EE80 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12400 |
AE8#,CE80,EE80 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12390 |
AE8#,CE80,EE80 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12190 |
AE80,81,CE80,EE80..DX,SPD W/O DOOR MIRROR |
1 | ||
| 67401-12230 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67401-12210 |
AE80,81,CE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12250 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67402-12200 |
AE80,81,CE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67402-12180 |
AE80,81,CE80,EE80..DX,SPD W/O DOOR MIRROR |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-12050 |
AE8#,CE80,EE80 |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-12050 |
AE8#,CE80,EE80 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12110 |
AE81,EE80..DX RIVIERE |
1 | ||
| 67491-12110 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12110 |
AE81,EE80..DX RIVIERE |
1 | ||
| 67492-12110 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-12070 |
AE81,CE80,EE80..DX RIVIERE,RH,W/FENDER MIRROR |
1 | ||
| 67496-12070 |
AE81,CE80,EE80..DX RIVIERE,LH,W/FENDER MIRROR |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30010 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12280 |
AE8#,CE80,EE80 |
1 | ||
| 67831-12290 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67831-12270 |
AE8#,CE80 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12140 |
AE8#,CE80 |
1 | ||
| 67832-12150 |
AE8#,CE80,EE80 |
1 | ||
| 67831-12290 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-12030 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-12020 |
AE8#,CE80,EE80 COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12530 |
AE8#,CE80,EE80 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE8#,CE80,EE80 |
36 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12510 |
AE8#,CE80,EE80 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-12570 |
AE80,81,CE80,EE80..DX,SPD W/*DM,*TT,T=3.5 |
1 | ||
| 68111-12570 |
AE81,CE80,EE80..DX RIVIERE,*TT,T=3.5 |
1 | ||
| 68111-12540 |
AE80,81,CE80,EE80..DX,SPD W/O *DM,*TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-12570 |
AE81,CE80,EE80..DX RIVIERE,*TT,T=3.5 |
1 | ||
| 68112-12570 |
AE80,81,CE80,EE80..DX,SPD W/*DM,*TT,T=3.5 |
1 | ||
| 68112-12540 |
AE80,81,CE80,EE80..DX,SPD W/O *DM,*TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-12040 |
AE80,81,CE80,EE80..DX,SPD SHORT,W/O DOOR MIRROR |
2 | ||
| 68141-12231 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
2 | ||
| 68141-12221 |
AE80,81,CE80,EE80..DX,SPD LONG,W/O DOOR MIRROR |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-12130 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68160-12140 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68210-12100 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68210-12090 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12080 |
AE80,81,CE80,EE80..DX,SPD |
12 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12030 |
AE8#,CE80,EE80 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
AE8#,CE80 |
2 | ||
| 68617-12010 |
AE8#,CE80,EE80 |
2 | ||
| 68617-90A00 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90333-35002 | ||||
| 91651-40610 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
| 93520-14010 | ||||
ILLUST NO. 2 OF 2(8505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1220002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1220003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1244004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1220103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1244103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1244104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1220002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1220003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1244004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1220103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1244103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1244104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1220002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1220003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67650-1244004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1220103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1220104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1244106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1244103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1244104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
28 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
28 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80 |
28 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A13003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A29002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A13002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1A29004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A13103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A29104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A13003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A29002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A13002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1A29004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A13103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A29104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1A13003 |
AE80,81,CE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13004 |
AE80,81,CE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29003 |
AE80,81,CE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A29002 |
AE80,81,CE80..DX,SPD COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-1A13002 |
AE80,81,CE80..DX,SPD MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1A29004 |
AE80,81,CE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A13103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29103 |
AE81,CE80,EE80..DX,SPD COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1A13106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1A29104 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1A29106 |
AE81,CE80,EE80..DX,SPD COLD SPEC,BROWN,BROWN,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12240 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68220-12170 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68220-12180 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68170-12250 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12240 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68220-12170 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68220-12180 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68170-12250 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-12240 |
AE80,81,CE80,EE80..DX,SPD RH,W/O DOOR MIRROR |
1 | ||
| 68220-12170 |
AE80,81,CE80,EE80..DX,SPD LH,W/O DOOR MIRROR |
1 | ||
| 68220-12180 |
AE80,81,CE80,EE80..DX,SPD LH,W/DOOR MIRROR |
1 | ||
| 68170-12250 |
AE80,81,CE80,EE80..DX,SPD RH,W/DOOR MIRROR |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE80,81,CE80,EE80..DX,SPD |
12 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-12020 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68192-12020 |
AE80,81,CE80,EE80..DX,SPD W/DOOR MIRROR |
1 | ||
| Common parts | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
