AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4D

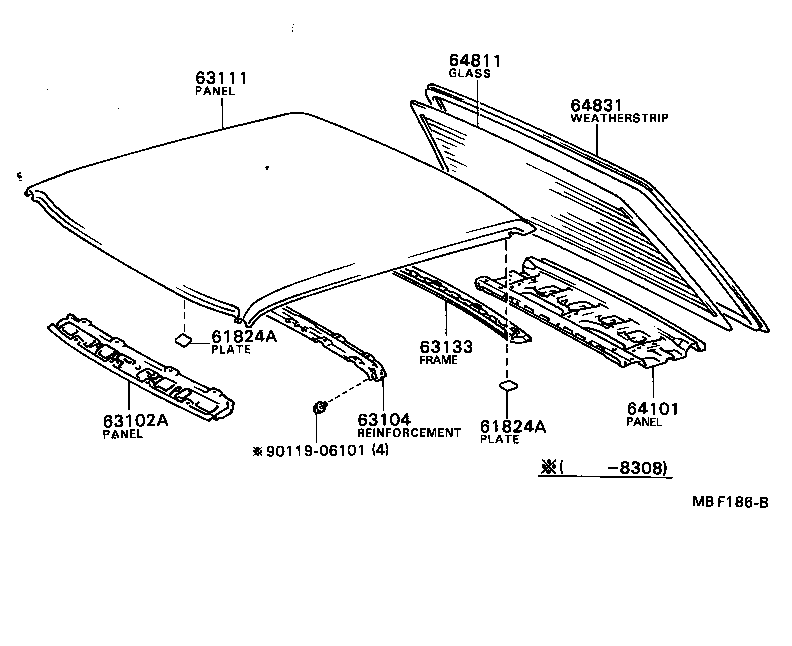

Click highlighted areas on diagram

diagram 61824A 61824A 63102A 63104 63111 63133 64101 64811 64831 9011906101
Part # Description Qty Price
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..4D

 4
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..4D

 4
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12030

AE8#,CE80,EE80

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-12100

AE8#,CE80

W/O SUN ROOF

 1
63141-12120

AE8#,CE80,EE80

W/O SUN ROOF

 1
63111 - PANEL, ROOF
63111-12250

AE8#,CE80,EE80..4D

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-12150

AE8#,CE80,EE80..4D

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12290

AE80,81,CE80..DX,SPD,XL

 1
64101-12290

AE8#,CE80,EE80..4D..(DX,SE,SPD,XL)

 1
64811 - GLASS, BACK WINDOW
64801-12390

AE8#,CE80,EE80..4D

*EHTT,T=3.5

 1
64811-12730

AE80,81,CE80,EE80..DX,SPD

*TT,T=3.5

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-12300

AE8#,CE80,EE80..4D..(DX,SPD,SR,XL)

 1
Common parts
90119-06101
