AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

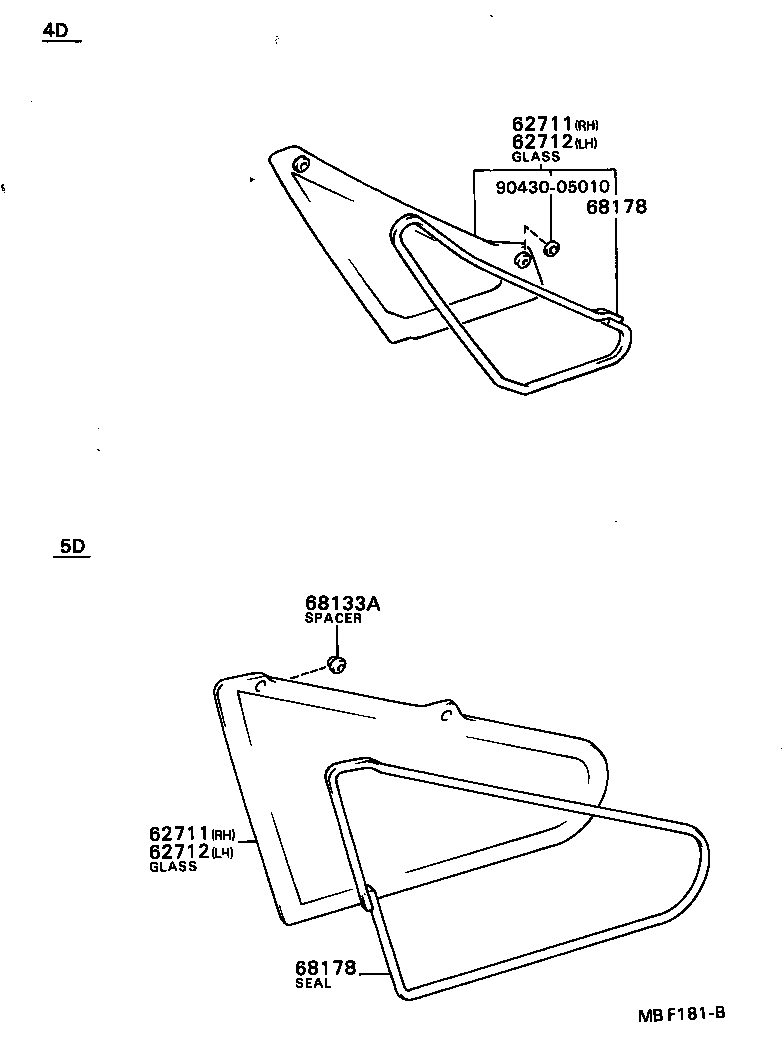

Click highlighted areas on diagram

diagram 62711 62711 62712 62712 68133A 68178 68178 9043005010
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-12370

AE8#,CE80..4D

*TT,T=3.5

 1
62711-12480

AE8#,CE80,EE80..4D

*TT,T=4.0

 1
62711 - GLASS, QUARTER WINDOW, RH
62711-12370

AE8#,CE80..4D

*TT,T=3.5

 1
62711-12480

AE8#,CE80,EE80..4D

*TT,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-12370

AE8#,CE80..4D

*TT,T=3.5

 1
62712-12480

AE8#,CE80,EE80..4D

*TT,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-12370

AE8#,CE80..4D

*TT,T=3.5

 1
62712-12480

AE8#,CE80,EE80..4D

*TT,T=4.0

 1
68178 - SEAL, QUARTER WINDOW NO.2 GLASS
68177-12020

AE8#,CE80,EE80

 2
68178 - SEAL, QUARTER WINDOW NO.2 GLASS
68177-12020

AE8#,CE80,EE80

 2
Common parts
90430-05010
