AE81-FEKDS (1983)
Toyota Sprinter
Production
May 1983
-
Apr 1987
Engine
3ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )

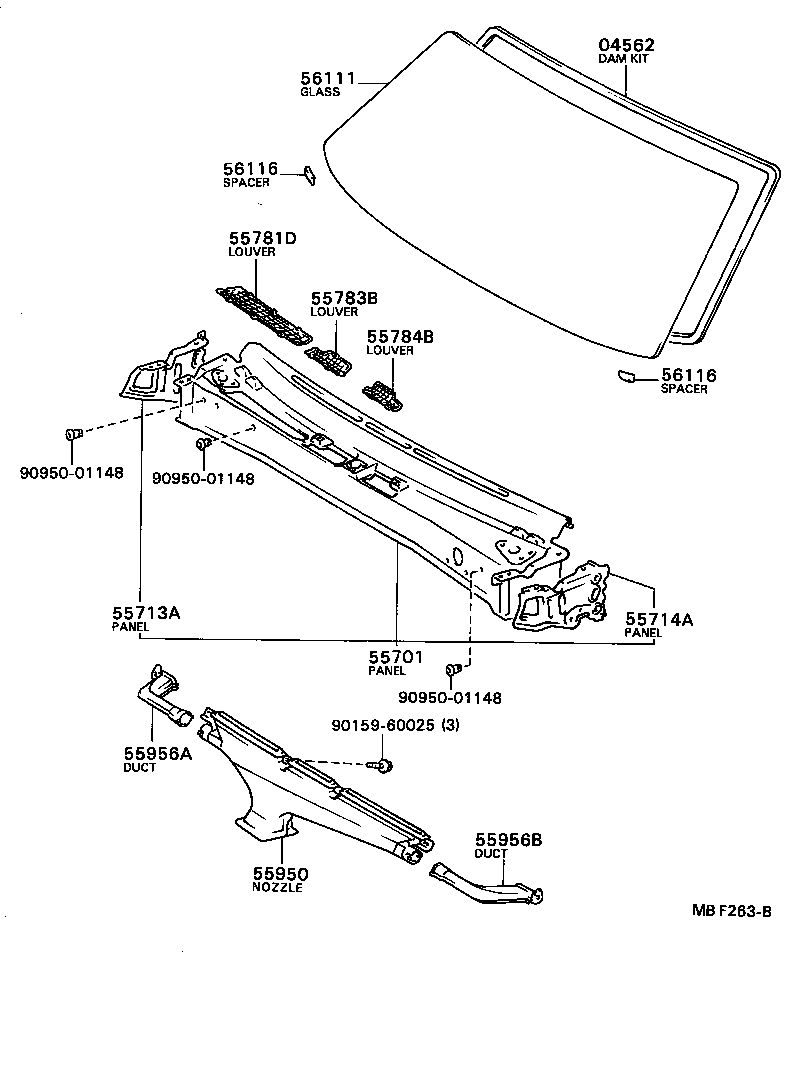

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
AE8#,CE80,EE80 |
1 | ||
| 04562-30030 |
AE8#,CE80 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-12270 |
AE80,81,EE80 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-12130 |
AE8#,CE80,EE80 |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-12190 |
AE8#,CE80,EE80 |
1 | ||
| 55783-12160 |
AE8#,CE80,EE80 |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-12030 |
AE8#,CE80,EE80 |
1 | ||
| 55784-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55970-12040 |
AE8#,CE80,EE80 |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55980-12030 |
AE8#,CE80,EE80 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-12670 |
AE81..DX *TL,T=4.7 |
1 | ||
| 56111-12600 |
AE8#,CE80,EE80 *TZT,T=5.0 |
1 | ||
| 56111-12670 |
AE81..DX W/KNOCK CONTROL,*TL,T=4.7 |
1 | ||
| 56111-12610 |
AE8#,CE80,EE80 *TL,T=5.3 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
AE8#,CE80,EE80 |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
AE8#,CE80,EE80 |
2 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90950-01148 | ||||
