AE81-FEKDS (1983)
Toyota Sprinter
(8305-8505)

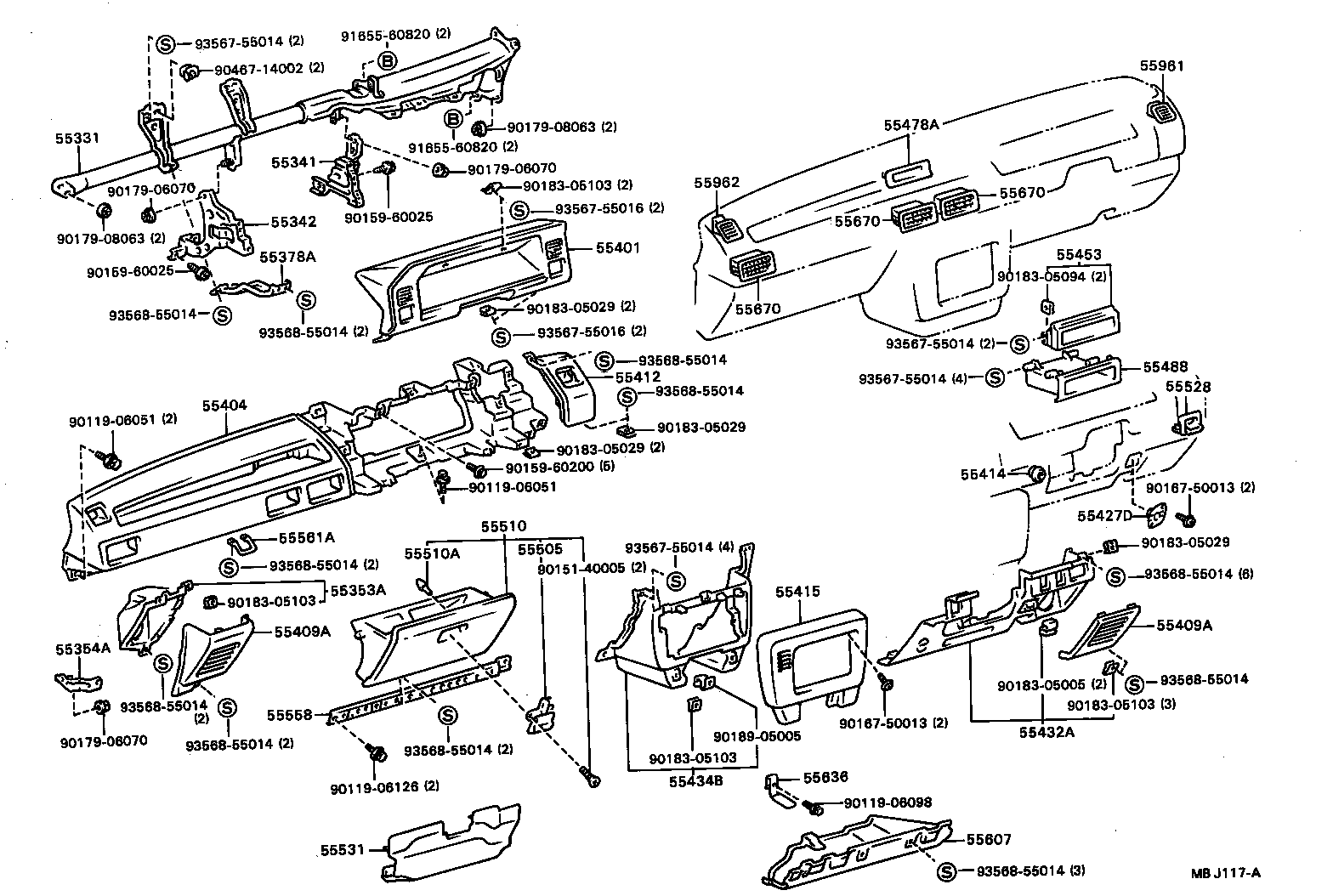

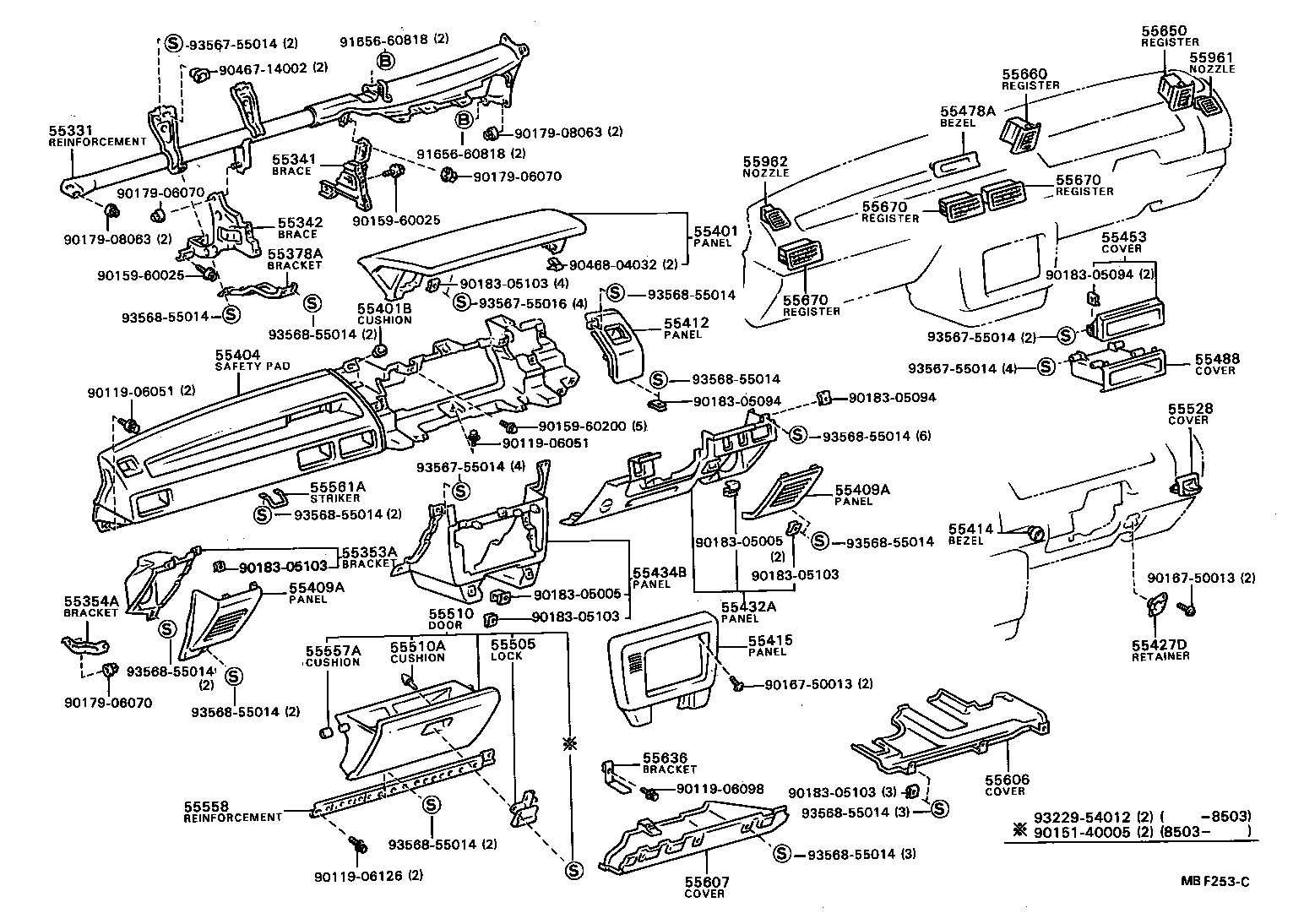

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12120 |
AE81..DX |
1 | ||
| 55330-12080 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX |
1 | ||
| 55330-12081 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX |
1 | ||
| 55330-12120 |
AE81..DX W/KNOCK CONTROL |
1 | ||
| 55330-12030 |
AE8#,CE80 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55351-12010 |
AE8#,CE80,EE80 |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12070 |
AE8#,CE80,EE80 |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-12020 |
AE8#,CE80,EE80 |
1 | ||
| 55354A - BRACKET, SPEAKER MOUNTING, NO.2 | ||||
| 55354-12020 |
AE8#,CE80,EE80 |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12080 |
AE8#,CE80,EE80 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-1253002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55404-1253004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1255003 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1255103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1255006 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1255104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1255004 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1255106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-16010 |
AE8#,CE80 |
2 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1214002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55401-1214003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1214006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1220103 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1220106 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1214004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1220104 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1202003 |
AE8#,CE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204003 |
AE8#,CE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55472-1202005 |
AE8#,CE80 RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1202013 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204005 |
AE8#,CE80 LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55473-1204006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55472-1202014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202004 |
AE8#,CE80 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204004 |
AE8#,CE80 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204013 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-1204002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1204014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1202003 |
AE8#,CE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204003 |
AE8#,CE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55472-1202005 |
AE8#,CE80 RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1202013 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204005 |
AE8#,CE80 LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55473-1204006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55472-1202014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202004 |
AE8#,CE80 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204004 |
AE8#,CE80 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204013 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-1204002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1204014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1206006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55414-1206002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55414-1206003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1206004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1209004 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1209006 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55414-1209003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-1224006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55412-1224003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55412-1224002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55412-1224004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55412-1224004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-1219014 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1219006 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1219005 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55432-1219002 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55432-1219003 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219013 |
AE80,81,CE80;AE82..GT,SR,SX W/O *TIS,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219004 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1219103 |
AE81,CE80,EE80 W/O *TIS,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219106 |
AE81,CE80,EE80 W/O *TIS,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1219104 |
AE81,CE80,EE80..DX,SPD,XL W/O *TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-1202004 |
AE8#,CE80 BLUE,BLUE,TRIM8# |
1 | ||
| 55434-1202013 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55434-1202014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55434-1202003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55434-1202005 |
AE8#,CE80 BEIGE,BEIGE,TRIM3# |
1 | ||
| 55434-1202006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55434-1202014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55434-1202002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
AE81..DX |
1 | ||
| 55522-32010 |
AE81..DX W/KNOCK CONTROL |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AE8#,CE80,EE80 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1206003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1206004 |
AE8#,CE80 BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206005 |
AE8#,CE80 BEIGE,BEIGE,TRIM3# |
1 | ||
| 55560-1206006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55560-1206012 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55560-1206013 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1206104 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206103 |
AE8#,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1206014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206104 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206106 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1221003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55550-1221013 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55550-1221002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55550-1221005 |
AE8#,CE80 BEIGE,BEIGE,TRIM3# |
1 | ||
| 55550-1221014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1221006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55550-1221014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1221004 |
AE8#,CE80 BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE8#,CE80,EE80 |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-12010 |
AE8#,CE80,EE80 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
AE8#,CE80 |
2 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-12020 |
AE8#,CE80,EE80 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE8#,CE80,EE80 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12100 |
AE8#,CE80 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12180 |
AE8#,CE80 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1207002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
3 | ||
| 55670-1207004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1207002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
3 | ||
| 55670-1207004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1207002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
3 | ||
| 55670-1207004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
3 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55093-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55093-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55093-1203004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55094-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55094-1203004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55094-1203004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06051 | ||||
| 90119-06098 | ||||
| 90119-06126 | ||||
| 90151-40005 | ||||
| 90159-60025 | ||||
| 90159-60200 | ||||
| 90167-50013 | ||||
| 90179-06070 | ||||
| 90179-08063 | ||||
| 90183-05005 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14002 | ||||
| 90468-04032 | ||||
| 91656-60818 | ||||
| 93229-54012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-12120 |
AE81..DX |
1 | ||
| 55330-12080 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX |
1 | ||
| 55330-12081 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX |
1 | ||
| 55330-12120 |
AE81..DX W/KNOCK CONTROL |
1 | ||
| 55330-12030 |
AE8#,CE80 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55351-12010 |
AE8#,CE80,EE80 |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12070 |
AE8#,CE80,EE80 |
1 | ||
| 55353A - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 55353-12020 |
AE8#,CE80,EE80 |
1 | ||
| 55354A - BRACKET, SPEAKER MOUNTING, NO.2 | ||||
| 55354-12020 |
AE8#,CE80,EE80 |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12080 |
AE8#,CE80,EE80 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-1253002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55404-1253004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1255003 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1255103 |
AE81,CE80,EE80..DX,SPD GRAY,GRAY,TRIM1# |
1 | ||
| 55404-1255006 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1255104 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1255004 |
AE81,CE80,EE80..DX,SPD BLUE,BLUE,TRIM8# |
1 | ||
| 55404-1255106 |
AE81,CE80,EE80..DX,SPD BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55404-1253003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1214002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55401-1214003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1214006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1220103 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55401-1220106 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1214004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1220104 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1202003 |
AE8#,CE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204003 |
AE8#,CE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55472-1202005 |
AE8#,CE80 RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1202013 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204005 |
AE8#,CE80 LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55473-1204006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55472-1202014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202004 |
AE8#,CE80 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204004 |
AE8#,CE80 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204013 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-1204002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1204014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-1202003 |
AE8#,CE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204003 |
AE8#,CE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202002 |
AE8#,CE80 RH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55472-1202005 |
AE8#,CE80 RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55472-1202013 |
AE8#,CE80,EE80 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55473-1204005 |
AE8#,CE80 LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55473-1204006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX LH,BROWN,BROWN,TRIM4# |
1 | ||
| 55472-1202014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202004 |
AE8#,CE80 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204004 |
AE8#,CE80 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204013 |
AE8#,CE80,EE80 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55472-1202006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX RH,BROWN,BROWN,TRIM4# |
1 | ||
| 55473-1204002 |
AE8#,CE80 LH,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55473-1204014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55473-1204014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55472-1202014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1206006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55414-1206002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55414-1206003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55414-1206004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1209004 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1209006 |
AE8#,CE80,EE80..DX,SE,SPD,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55414-1209003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12060 |
AE8#,CE80,EE80 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-1224006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55412-1224003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55412-1224002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55412-1224004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55412-1224004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-1219014 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1219006 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1219005 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BEIGE,BEIGE,TRIM3# |
1 | ||
| 55432-1219002 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55432-1219003 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219013 |
AE80,81,CE80;AE82..GT,SR,SX W/O *TIS,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219004 |
AE82..SR,SX;AE80,81,CE80 W/O *TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1219103 |
AE81,CE80,EE80 W/O *TIS,GRAY,GRAY,TRIM1# |
1 | ||
| 55432-1219106 |
AE81,CE80,EE80 W/O *TIS,BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1219104 |
AE81,CE80,EE80..DX,SPD,XL W/O *TIS,BLUE,BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-1202004 |
AE8#,CE80 BLUE,BLUE,TRIM8# |
1 | ||
| 55434-1202013 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55434-1202014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55434-1202003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55434-1202005 |
AE8#,CE80 BEIGE,BEIGE,TRIM3# |
1 | ||
| 55434-1202006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55434-1202014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55434-1202002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
AE81..DX |
1 | ||
| 55522-32010 |
AE81..DX W/KNOCK CONTROL |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AE8#,CE80,EE80 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1206003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1206004 |
AE8#,CE80 BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206005 |
AE8#,CE80 BEIGE,BEIGE,TRIM3# |
1 | ||
| 55560-1206006 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55560-1206012 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55560-1206013 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1206104 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206103 |
AE8#,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55560-1206014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206104 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55560-1206106 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1221003 |
AE8#,CE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55550-1221013 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55550-1221002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55550-1221005 |
AE8#,CE80 BEIGE,BEIGE,TRIM3# |
1 | ||
| 55550-1221014 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1221006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55550-1221014 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1221004 |
AE8#,CE80 BLUE,BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
AE8#,CE80,EE80 |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-12010 |
AE8#,CE80,EE80 |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55531-12100 |
AE8#,CE80,EE80 |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-12020 |
AE8#,CE80,EE80 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
AE8#,CE80,EE80 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1207002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
3 | ||
| 55670-1207004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1207002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
3 | ||
| 55670-1207004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
3 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1207002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
3 | ||
| 55670-1207006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
3 | ||
| 55670-1207004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
3 | ||
| 55670-1207003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
3 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55093-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55093-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55093-1203004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55093-1203006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55094-1203003 |
AE8#,CE80,EE80 GRAY,GRAY,TRIM1# |
1 | ||
| 55094-1203004 |
AE8#,CE80,EE80..DX,SPD,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203002 |
AE8#,CE80 MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55094-1203004 |
AE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 55094-1203006 |
AE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06051 | ||||
| 90119-06098 | ||||
| 90119-06126 | ||||
| 90151-40005 | ||||
| 90159-60025 | ||||
| 90159-60200 | ||||
| 90167-50013 | ||||
| 90179-06070 | ||||
| 90179-08063 | ||||
| 90183-05005 | ||||
| 90183-05029 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05005 | ||||
| 90467-14002 | ||||
| 91655-60820 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
