Toyota Sprinter AE81 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
SPRINTER
AE81-FEKDS (1983)
5201 - FRONT BUMPER & BUMPER STAY

AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987

Engine 3ALU

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8305-8505)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12340	AE8#,CE80,EE80	05/1985 - 04/1987	1
52011-12260	AE8#,CE80	05/1983 - 05/1985	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12350	AE8#,CE80,EE80	05/1985 - 04/1987	1
52012-12260	AE8#,CE80	05/1983 - 05/1985	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12180	AE8#,CE80	05/1983 - 05/1985	1
52115-12220	AE8#,CE80,EE80	05/1985 - 04/1987	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12150	AE8#,CE80	05/1983 - 05/1985	1
52116-12170	AE8#,CE80,EE80	05/1985 - 04/1987	1
52119A - COVER, FRONT BUMPER
52119-12200	AE8#,CE80 DEEP GRAY(8A8,8A9,8B1);DEEP GRAY(038,147,3C2,3D6,3D7);DEEP GRAY(4E1,557,558)	05/1983 - 01/1984	1
52119-12201	AE8#,CE80 BLACK(038,147,3D7,4E1,558);BLACK(8A8,8A9,8B1)	01/1984 - 08/1984	1
52119-12201	AE8#,CE80 BLACK(4E7,8A8,8A9);BLACK(041,147,3D7,4E1)	08/1984 - 05/1985	1
52119-12720	AE81,CE80,EE80..DX,SPD,XL BLACK	05/1985 - 04/1987	1
52119-1273005	AE81,CE80,EE80..DX RIVIERE SALOON,LIGHT BEIGE METALLIC,4D2	10/1985 - 05/1986	1
52119-1273008	AE81,CE80,EE80..DX RIVIERE SALOON,WHITE,041	10/1985 - 04/1987	1
52119-1273015	AE81,CE80,EE80..DX RIVIERE SALOON,LIGHT BEIGE METALLIC,4G8	05/1986 - 04/1987	1
52119-1273002	AE81,CE80,EE80..DX RIVIERE SALOON,RED,3E6	10/1985 - 04/1987	1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52565-12040	AE8#,CE80,EE80	05/1983 - 04/1987	4
Common parts
90109-08067
90119-06042
90119-12015
90159-60008
90179-05011
90179-06086
90189-06006
91651-40820
91665-40618

(8505- )

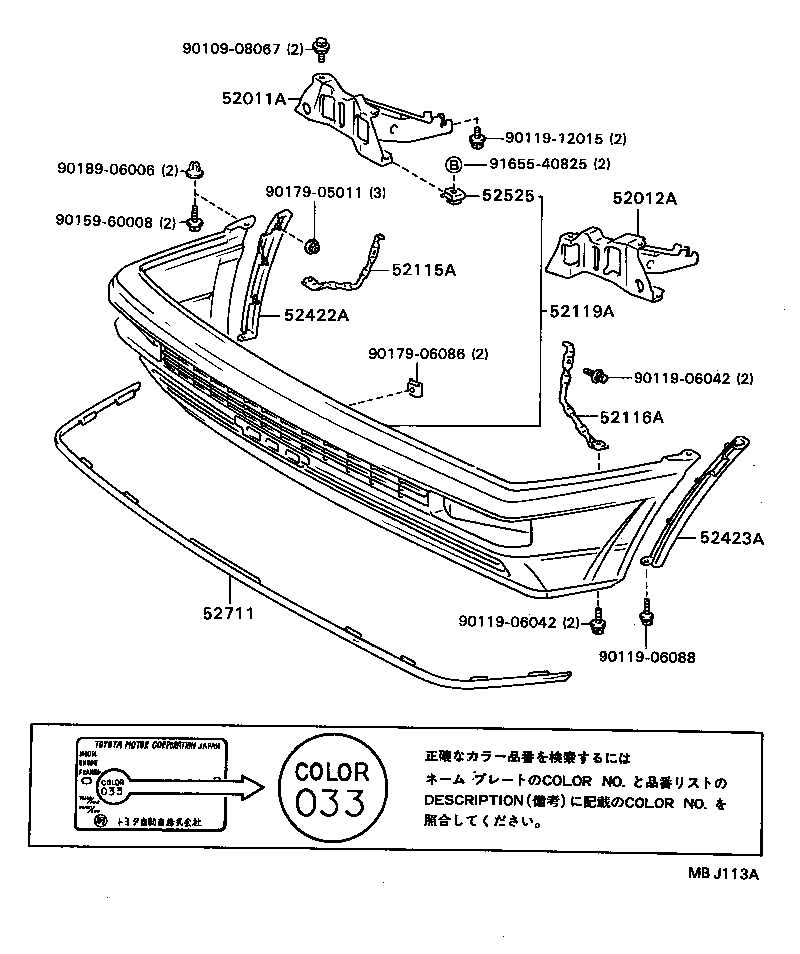

Click highlighted areas on diagram

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12340	AE8#,CE80,EE80	05/1985 - 04/1987	1
52011-12260	AE8#,CE80	05/1983 - 05/1985	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12350	AE8#,CE80,EE80	05/1985 - 04/1987	1
52012-12260	AE8#,CE80	05/1983 - 05/1985	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12180	AE8#,CE80	05/1983 - 05/1985	1
52115-12220	AE8#,CE80,EE80	05/1985 - 04/1987	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12150	AE8#,CE80	05/1983 - 05/1985	1
52116-12170	AE8#,CE80,EE80	05/1985 - 04/1987	1
52119A - COVER, FRONT BUMPER
52119-12200	AE8#,CE80 DEEP GRAY(8A8,8A9,8B1);DEEP GRAY(038,147,3C2,3D6,3D7);DEEP GRAY(4E1,557,558)	05/1983 - 01/1984	1
52119-12201	AE8#,CE80 BLACK(038,147,3D7,4E1,558);BLACK(8A8,8A9,8B1)	01/1984 - 08/1984	1
52119-12201	AE8#,CE80 BLACK(4E7,8A8,8A9);BLACK(041,147,3D7,4E1)	08/1984 - 05/1985	1
52119-12720	AE81,CE80,EE80..DX,SPD,XL BLACK	05/1985 - 04/1987	1
52119-1273005	AE81,CE80,EE80..DX RIVIERE SALOON,LIGHT BEIGE METALLIC,4D2	10/1985 - 05/1986	1
52119-1273008	AE81,CE80,EE80..DX RIVIERE SALOON,WHITE,041	10/1985 - 04/1987	1
52119-1273015	AE81,CE80,EE80..DX RIVIERE SALOON,LIGHT BEIGE METALLIC,4G8	05/1986 - 04/1987	1
52119-1273002	AE81,CE80,EE80..DX RIVIERE SALOON,RED,3E6	10/1985 - 04/1987	1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52565-12040	AE8#,CE80,EE80	05/1983 - 04/1987	4
52711 - MOULDING, FRONT BUMPER
52711-12030	AE81,CE80,EE80..DX,SPD,XL BLACK BUMPER	05/1985 - 04/1987	1
52711-12080	AE81,CE80,EE80..DX RIVIERE SALOON	10/1985 - 12/1985	1
Common parts
90109-08067
90119-06042
90119-06088
90119-12015
90159-60008
90179-05011
90179-06086
90189-06006
91655-40825
