AE81-FEKDS (1983)
Toyota Sprinter

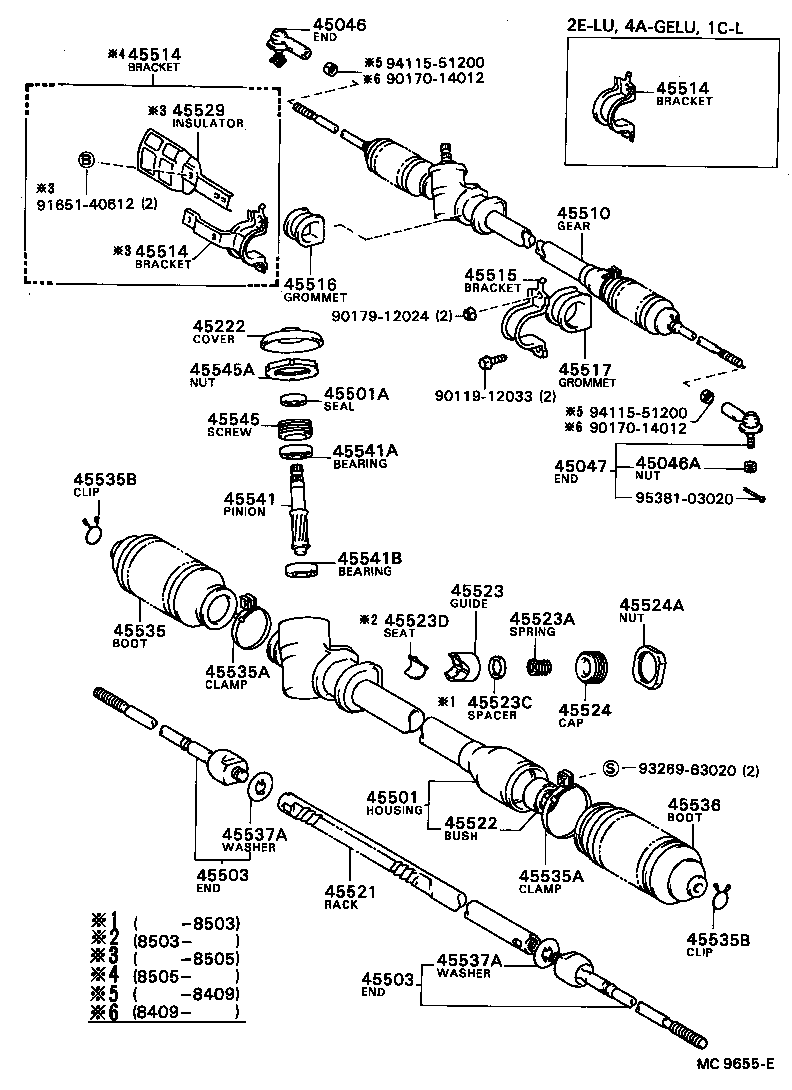

ILLUST NO. 1 OF 2(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AE8#,CE80 |
2 | ||
| 45046-19175 |
AE8#,CE80,EE80 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE8#,CE80,EE80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE8#,CE80,EE80 |
2 | ||
| 45046-29135 |
AE8#,CE80 |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
AE8#,CE80,EE80 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12090 |
AE8#,CE80,EE80 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AE8#,CE80,EE80 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19036 |
AE8#,CE80,EE80 |
2 | ||
| 45503-19035 |
AE8#,CE80 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19036 |
AE8#,CE80,EE80 |
2 | ||
| 45503-19035 |
AE8#,CE80 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12080 |
AE80,81..4D CONSTANT GEAR RATIO |
1 | ||
| 45510-12081 |
AE81,EE80..DX,SE,SPD,XL CONSTANT GEAR RATIO |
1 | ||
| 45510-12081 |
AE80,81..4D CONSTANT GEAR RATIO |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AE8#,CE80,EE80 |
1 | ||
| 45515-12070 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE8#,CE80,EE80 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12050 |
AE8#,CE80,EE80 |
1 | ||
| 45517-12060 |
AE8#..4D TOYOTA,W/POWER STEERING |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12110 |
AE81,EE80..DX,SE,SPD,XL |
1 | ||
| 45521-12110 |
AE80,81..4D CONSTANT GEAR RATIO |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10021 |
AE8#,CE80,EE80 |
1 | ||
| 45522-10030 |
AE8#,CE80 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-17012 |
AE8#,CE80,EE80 |
1 | ||
| 45523-16011 |
AE8#,CE80 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-28007 |
AE80,81..4D CONSTANT GEAR RATIO |
1 | ||
| 90501-28007 |
AE81,EE80..DX,SE,SPD,XL CONSTANT GEAR RATIO |
1 | ||
| 90501-23007 |
AE8#,CE80 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AE8#,CE80 |
1 | ||
| 45523D - SEAT, RACK GUIDE | ||||
| 44277-17010 |
AE8#,CE80,EE80 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12020 |
AE8#,CE80,EE80 |
1 | ||
| 45524-16010 |
AE8#,CE80 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AE8#,CE80,EE80 |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-12010 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE8#,CE80,EE80 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01082 |
AE8#,CE80,EE80 NO.2 |
1 | ||
| 90461-10273 |
AE8#,CE80,EE80 NO.1 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90949-01082 |
AE8#,CE80,EE80 NO.2 |
1 | ||
| 90461-10273 |
AE8#,CE80,EE80 NO.1 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12030 |
AE8#,CE80,EE80 |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE8#,CE80,EE80 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE8#,CE80,EE80 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12050 |
AE80,81..4D CONSTANT GEAR RATIO |
1 | ||
| 45541-12050 |
AE81,EE80..DX,SE,SPD,XL |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
AE8#,CE80,EE80 |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
AE8#,CE80,EE80 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AE8#,CE80,EE80 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||

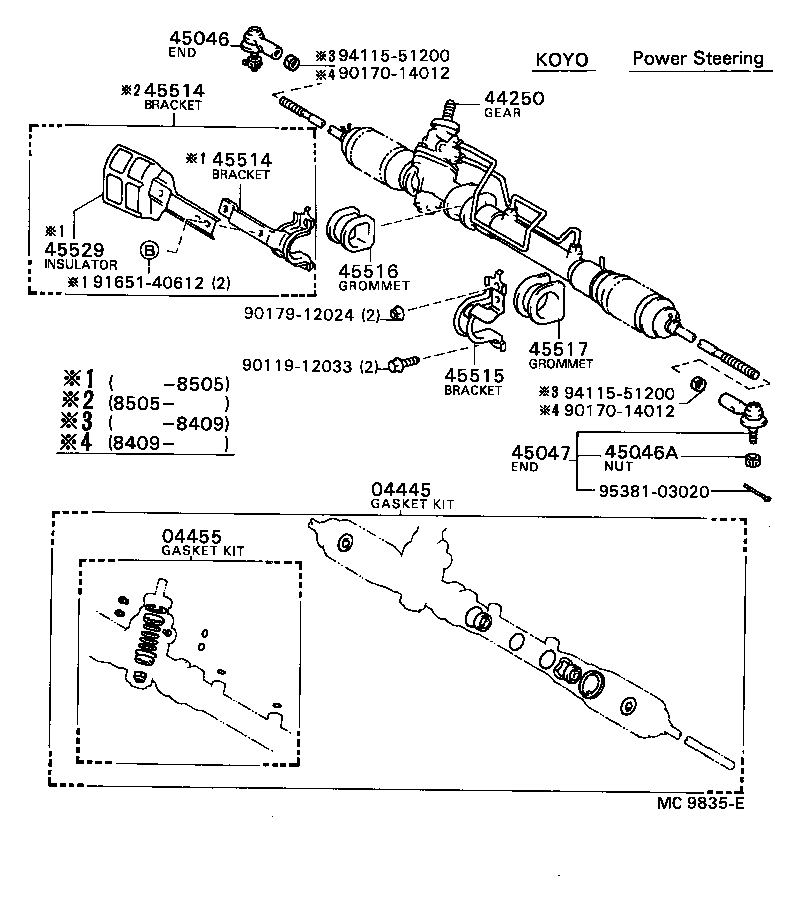

ILLUST NO. 1 OF 2(8305-8505)CE80..SE,SX,XL ; (8305-8505)AE8#..GT,SE,SR,XL ; (8505-8509)AE8#..4D ; (8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-12020 |
AE8#..4D TOYOTA |
1 | ||
| 04445-12030 |
AE81..4D KOYO |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-16010 |
AE81..4D KOYO |
1 | ||
| 04455-12010 |
AE8#..4D TOYOTA |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12031 |
AE8#..4D TOYOTA |
1 | ||
| 44250-12101 |
AE81..4D KOYO |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AE8#,CE80 |
2 | ||
| 45046-19175 |
AE8#,CE80,EE80 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE8#,CE80,EE80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE8#,CE80,EE80 |
2 | ||
| 45046-29135 |
AE8#,CE80 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AE8#,CE80,EE80 |
1 | ||
| 45515-12070 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE8#,CE80,EE80 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12050 |
AE8#,CE80,EE80 |
1 | ||
| 45517-12060 |
AE8#..4D TOYOTA,W/POWER STEERING |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-12010 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-40612 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||

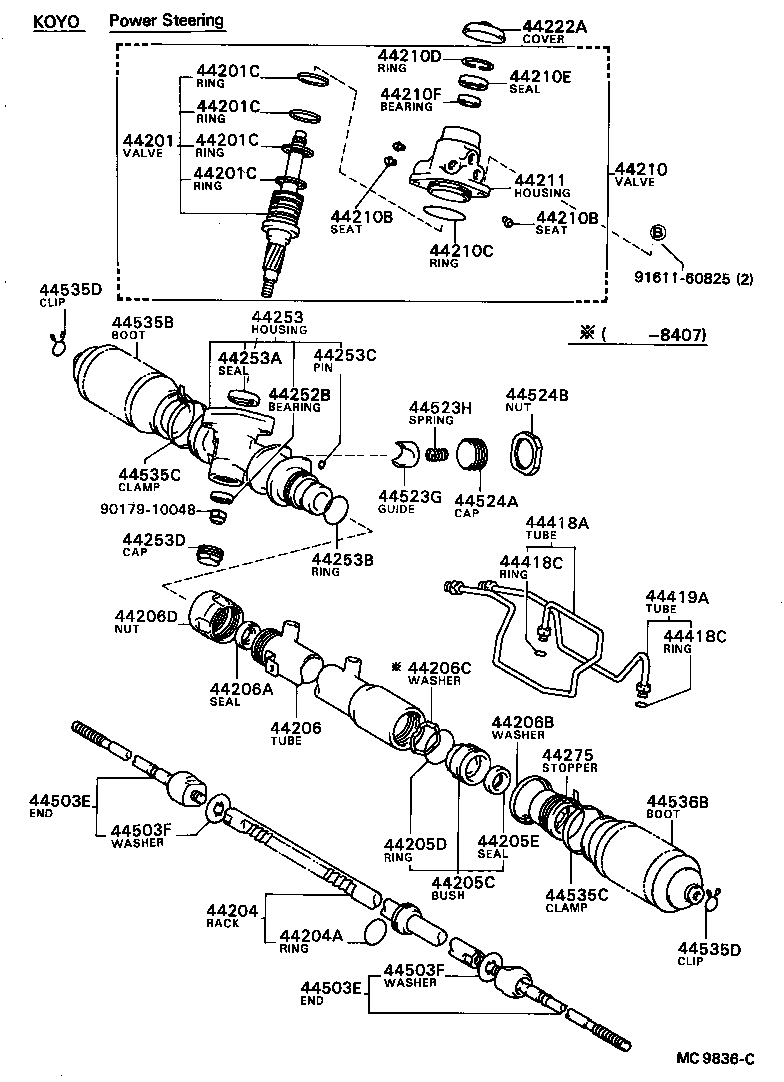

ILLUST NO. 2 OF 2(8305-8505)CE80..SE,SX,XL ; (8305-8505)AE8#..GT,SE,SR,XL ; (8505-8509)AE8#..4D ; (8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44201-12080 |
AE81..4D KOYO |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
AE8#..4D |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
AE8#..4D |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12070 |
AE81..4D KOYO |
1 | ||
| 44204-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
AE8#..4D OUTER,TOYOTA |
1 | ||
| 90301-33003 |
AE8#..4D INNER,TOYOTA |
1 | ||
| 90562-34002 |
AE81..4D KOYO |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
AE8#..4D OUTER,TOYOTA |
1 | ||
| 90301-33003 |
AE8#..4D INNER,TOYOTA |
1 | ||
| 90562-34002 |
AE81..4D KOYO |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24005 |
AE8#..4D |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24004 |
AE8#..4D |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
AE8#..4D |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25007 |
AE8#..4D |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12021 |
AE8#..4D TOYOTA |
1 | ||
| 45222-16020 |
AE81..4D KOYO |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12020 |
AE8#..4D |
1 | ||
| 44253D - CAP, POWER STEERING RACK HOUSING | ||||
| 44283-12010 |
AE8#..4D TOYOTA |
1 | ||
| 44283-16010 |
AE81..4D KOYO |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-06002 |
AE8#..4D PRESSURE FEED TUBE SIDE |
2 | ||
| 90410-05004 |
AE8#..4D AIR CONTROL VALVE SIDE |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-06002 |
AE8#..4D PRESSURE FEED TUBE SIDE |
2 | ||
| 90410-05004 |
AE8#..4D AIR CONTROL VALVE SIDE |
1 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
AE8#..4D |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23005 |
AE8#..4D |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90369-19005 |
AE8#..4D |
1 | ||
| 44253J - BEARING, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90363-12008 |
AE8#..4D |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-41003 |
AE8#..4D |
1 | ||
| 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) | ||||
| 90389-28001 |
AE8#..4D |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
AE8#..4D TOYOTA |
1 | ||
| 44275-16010 |
AE81..4D KOYO |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
AE8#..4D |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12020 |
AE8#..4D |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44418-12080 |
AE81..4D KOYO |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44419-12080 |
AE81..4D KOYO |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
AE8#..4D |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
AE8#..4D |
4 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-16040 |
AE81..4D KOYO |
1 | ||
| 45523-12020 |
AE8#..4D TOYOTA |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
AE8#..4D TOYOTA |
1 | ||
| 90501-26042 |
AE81..4D KOYO |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16030 |
AE81..4D KOYO |
1 | ||
| 45524-12010 |
AE8#..4D TOYOTA |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AE81..4D KOYO |
1 | ||
| 90179-33003 |
AE8#..4D TOYOTA |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-12040 |
AE8#..4D TOYOTA |
1 | ||
| 45535-16020 |
AE81..4D KOYO |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01027 |
AE81..4D KOYO |
2 | ||
| 90949-01081 |
AE8#..4D TOYOTA |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01027 |
AE81..4D KOYO |
2 | ||
| 90949-01081 |
AE8#..4D TOYOTA |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-12040 |
AE8#..4D TOYOTA |
1 | ||
| 45535-16020 |
AE81..4D KOYO |
1 | ||
| Common parts | ||||
| 93269-63020 | ||||
ILLUST NO. 1 OF 2(8305- )AE81,82..5D ; (8501-8503)AE80,81..SE,XL ; (8509- )AE81..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-12020 |
AE8#..4D TOYOTA |
1 | ||
| 04445-12030 |
AE81..4D KOYO |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-16010 |
AE81..4D KOYO |
1 | ||
| 04455-12010 |
AE8#..4D TOYOTA |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12031 |
AE8#..4D TOYOTA |
1 | ||
| 44250-12101 |
AE81..4D KOYO |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AE8#,CE80 |
2 | ||
| 45046-19175 |
AE8#,CE80,EE80 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE8#,CE80,EE80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AE8#,CE80,EE80 |
2 | ||
| 45046-29135 |
AE8#,CE80 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12050 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| 45505-12010 |
AE80,81;AE82..SR,SX,ZX |
1 | ||
| 45505-12010 |
AE8#..DX,SE,XL,ZX |
1 | ||
| 45505-12020 |
AE8#..DX,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AE8#,CE80,EE80 |
1 | ||
| 45515-12070 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE8#,CE80,EE80 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12050 |
AE8#,CE80,EE80 |
1 | ||
| 45517-12060 |
AE8#..4D TOYOTA,W/POWER STEERING |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-12010 |
AE8#..DX,SE,SPD,SR,SX,XL,ZX |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-40612 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(8305- )AE81,82..5D ; (8501-8503)AE80,81..SE,XL ; (8509- )AE81..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44201-12080 |
AE81..4D KOYO |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE8#..4D TOYOTA |
4 | ||
| 90562-33001 |
AE81..4D KOYO |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12070 |
AE81..4D KOYO |
1 | ||
| 44204-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
AE8#..4D OUTER,TOYOTA |
1 | ||
| 90301-33003 |
AE8#..4D INNER,TOYOTA |
1 | ||
| 90562-34002 |
AE81..4D KOYO |
1 | ||
| 44205C - BUSH SUB-ASSY, POWER STEERING RACK | ||||
| 44205-12041 |
AE81..4D |
1 | ||
| 44205D - RING, O(FOR POWER STEERING RACK BUSH) | ||||
| 90301-33004 |
AE81..4D |
1 | ||
| 44205E - SEAL, OIL(FOR POWER STEERING RACK BUSH) | ||||
| 90311-24005 |
AE81..4D |
1 | ||
| 44206 - TUBE SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44206-12060 |
AE81..4D |
1 | ||
| 44206A - SEAL, OIL(FOR POWER STEERING CYLINDER) | ||||
| 90311-24004 |
AE81..4D |
1 | ||
| 90311-24002 |
AE81..4D |
1 | ||
| 44206B - WASHER, CLAW(FOR POWER STEERING CYLINDER) | ||||
| 90214-47001 |
AE81..4D |
1 | ||
| 44206D - NUT(FOR POWER STEERING CYLINDER SET) | ||||
| 90179-45001 |
AE81..4D |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-12070 |
AE81..4D |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05006 |
AE81..4D AIR CONTROL VALVE SIDE |
1 | ||
| 90410-07003 |
AE81..4D PRESSURE FEED TUBE SIDE |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05006 |
AE81..4D AIR CONTROL VALVE SIDE |
1 | ||
| 90410-07003 |
AE81..4D PRESSURE FEED TUBE SIDE |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-42001 |
AE81..4D |
1 | ||
| 44210D - RING, HOLE SNAP(FOR POWER STEERING CONTROL VALVE) | ||||
| 96151-03200 |
AE81..4D |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19005 |
AE81..4D |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90364-19005 |
AE81..4D |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-12070 |
AE81..4D |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12021 |
AE8#..4D TOYOTA |
1 | ||
| 45222-16020 |
AE81..4D KOYO |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-12006 |
AE81..4D |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-12090 |
AE81..4D |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23004 |
AE81..4D |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-33004 |
AE81..4D |
1 | ||
| 44253C - PIN(FOR POWER STEERING RACK HOUSING) | ||||
| 90256-04002 |
AE81..4D |
1 | ||
| 44253D - CAP, POWER STEERING RACK HOUSING | ||||
| 44283-12010 |
AE8#..4D TOYOTA |
1 | ||
| 44283-16010 |
AE81..4D KOYO |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
AE8#..4D TOYOTA |
1 | ||
| 44275-16010 |
AE81..4D KOYO |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44418-12080 |
AE81..4D KOYO |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-05005 |
AE81..4D |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-05005 |
AE81..4D |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12030 |
AE8#..4D TOYOTA |
1 | ||
| 44419-12080 |
AE81..4D KOYO |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-16040 |
AE81..4D KOYO |
1 | ||
| 45523-12020 |
AE8#..4D TOYOTA |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
AE8#..4D TOYOTA |
1 | ||
| 90501-26042 |
AE81..4D KOYO |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16030 |
AE81..4D KOYO |
1 | ||
| 45524-12010 |
AE8#..4D TOYOTA |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AE81..4D KOYO |
1 | ||
| 90179-33003 |
AE8#..4D TOYOTA |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-12040 |
AE8#..4D TOYOTA |
1 | ||
| 45535-16020 |
AE81..4D KOYO |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01027 |
AE81..4D KOYO |
2 | ||
| 90949-01081 |
AE8#..4D TOYOTA |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01027 |
AE81..4D KOYO |
2 | ||
| 90949-01081 |
AE8#..4D TOYOTA |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80..DX,GT,SE,XL,ZX |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-12040 |
AE8#..4D TOYOTA |
1 | ||
| 45535-16020 |
AE81..4D KOYO |
1 | ||
| Common parts | ||||
| 90179-10048 | ||||
| 91611-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
