AE81-FEKDS (1983)
Toyota Sprinter
(8305-8401)2ALU ; (8305-8401)3ALU..SE,SX,XL,ZX ;(8401- )2ALU,3ALU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27060-63040 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-15150 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27412-45070 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-63050 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27310-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27310-63051 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27412-16040 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10141 |
3ALU..AE81..DX 12V 55A,OD=42 |
1 | ||
| 90099-10152 |
3ALU..AE81..DX 12V 55A,OD=43 |
1 | ||
| 90099-10159 |
3ALU..AE81..DX 12V 55A,OD=46 |
1 | ||
| 90099-10142 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 90099-10152 |
3ALU..AE81..DX 12V 55A,OD=43 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27330-63041 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27330-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27330-10020 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 90099-10116 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27357-15022 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-63041 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27359-63010 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27359-63040 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15022 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
3ALU..AE81..DX 12V 55A |
2 | ||
| 27371-31011 |
2ALU,3ALU..AE80,81 12V 50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
3ALU..AE81..DX 12V 55A |
2 | ||
| 27372-31011 |
2ALU,3ALU..AE80,81 12V 50A |
2 | ||
| 27372-63020 |
3ALU..AE81..DX 12V 55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-63081 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27411-63080 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27411-72010 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27411-15150 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-15150 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15050 |
2ALU,3ALU,1CL..AE80,81,CE80 COLD SPEC |
1 | ||
| 27700-63021 |
3ALU..AE81..DX IC REGULATOR |
1 | ||
| 27700-15030 |
3ALU..AE81 |
1 | ||
| 27700-15030 |
2ALU,3ALU,1CL..AE80,81,CE80 |
1 | ||
| 27700-15050 |
3ALU..AE81 COLD SPEC |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05195 | ||||
| 90099-05221 | ||||
| 90101-10093 | ||||
| 90101-10480 | ||||
| 90170-10082 | ||||
| 90179-06158 | ||||
| 91611-60840 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1603 | ||||

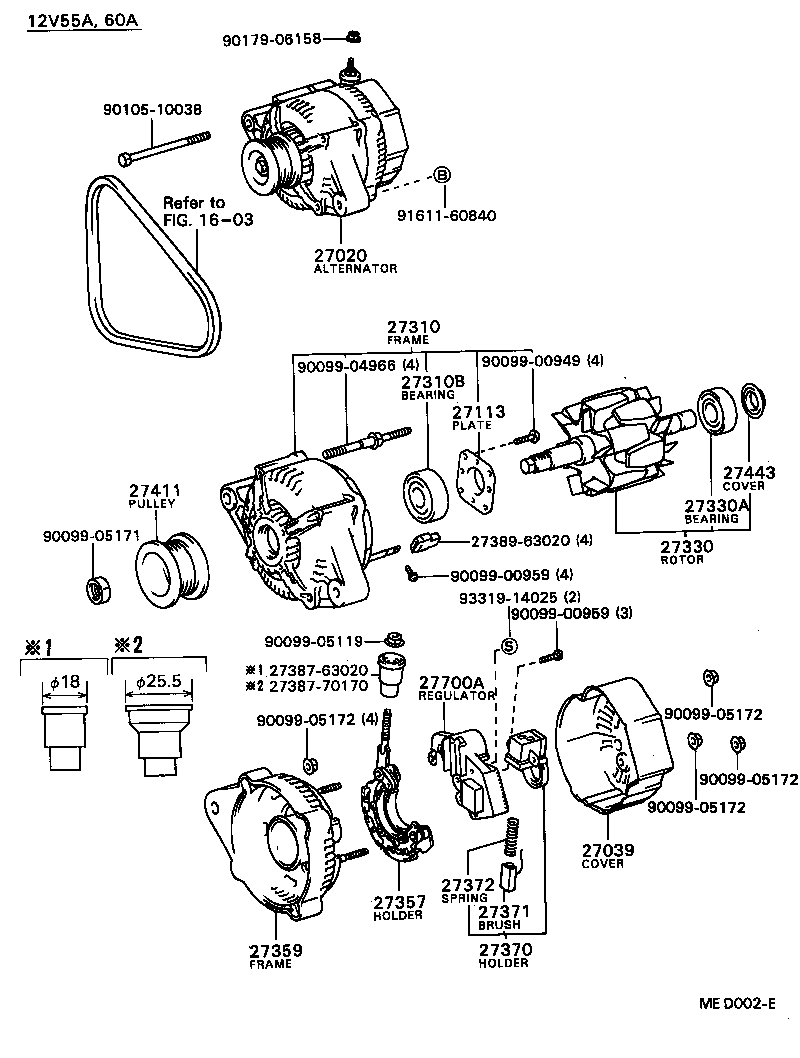

(8305-8505)3ALU..DX ; (8305- )4AELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27060-63040 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-63040 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-63020 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27312-72100 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-63050 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27310-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27310-63051 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10141 |
3ALU..AE81..DX 12V 55A,OD=42 |
1 | ||
| 90099-10152 |
3ALU..AE81..DX 12V 55A,OD=43 |
1 | ||
| 90099-10159 |
3ALU..AE81..DX 12V 55A,OD=46 |
1 | ||
| 90099-10142 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 90099-10152 |
3ALU..AE81..DX 12V 55A,OD=43 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27330-63041 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27330-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27330-10020 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27330-63041 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27330-16030 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27330-10020 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27357-15022 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-63041 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27359-63010 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27359-63040 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63020 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27370-72100 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27370-63021 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
3ALU..AE81..DX 12V 55A |
2 | ||
| 27371-31011 |
2ALU,3ALU..AE80,81 12V 50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
3ALU..AE81..DX 12V 55A |
2 | ||
| 27372-31011 |
2ALU,3ALU..AE80,81 12V 50A |
2 | ||
| 27372-63020 |
3ALU..AE81..DX 12V 55A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-63081 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27411-63080 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27411-72010 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27411-15150 |
2ALU,3ALU..AE80,81 12V 50A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3ALU..AE81..DX 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15050 |
2ALU,3ALU,1CL..AE80,81,CE80 COLD SPEC |
1 | ||
| 27700-63021 |
3ALU..AE81..DX IC REGULATOR |
1 | ||
| 27700-15030 |
3ALU..AE81 |
1 | ||
| 27700-15030 |
2ALU,3ALU,1CL..AE80,81,CE80 |
1 | ||
| 27700-15050 |
3ALU..AE81 COLD SPEC |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10038 | ||||
| 90179-06158 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
