AE81-FEKDS (1983)

Toyota Sprinter

Production May 1983 - Apr 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

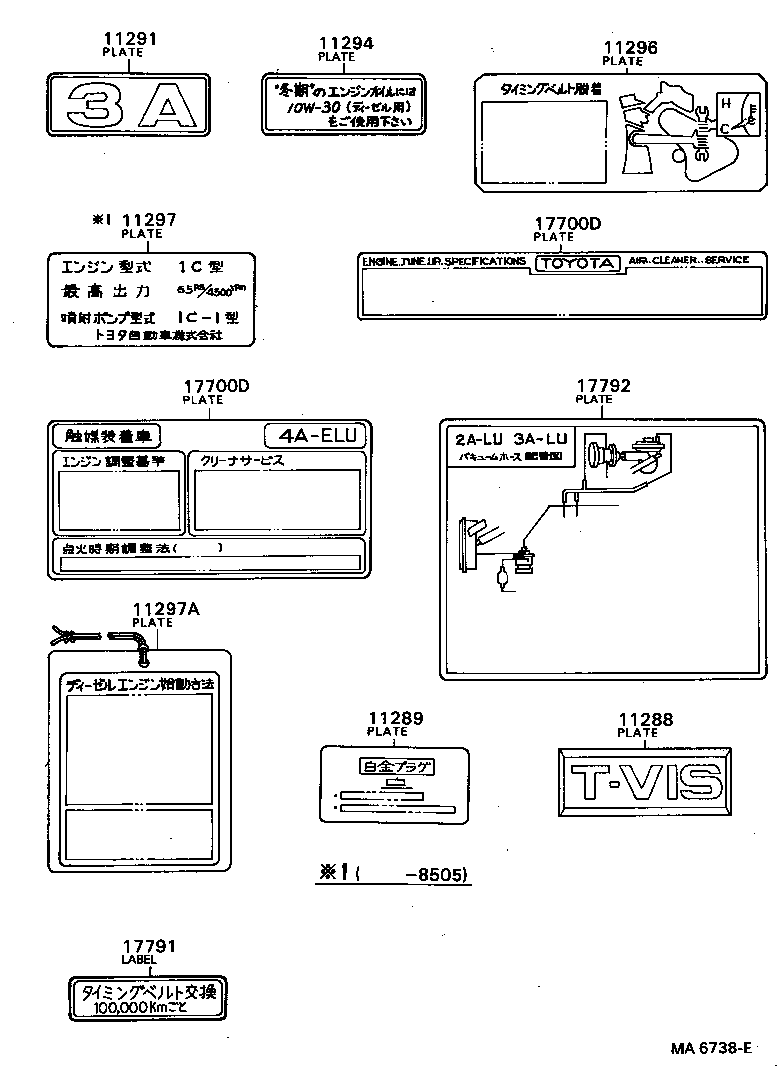

Click highlighted areas on diagram

diagram 11288 11289 11291 11294 11296 11297 11297A 17700D 17700D 17791 17792
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-15080

3ALU..AE81

3A

 1
11291-15100

3ALU..AE81

3A SCV

 1
17700D - PLATE, ENGINE CAUTION
11293-15120

2ALU,3ALU..AE80,81

 1
11293-15190

3ALU..AE81

 1
17700D - PLATE, ENGINE CAUTION
11293-15120

2ALU,3ALU..AE80,81

 1
11293-15190

3ALU..AE81

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-15270

3ALU..AE81

 1
17792-15231

2ALU,3ALU..AE80,81

 1
17792-15271

3ALU..AE81

 1
17792-15230

2ALU,3ALU..AE80,81

 1
